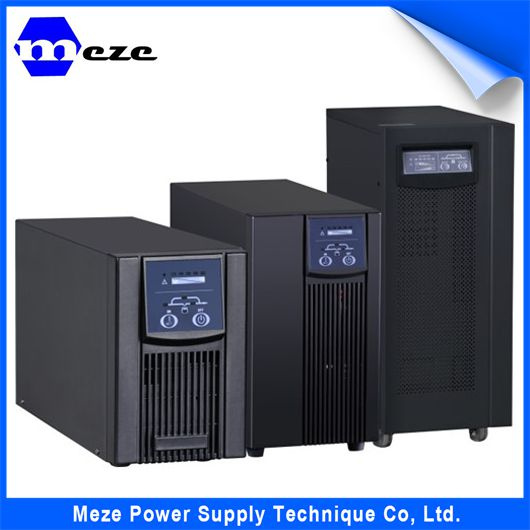

New Fastionv1k-20k High Frequeency UPS Power
| Price: |
US $ 1200-2300piece |
| Trade Terms: |
FOB |
| Min Order: |
1piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
MZC10K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power Factor: |
0.8 |
| Dimension: |
240X500X460 |
| Weight: |
63 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage Short Circuit Overcurrent |
| Brand: |
Meze |
| Application: |
School, Hospital, Factory, Bank |
Product Description
New fastionv1K-20k high frequeency UPS power
| Model MZT | C10KS | C10K | 3C10KS | 3C15KS | 3C20KS |
| capacity | 8000W | 8000W | 12000W | 16000W |
| impot | voltage | 176~276VAC 1P2W+G | 304~478VAC 3P4W+G |
| current | 55A(max) | 55A(max) | 86A(max) | 112A(max) |
| frequency | 50HZ±5% |
| power factor | EN60555-(≥0.95) |
| output | voltage | 220VAC/230VAC±5%1P2W+G | 220VAC/230VAC±1%1P2W+G |
| frequency | 50HZ±5% |
| current | 45A | 45A | 68A | 91A |
| load power factor | 0.8lag |
| waveform | shine wave |
| waveform distortion | Linear load<3%;nonlinear load<5% |
| battery status:>105% |
| overload protection | Ten minutes into the bypass |
| transfer time | Zero interrupt |
| Battery Type | Sealed maintenance-free lead-acid batteries |
| An external battery nominal voltage | 192VDC | Built-in battery | 192VDC | 192VDC | 192VDC |
| environment | Operating temperature | 0-40ºC |
| Relative humidity | 0-90% |
| altitude | <1500m |
| Communication interface | 9pin D type connector(Rs232) |
| dimension(W+D+H) | 240*500*460 | 248x500x616 |
| Weight(kg) | 20 | 63 | 27 | 35 | 37 |
Main characteristics:
Intelligent digital, higher reliability
Multifunctional design, safety is better
Adopting high precision SMD technology, precision is higher
Using cluster information processing technology, management more convenient
Environmental design, can be integrated with the user environment more friendly
Based on the theory of life cycle assessment precision, more energy efficient
Microcomputer control
Innovative software program control mode, optimize the UPS real-time control function, hardware cir cuit is
simple and high reliability.
To support software system
Ms-dos, WINDOWS 95, WINDOWS XP, WINDOWS Nt, etc.
RS232 Communication interface
Through RS232 digital communication interf ace with random monitoring software, users can monitor th e
power supply and UPS situation directly from a computer screen, greatly simplifies the network mana gement,
and effectively improve the reliability of computer systems.
Remote monitoring function
UPS Equipped with SNMP slot, in order to expand UPS remote monitoring function. Automatic signal sent by
E-mail,Automatic to transmit warning pager way;Can be UPS via TCP/IP or Internet network remote mon itoring,
automatic switch machine, real-time state of power supply condition analysis, monitoring, UPS, UPS self
diagnostic test execution, automatic storage historical archives..
Boot from the diagnosis f unction
Power on and boot, UPS star ted work of key circuit, inverter, batter y and load, etc.) to Chad, easy to find
problems in time, avoid any loss.
Enter zero wire detection function
In order to avoid UPS mains input zero firewire reverse connect, 1 ~ 3 kva machine has zero firewir e reverse
detection function.
Cold star t function
Unique direct current (DC) switched on, can be directly with the battery pack start when mains inte rruption
UPS, UPS emergency function into full play.
C / 3 C series process, changed the traditional plug-i n circuit board using high precision SMD technology,
save a space, and eliminate the traditional UPS in the circuit feet, to facilitate the saf e runningof the integrated
circuit, high reliability and precision is doubled.
Mature SMD technology can reduce all kinds of high frequency signals produced by the chip itself to the
interference of other chips, allowing each chip module can work properly without interference, anti -interference
is greatly improved.
Due to the SMD technology, lower power consumption, high accuracy, filtering performance is very good,
the machine performance is more stable, more durable, service life is greatly increased.
C / 3 C series USES the cluster information processing technology, will be clear at a glance the co ntrol panel
of UPS operation condition and load condition, the condition of batter y clearly displayed in the pa nel, allow
the user to hold UPS power supply quality and changes in the environment of application.
High input power factor and cleaner energy
Power input end with power factor correction (PFC) technology makes the input power factor > 0.95, eliminate
the UPS mains power grid pollution.
Quieter, more environmentally friendly
Panel on the alarm sound attenuation function keys, may avoid unnecessar y alarm, sharp battery low voltage,
alarm recovery.
Life cycle assessment of the science, C / 3 C series adopt the anti-aging performance of touch scre en panel and
chassis appearance treated by fluorine carbon technology, environment al protection, durable, is like new.
Using new turbo fan, cooling per formance, high energy saving;
Adopting circulation control circuit, power saving per formance good;
USES the advanced digital circuit and high precision SMD technology, the whole machine lif e extended by 80%
year-on-year.
The flow char t of the system
1. Welcome your enquiryContact me :leon liang Mob:+86 18824648626
Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).
Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
