| Prod Model: |
TK103A |
| GPS Accuracy: |
5m |
| GPS Sensitivity: |
-159dBm |
| GPS Chip: |
Sirf3 Chip |
| Band: |
850/900/1800/1900MHz |
| Warranty: |
1 Year GPS Tracking System |
| Network: |
GSM/GPRS Vehicle Tracker |
| Cert: |
Ce, FCC |
| Applied Area: |
Vehicle, Car GPS Tracker |
| Features: |
Geo-Fence, Overspeed, Movement, Acc Alarm Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Port Number: |
20 |
| Model: |
Vehicle Tracking GPS103A |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

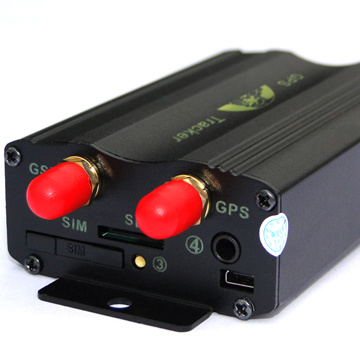

New GPS car locator gps tracker tk 103A tracking system with external GSM/GPS antenna
Main Function
1. Auto track upon times/time/distance interval
2. Get physical location in real street/address name
3. Remote engine-stop and resume
4. GPS drift suppression
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. SOS
18. Check the vehicle status
19. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
20. Tracking Solution:
SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
Get absolute address by SMS
Web server online tracking www.gpstrackerxy.com
Mobile App (IOS& Android)
Specification
| DIM. | 54*62*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom300d or Simcom340d |
| GPS Chip | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Warranty | 12 months Warranty |
Shipping
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea are possible.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Our Services
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
4.We offer one year free trial time on our tracking platform www.gpstrackerxy.com.
Welcom to your any inquiry! We are here for you 24 hours~~
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
