| Prod Model: |
F21 Series |
| Speed: |
Single Speed or Double |
| Shell: |
Fiberglass |
| Control Distance: |
Within 100m |
| Dimension: |
13.0*4.5*2.2cm |
| Series: |
F21 |
| Application: |
Audio / Video Players |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
ISO9001 |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
Product Description
Features
• 2~6 commands (Pocket size transmitter : F21-2S/D)
• Low cost for electronic chain hoist/monorail
• Low power consumption transmitter. 2 AA batteries last up to 4 months
• Extra shock resistant relay specially for mobile devices(DC model only)
• Over 4.3 billions unique ID code available.
• Temperature range -35°C ~ +85°C
• Enclosure protection class IP 65
• Microsoft Windows based software for easy customize configuration
• Structure : Glass-Fiber
Transmitter
Dimension:
• 130 x 45 x 22 mm ( F21-2S/D model)
• 156 x 61 x 51 mm ( F21-4S/D model)
• 164 x 75 x 46 mm ( F21-4SB model)
• 156 x 61 x 51 mm ( F21-E1model)
• 164 x 75 x 46 mm ( F21-E1B model)
Receiver
• Dimension: 185x85x85mm
• Weight: 550g (w/o wire cable)
• Receiver Power Supply: 24/48/110/220/380 VAC
&12/24V DC
Weight :
• Approx. 120~380g (without batteries)

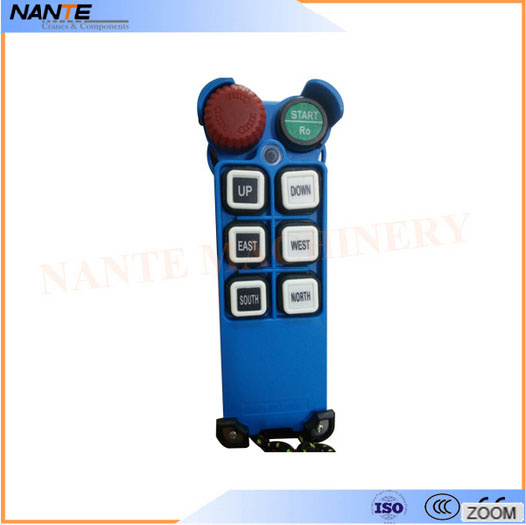

EG:F21-E1B
·8 single speed buttons, "stop" button
·with battery voltage warning device, the power supply is cut off during low power.
·Program the button function by computer interface.
·Up/down, east/west, south/north can be programmed to interlock or non-interlock.
·The spare button can be programmed to start, toggle or normal, etc.

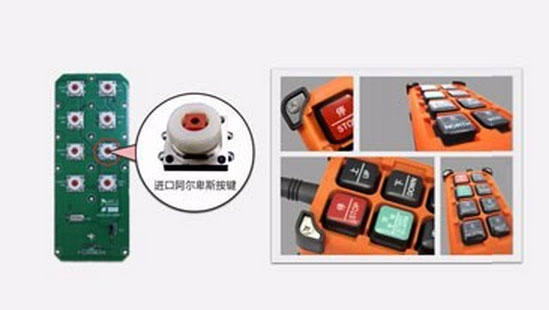

Detailed Images
Name: F21-E1B
Brand: TELEcontrol(UTING)
Original: Zhejiang, China (Mainland)
Name: F21-E1B
Brand: TELEcontrol(UTING)
Original: Zhejiang, China (Mainland)

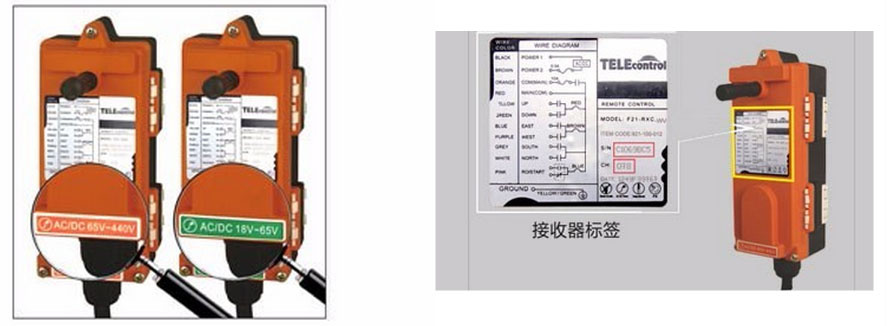

Have a high pressure version (left) receiver according to the voltage grade, low voltage version (right) to choose from
Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . Ltd. Zhongjian was founded in 1994. After nearly two decades' sound and rapid development, we have grown into one of China's leading heavy machinery cranes and crane components manufacturers. We covers an area of more than 100, 000 square meters, and above 500 experienced employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices. In recent years, our annual revenue has steadily exceeded 20 million USD, in which a 20% contribution is from foreign trading. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.
As a mature crane components manufacture, we not only produce normal crane components, but also deliver an end-to-end solution to crane projects.
We have more than 100models of products
1. From wheel, whell sets to wheel block and end carriage
Open geared type to Hollow shaft model
110mm wheel to 700mm diameter
2. From Lowhead room electirc hoist to chain hoist
3. From Enclosed conductor rail to unipole insulated conductor
HFP56, HFP52(AKAPP model), HFP95(max. 10poles), NSP(max. 1250ampers)
4. From C track festoon system to beam trolley, wire rope trolley to angle steel trolley
5. From Crane cabin to electric panel
6. From industrial remote control to pendant control
7. From limited switch to overload device
As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:
1. Series of construction cranes
Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.
2. Series of workshop, shipyard, and port cranes
Overhead crane, gantry crane, jib crane and portal crane etc.
3. Various parts of cranes
Electric hoist, winch, motors, rails, bus bars etc.
4. Structural steel projects
Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc
5. Steel Bailey bridges
Two standard models called Compact 100 and 200 in International market
Quality concept lies deeply in our blood. We are awarded Class-A license of specialized equipment manufacturing and repairing officially by China's State Administration of Quality Supervision, Inspection and Quarantine. All of our deliverables have been certified against ISO9001-2008 quality management system.
Fact is always more persuading than paper works. The quality of our products and services has been testified by their successful implementations in a number of key national construction projects, to name some of them: Hangzhou bay Bridge, Jiubao Bridge, Shanghai-hangzhou high-speed railway, Shenzhen-Guangzhou highway, etc.
We pursue the value of innovation, quality, efficiency and excellence in our company's long term development strategy. We target to become one of China's top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
