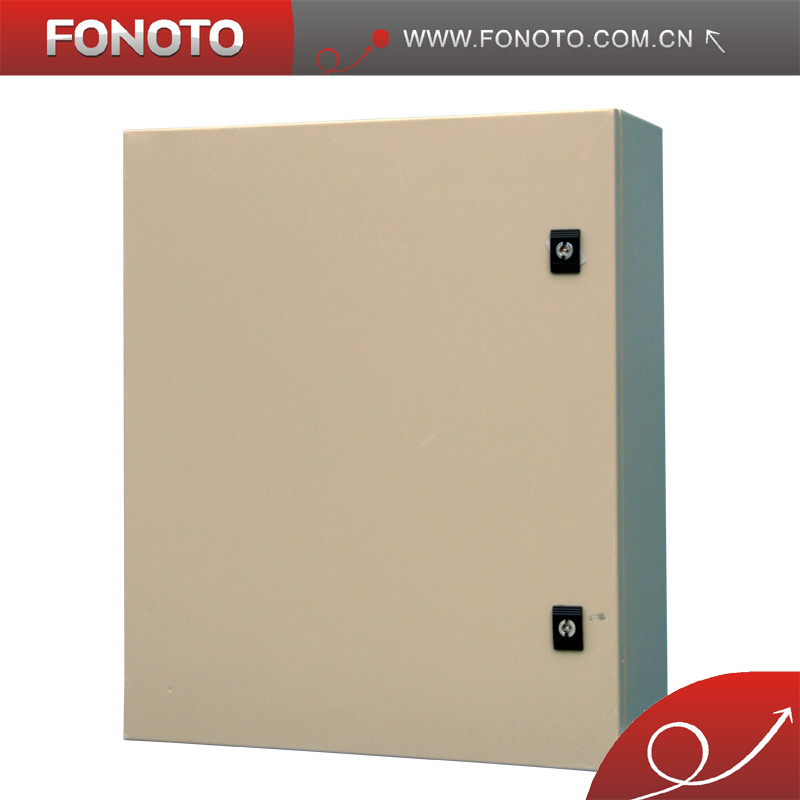

New Jff Metal Distribution Box

New Jff Metal Distribution Box
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JXF-605020
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ourtdoor Or Indoor Use: Metal Power Distribution Cabinet
Type: Power
Structure: Protection

Product Description

New JXF/JFF Metal distribution box
JXF JFF Enclosure


Model No.:  JXF-605020
Mouting type:  surface
Packaging Detail: Standard export carton, then put into Pallet
Delivery Detail: According to the order's quantity.

Specifications
1. single and three phase
2. cold roll sheet steel or stainless steel
3. indoor/outdoor usage
4.2 years warranty.

Feature:
1. single and three phase
2. cold roll sheet steel or stainless steel
3. indoor/outdoor usage
4.2 years warranty.



Specification and Technical:
industrial distribution box
Metal Enclosures,Distribution Box Features:
1) Vast range of sizes
2) Body and door made of 1.2 / 1.5 / 2.0mm sheet steel
3) Flat mounting plate made of 1.2 / 1.5 / 2.0mm sheet steel
4) Textured powder coated finish (RAL 7032)
5) Protection degree can be up to IP 65
6) The box can be completed with 2 zinc passivated hinges to be fixed on the
door, mounting plate, and gland plate
7) Packed with hardware for earth connection and screws to mount all
components
8) Locking system with bar key


Others:
1.brand: FONOTO, OEM, ODM services.
2, certificates: ISO9001, CCC, CE
3. export standard packing.
4. can design for customers' sizes and appearance.
5. Port: Ningbo, Shanghai etc.
6. Minimum Order Quantity: 100PCS
7. Supply Ability: 10000PCS per Month
8. Payment Terms: L/C,T/T,Western Union.
9. Price Terms: FOB, CFR, CIF.

Normal Specifications of JXF/JFF Metal distribution boxs:


Model H W D thickness
mm mm mm Door/mm Body/mm M.P/mm
JXF2215 200 200 150 1.2 1.2 2
JXF2515 250 200 150 1.2 1.2 2
JXF2315 300 200 150 1.2 1.2 2
JXF2320 300 200 200 1.2 1.2 2
JXF25320 300 250 200 1.2 1.2 2
JXF3315 300 300 150 1.2 1.2 2
JXF3320 300 300 200 1.2 1.2 2
JXF3325 300 300 250 1.2 1.2 2
JXF3415 400 300 150 1.2 1.2 2
JXF3420 400 300 200 1.2 1.2 2
JXF3425 400 300 250 1.2 1.2 2
JXF4415 400 400 150 1.2 1.2 2
JXF4420 400 400 200 1.2 1.2 2
JXF4425 400 400 250 1.2 1.2 2
JXF3515 500 300 150 1.2 1.2 2
JXF3520 500 300 200 1.2 1.2 2
JXF3530 500 300 300 1.2 1.2 2
JXF4515 500 400 150 1.2 1.2 2
JXF4520 500 400 200 1.2 1.2 2
JXF4525 500 400 250 1.2 1.2 2
JXF4530 500 400 300 1.2 1.2 2
JXF5515 500 500 150 1.2 1.2 2
JXF5520 500 500 200 1.2 1.2 2
JXF5525 500 500 250 1.2 1.2 2
JXF4615 600 400 150 1.2 1.2 2
JXF4620 600 400 200 1.2 1.2 2
JXF4625 600 400 250 1.2 1.2 2
JXF4630 600 400 300 1.2 1.2 2
JXF5615 600 500 150 1.2 1.2 2
JXF5620 600 500 200 1.2 1.2 2
JXF5625 600 500 250 1.2 1.2 2
JXF5630 600 500 300 1.2 1.2 2
JXF6615 600 600 150 1.2 1.2 2
JXF6620 600 600 200 1.2 1.2 2
JXF6625 600 600 250 1.2 1.2 2
JXF4720 700 400 200 1.2 1.2 2
JXF4730 700 400 300 1.2 1.2 2
JXF5715 700 500 150 1.2 1.2 2
JXF5720 700 500 200 1.2 1.2 2
JXF5725 700 500 250 1.2 1.2 2
JXF6720 700 600 200 1.2 1.2 2
JXF6725 700 600 250 1.2 1.2 2
JXF6820 800 600 200 1.5 1.5 2
JXF6825 800 600 250 1.5 1.5 2
JXF6830 800 600 300 1.5 1.5 2
JXF8820 800 800 200 1.5 1.5 2
JXF8825 800 800 250 1.5 1.5 2
JXF8830 800 800 300 1.5 1.5 2
JXF6 1020 1000 600 200 1.5 1.5 2
JXF6 1025 1000 600 250 1.5 1.5 2
JXF6 1030 1000 600 300 1.5 1.5 2
JXF8 1020 1000 800 200 1.5 1.5 2
JXF8 1025 1000 800 250 1.5 1.5 2
JXF8 1030 1000 800 300 1.5 1.5 2
JXF8 1040 1000 800 400 1.5 1.5 2
JXF101025 1000 1000 250 1.5 1.5 2
JXF101030 1000 1000 300 1.5 1.5 2
JXF6 1220 1200 600 200 1.5 1.5 2
JXF6 1225 1200 600 250 1.5 1.5 2
JXF6 1230 1200 600 300 1.5 1.5 2
JXF8 1220 1200 800 200 1.5 1.5 2
JXF8 1225 1200 800 250 1.5 1.5 2
JXF8 1230 1200 800 300 1.5 1.5 2
JXF101225 1200 1000 250 1.5 1.5 2
JXF10 230 1200 1000 300 1.5 1.5 2
JXF101240 1200 1000 400 1.5 1.5 2
JXF121225 1200 1200 250 1.5 1.5 2
JXF121230 1200 1200 300 1.5 1.5 2
JXF6 1430 1400 600 300 1.5 1.5 2
JXF8 1430 1400 800 300 1.5 1.5 2
JXF101430 1400 1000 300 1.5 1.5 2
JXF101440 1400 1000 400 1.5 1.5 2
JXF121430 1400 1200 300 1.5 1.5 2
