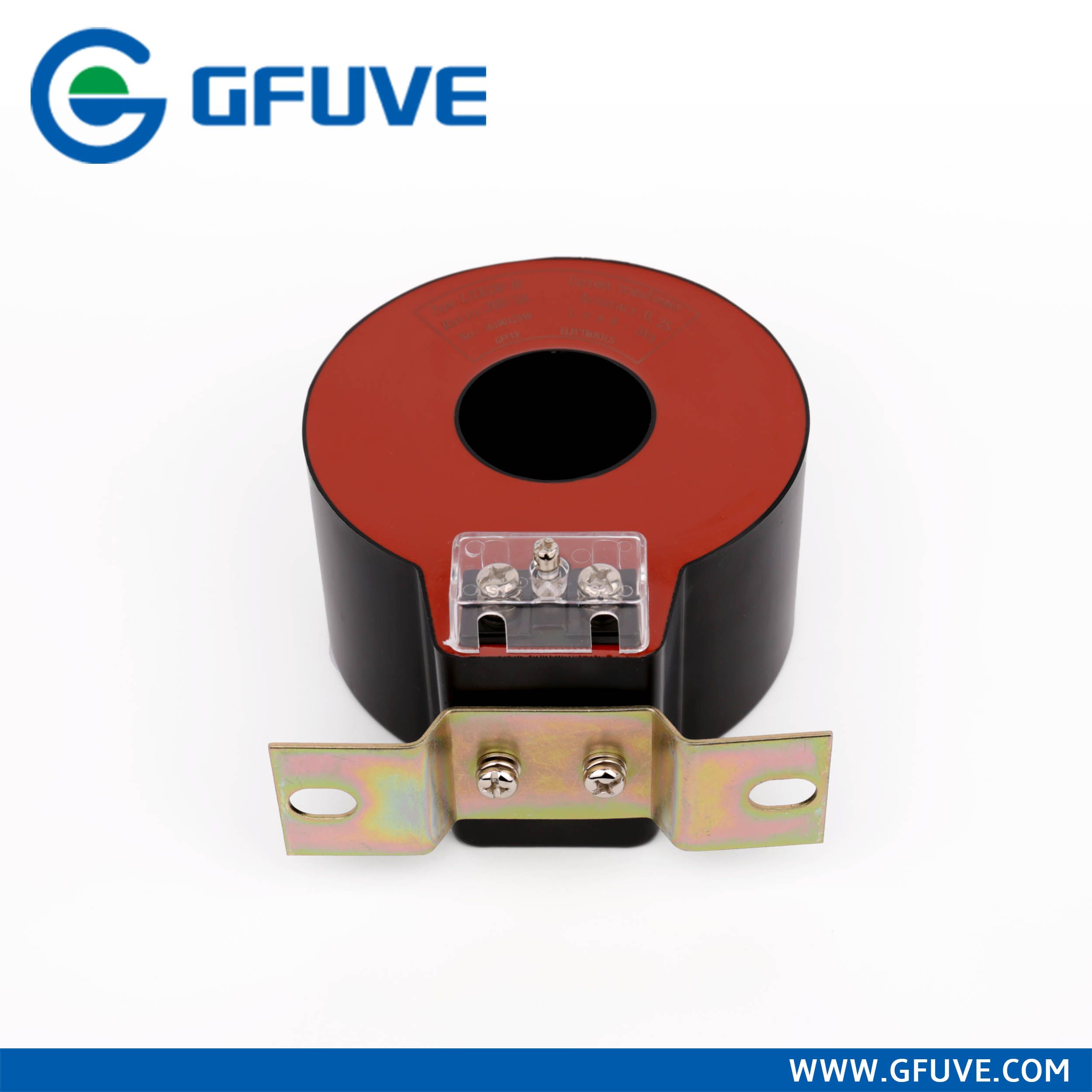

New Magnetic Material High-Precision Current Transformer

Prod Model:	LZCG530-10
Standards:	IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006
Rated Primary Current:	30-600A
Rated Load:	≤20va
Rated Frequency:	50Hz or 60Hz
Rated Secondary Current:	5A or 1A
Instrument Security Factor:	Fs≤10
Weight (Kg):	5
Operating Temperature:	-35°c to +55°c
Altitude:	<3500 Meters
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LZCG series high precision current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus, Uniswitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10,  Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, openable and convenient installation. It is very convenient that the transformer can be directly installed at the inlet and outlet cables.

New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.

The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance. Small size, light weight, small footprint, fixed in the ring network switchgear cable. The cable can cross the current transformer through its internal poles quickly and uniformly.

The current transformers can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.



Modelo	Corriente nominal primaria	Carga nominal	Apertura (mm)	Descripción (mm)	Peso (kg)	Material	Impermeable
LZCK-55	100-1200A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resina	Caja de silicio (opcional)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resina	Caja de silicio (opcional)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resina	Caja de silicio (opcional)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	5	Resina	Caja de silicio (opcional)
