Dongguan Maiyu Electronics Co., Ltd. >> New Marine Boating Switch Panel Switches Car Dual USB Charger Cigarette Lighter Socket with Voltmeter Yacht RV Boat Switch

New Marine Boating Switch Panel Switches Car Dual USB Charger Cigarette Lighter Socket with Voltmeter Yacht RV Boat Switch

New Marine Boating Switch Panel Switches Car Dual USB Charger Cigarette Lighter Socket with Voltmeter Yacht RV Boat Switch
Price: US $ 27-29/Set
Min Order: 50/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: ATV
Usage: Toys
Standard: Standard
Lamp: With Lamp
Color: Black
Certification: CE
Condition: New

Product Description

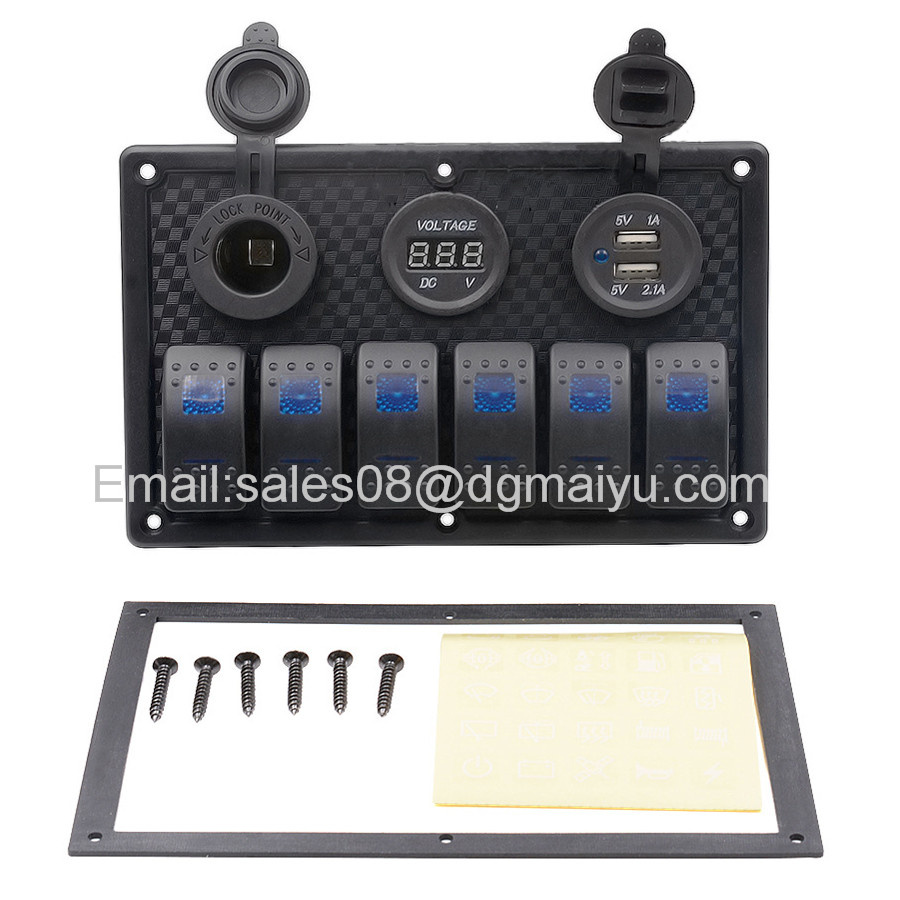

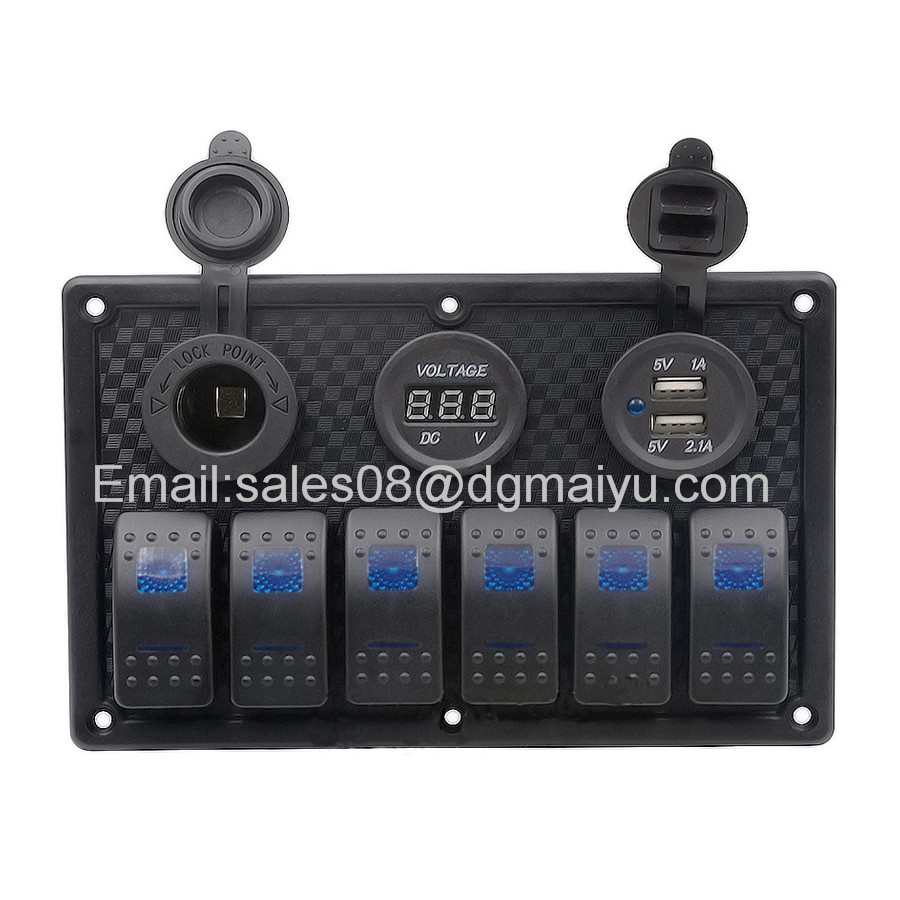

2016 6Gang Marine Boating Switch Panel Switches Car Dual USB Charger Cigarette Lighter Socket With Voltmeter Yacht RV Boat Rocker Switch Refit Accessories




Specifications:

Material : ABS anti-retardant UV materials

Weight : 515grams

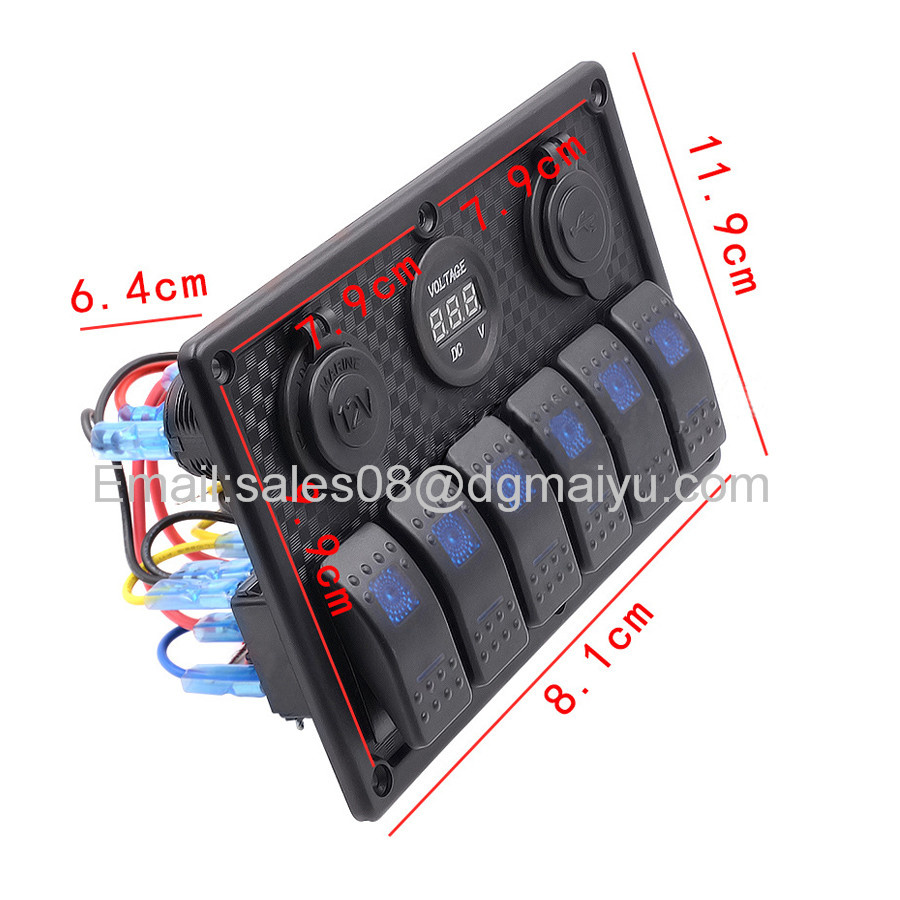

Size : 120*100*70mm

USB charger power output : 5V 3.1A

Cigarette lighter socket input power :12V 20A , 24V 10A

Over load protection : 5A*2 , 10A*3 , 15A*3

Maximum continuous loading : AC 125V / 10A , 12V / 20A , 24 V / 10A

Maximum load and time : DC 12V / 23A  , 24V / 11.5A , 5 seconds / 1 times, continuous 30 times

Minimum current load : 0A

Voltmeter Measure range : 6V - 33V

DC Maximum voltage : DC 30V
DC Minimum voltage :  DC 3V
Maximum contact loading : AC 125V / 10A , 2V / 20A , 24V / 10A
Breaking load maximum contact : AC  1500V 1 miunte
Working period : 5 seconds / 1 times
No Load Life Cycle : 20000 times
Full load Life Cycle : 10000 times
IP Rating : IP66
It is suitable for all 12V - 24V battery cars



Features:

1, it is ideal for car, RV, boat, yacht truck ATV such cab , coffe cafe , bar power control switch ;
2, using 4,6,8 group switches switch panel surface, with light switch;
3, the appearance of fine workmanship, it can be modified way, there are straight or horizontal installation;
4, high-quality, enjoy CE certification, the highest IP66 waterproof level;
5, once the conversion is successful,  it an be individually controlled in the cockpit: power switch coffee, bar area, recreation area.

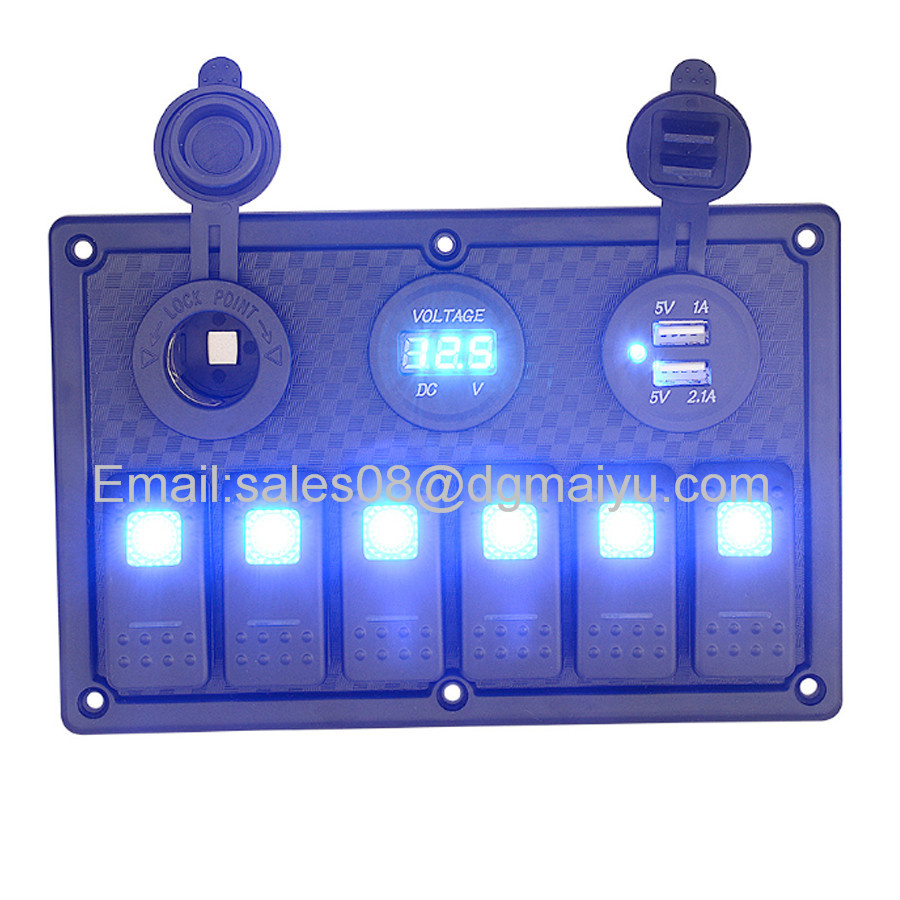

6. yacht refit switch panel with Blue LED indicator light
7.CE certified quality, environmental anti-retardant materials
8.12-24V car Universal voltage; suitable for conversion to control all electronic equipment on board

9. Output short circuit protection, overload protection, reverse polarity protection, multiple protection










*************************************************
