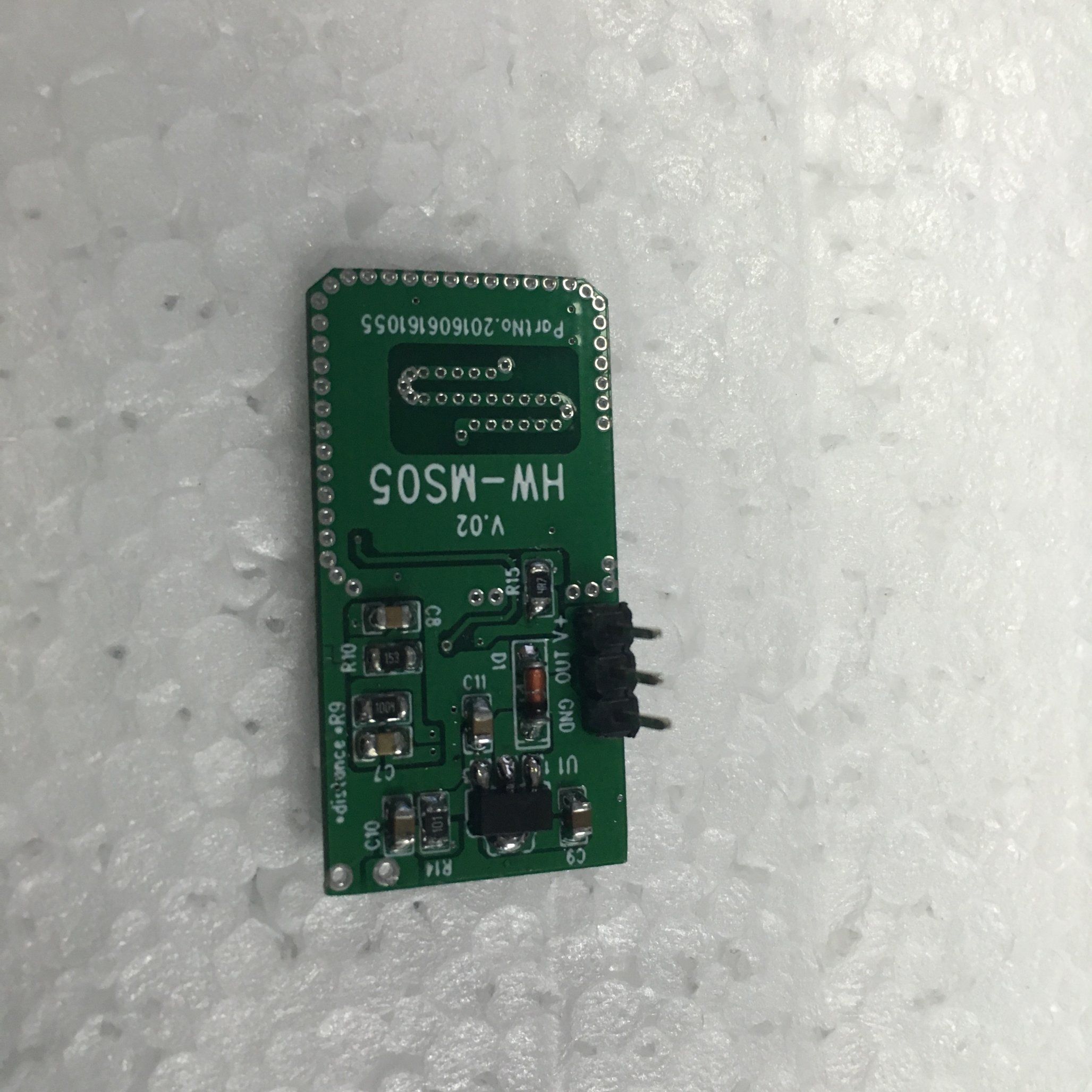

New Mini Human Detecor Motion Sensor Hw-Mn05 Llong-Term Technical Support

Prod Model:	HW-MN05
Model:	Hw-Mn03
Material:	Metal
Supply Voltage:	24-60V DC 3.7V-24V
Current:	<8mA
Operating Voltage:	Vcc=+5.0V Vcc=+3.3V(by Custom)
Trigger Way:	Repeat(Default)
Frequency:	10.525GHz
Delay Time:	Default 2 S-3s ( Adjustable)
Size:	L20*W11*D4 mm
Distance:	Normal=5m ,Custom=3m-15m
Metal Coating:	Tin
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Customized:	Customized
Condition:	New
Certification:	Ce

Product Description

Working Principle
   Based on the Doppler, HW-MN05 microwave motion module can output the useful controllable electrical signals after triggering the microprocessor to work once detected the changeable of reflected wave with the planar antennas which can transmit and receive the HF electromagnetic wave. The module is wildly used in mini-security monitor, smart control system,illuminative light etc.

 Feature
No affected by temperature, humidity, airflow, dust, noise, light, dark and other factors because of its stronger anti-interference capacity.
Wide coverage without blind zone because of its field pattern emission.
The sensitive of the product indoor is better than outdoor's because the microwave is easier to reflect on the transmission
Professional design of the microwave with flat antenna, low-power, ROSH and high product    consistency.
 small size,  it can be hidden well in a variety of small size products, and has strong lauching signal ability and strong ability to penetrate.
Equipped with CDS photosensitive device, it does not work during the day, while automatically sensoring  at night.
Smal lStatic power consumption.
Specification:(Regular )


Model	HW-MN5(MINI)
DC INPUT	3.7v-24v	Built-in 7533 regulator
Static power consumption	<3MA not loaded
Load mode	3v - 0v	3v output when it is  dynamic,  0v when it is static
Sensing mode	Doppler sensoring  principle,detecting dynamic object.
Delay time	2s "retrigger" trigger way	Can be customized
Block time	Default without blockade	Can be customized
Frequency	The Center Frequency of Active Radiation Electromagnetic Wave Signal is 3.2G.
Sensing distance	Default distanve is 5m	Distance can be custized as required.The range is 3m-15m.
Operating temperature	-20-70 ºC	Can be customized
Dimensions	4mmx20mmx11mm	Height X length X width	mm

6. Application environment (all kinds of miniature small size products)
1. Micro-burglar alarm.
2. Gated switch.
3.IPC indoor monitoring.
4. Table lamp,various mini-LED lighting.
5. Hotel sensoring switch panel.
6. Car anti-theft monitoring.
7. Mini-intrusion detection system.
8. Intelligent Furniture voice butler welcome system.
9. Sleep lamp alarm clock.
10. Toilet light control.



 Notice
 Power
It is suggest that you should use qualified DC regulated power supply which the output voltage,current and ripple coefficient are standard. Otherwise, it could reduce stability like misreported,unreported, cycled auto start.
 Misreported
1, Ensure qualified power. See notice 1
2 ,Ensure there isn't moving object around the tested products.
3, It doesn't detect and may cause misreported during starting up 10s-30s after electricity.
4,The sensitive is higher when testing indoor. Please keep quiescent state and test the second after finishing the first detected signal.Pay more attention to surroundings when testing the module outdoor.Like flying bird,walking man,running vehicle etc.
5,The output signal current of the module is too weak so that it may easier to make misreport when working high-powered device.
 Time Adjusting
There is time resistance on the back that you can adjust time.The higher resistance is,the longer time is.
 Distance Adjusting
There is distance resistance on the back that you can adjust distance.The higher resistance is,the longer distance is.
Notice: Circuit would become instability when the resistance is greater than 3 MΩ.It is kindly suggest that customers shouldn't adjust the resistance. Please contact us if needed.
 Housing
The product size is small, it can be hidden well inside the product but need to avoid some interference conditions: (For example: 1. Too close to power board, resulting transformers - large inductance - high current electromagnetic interference .2.Blocked by Metal shell, Antenna surface can launch signal, or product shell close to the antenna surface (The distance between shell and product should be 5mm) 3.install multiple microwave modules in the same sensor detection area.)
Interfering
The module has interfering for each other. Therefore,within the scope of effective induction, please avoid installing two or more modules on one product. otherwise, the mutual interference may affect the use effect for you. Please contact us if needed.
