| Prod Model: |
BWTT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Thermostat |
| Color: |
White |
| For: |
Floor Heating Systems |
| Dimension: |
86mm * 86mm *16mm |
| Safe Invisible: |
Invisible Isolated Switch |
| Display Langue: |
Multi-Language Optional, English, French |
| Output Rated Power: |
16A/3500W |
| Power Supply: |
220V ± 15% 50-60 Hz |
| Price: |
Negotiation |
| Usage: |
Refrigerator |
| Certification: |
ISO |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Display Type: |
LCD |
| Material: |
ABS |
| Operating Principle: |
Control Temperature at a Certain Number |
| Brand: |
Bowei |
Product Description

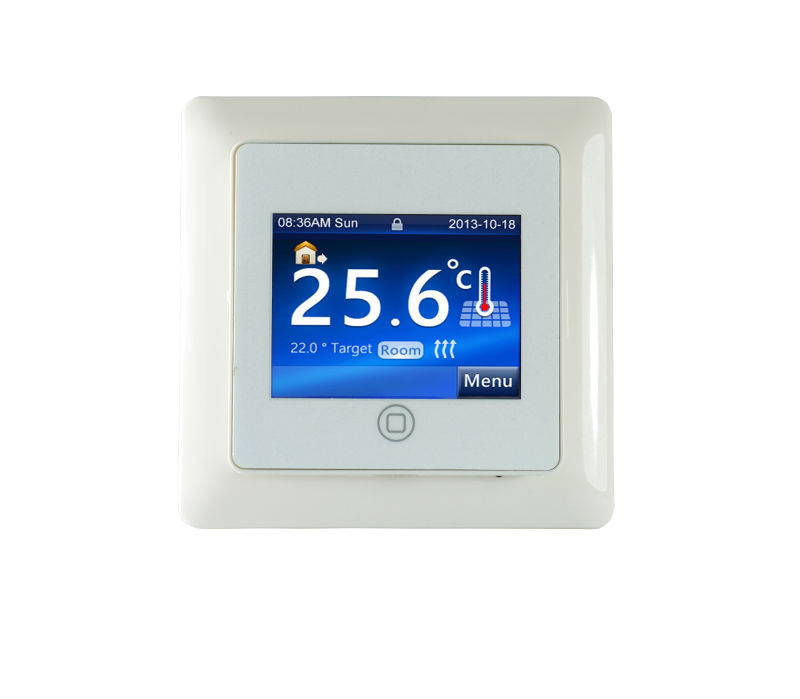

New model WIFI color touch screen thermostat
Application : 16A 3500W , floor heating system
Features : Colorful touch screen .
invisible isolated switch
power modul design , more easy installation
color choose option
Child lock
Muti-language option
Plugable front face , can be changed with super big display TC18 ( 2014 enter the market )
Energy monitor (paragraph display , also could calculate the cost each week , month ,year )
Could choose different kind of the floor material , and choose different high limitation point ,
USB connection for software upgrade
Features
l 2.4 ″TFT color screen, resolution 320x240pixel
l Full screen touch operation (resistance-type)
l Energy monitoring function
l Frost protection function
l Multi language OSD menu optional
l USB port charging, easy to operate
l Support various types NTC sensors
l Compatible with several frame systems for electrical appliances
l First warming function
l Child lock function
l Support Holiday mode
l Select the operation language you prefer. There are multi-language optional (Chinese, English, French,German, Dutch, Russian, Polski, Norsk, Svenska, Danish,Suomi, Romania).
Technical data
Voltage | AC100- 240V 50/60Hz |
| Power load | 16A / 3500W |
| Setting range | 5°c~60°c |
| Limitation range | 5~40°c (factory setting 40°c) |
| Switching differential | ±0.5°c |
| Ambient temperature | -5~50°c |
| Protective housing | IP21 |
| Housing material | PC |
| Floor sensor | Thermoplastic Rubber NTC sensor, cable length is 2.5 m |
| Dimension | 86mm X 86mm X16mm |
| installation | flush mount |
