New Molded Case Circuit Breaker

Name: New Molded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 689740471
Availability: InStock
Rating: 4.9 (34 reviews)

Price:	US $ 0.6-1/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SPD
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Poles Number:	1.23.4

Product Description

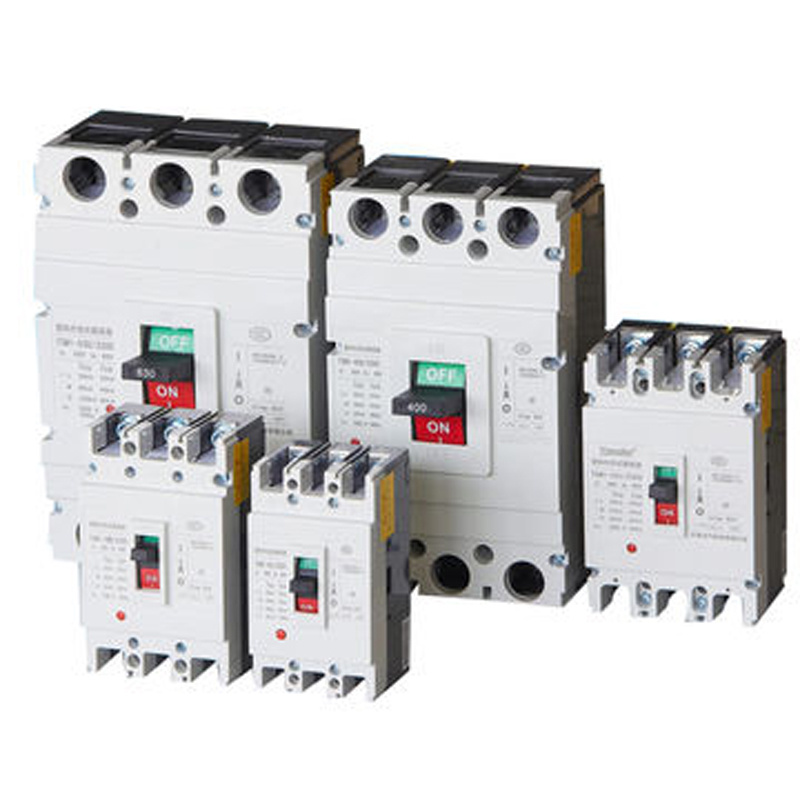

PRM1molded case circuit breaker (hereinafter referred to as circuit breakers), our company using the international advanced design and manufacturing technology researched and developed one of the new circuit breakers Suitable for circuit 50Hz AC, rated voltage up to and below 690V AC, rated operating current to 800A Merged with international latest advanced technology, it is compact, modularized, environment-friendly, with high breaking and zero arc-over capabilities MCCB works well under electric circumstance of 50Hz AC, 690V (or lower), 12.5-1600A, which can effectively increase the efficiency of power distributing and protect the whole system against harms caused by overload, under-voltage or short circuit to protect lines and power appliances from damage Also can be used as non-frequent switch for your engine/system,Circuit breaker is with small size, high breaking capability, arcing short (part of the standard zero arcing), anti-vibration characteristics




New features:	Insulation components is with high strength DMC unsaturated polyester glass fiber plastic, appropriately increase in the proportion of aluminum hydroxide content, improve the product's flame retardant property

	Conductor system using advanced silver plated process, increasing the thickness of silver to improve the product current carrying capacity and heat dissipation

	Circuit breaker accessories are produced by professional manufacturers sellected complying with national standards to further improve the reliability of the product

	Metal parts of products using environmentally plating process, complying with European Union environmental standards


Classification:	L type(standard type)
	H type (high breaking type)
	M type(more advanced breaking type)

Normal working situation:	1. Altitude 2000m and below	2. Withstand moist air
	3. Temperature no higher than+40°C (45°C for watercraft)no less than-5°C
	4. Withstand salty and oil pollution, the impact of nuclear radiation
	5. Most gradient 22.5°	6. Without rain effect
	7. Atmosphere without corrupt and electric air and no danger of explosion
	8. Pollution level: three	9. Should be installed where no rain and snow

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
