New Product 60~150A Industrial Class SSR Solid State Relay

Name: New Product 60~150A Industrial Class SSR Solid State Relay
Brand: all-electronics-online.com
SKU: 794424555
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SYDM10048ZD3
Load Current:	100A
Load Voltage:	30-480VAC
Control Voltage:	3-32VDC
Weight:	150g

Product Description

NEW product

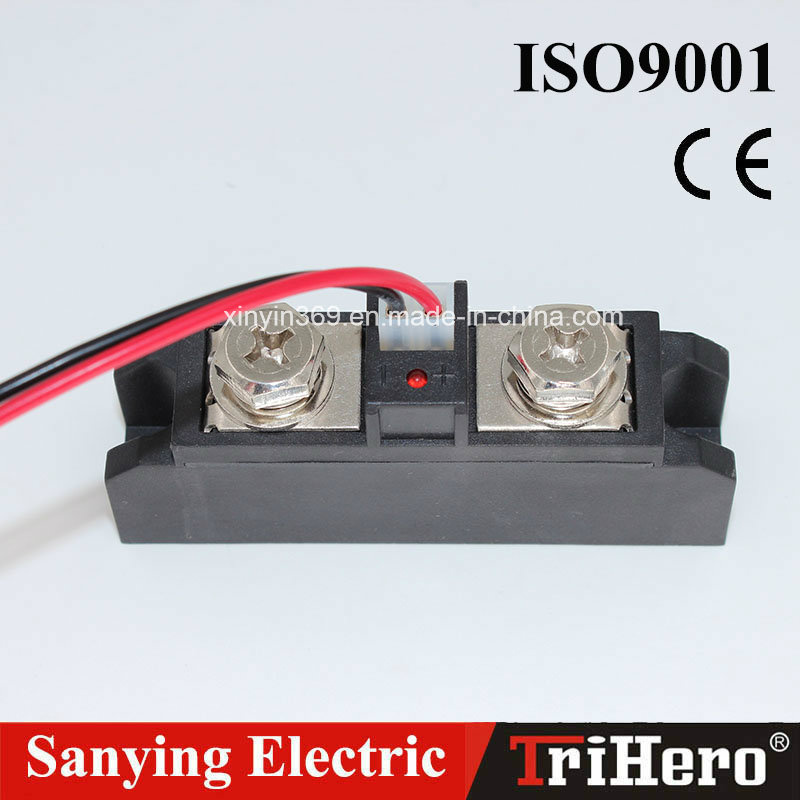

DC-AC Industrial Class Solid State Relay SSR

Introduction:
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

Technical data:

Model	SYDM10048ZD3
Load current	100A
Load voltage	480VAC
Control voltage	3-32VDC
Control current	DC3-25mA
On state voltage drop	≤1.5VAC
On state leakage current	≤2mA
Off state time	≤10mS
Dielectric strength	2500VAC
Insulation resistance	1000MΩ500VDC
Ambient temperature	-30°c ~ +75°c
Mounting method	bolting
Indicator	LED
Weight	150g

Matched heatsink & fan:

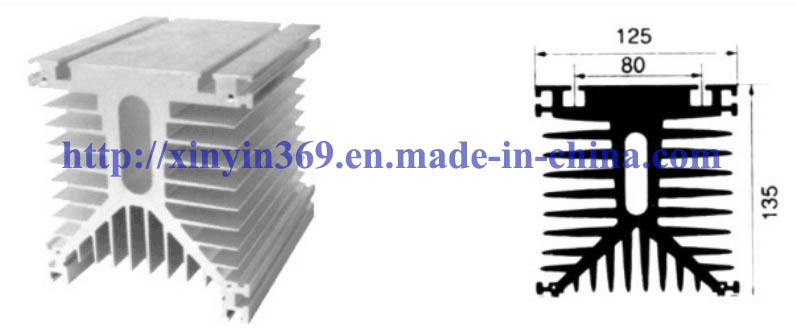

Heatsink Y-shape

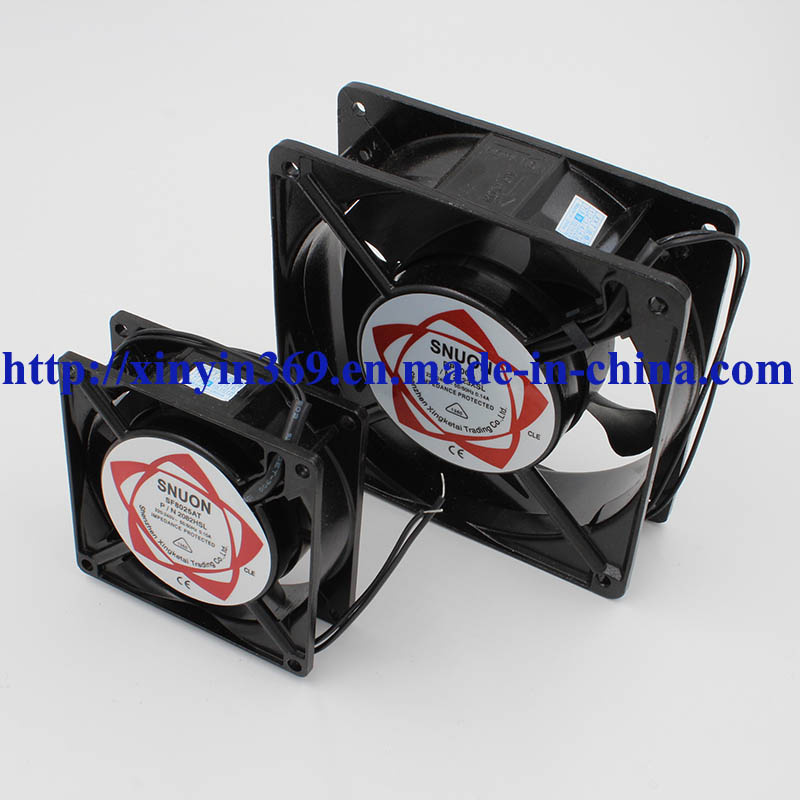

Fan

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

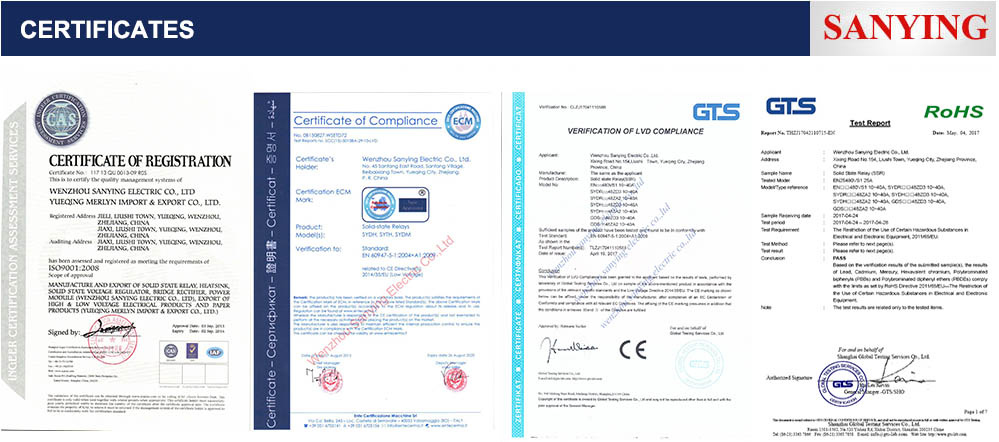

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
