New Product Ae3jk-R4 Relay Output Reflection Photoelectric Switch Sensor Blue

Name: New Product Ae3jk-R4 Relay Output Reflection Photoelectric Switch Sensor Blue
Brand: all-electronics-online.com
SKU: 840372555
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 1-20piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AE3JK-R4

Product Description

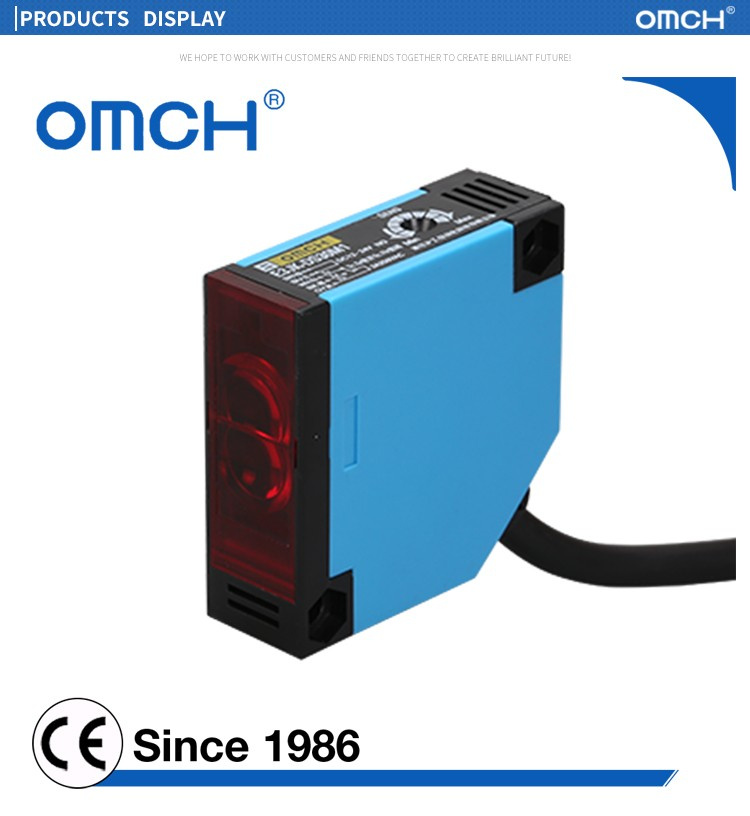

New Product AE3JK-R4 Relay Output Reflection Photoelectric Switch Sensor Blue

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC
Used in common places witch medium environment resistance
Red LED indicates that it's available to derect the sensor operating state
IP67 protection structure (IEC specification)
Read the "Matters needing attention" of the Product Instruction before use

Type and Specification
We sincerely welcome agents from all over the world

Dimension				185050
Dectection method				Diffuse type		Feedback reflection type	Transmission type
Type	DC type	NPN	NO	AE3JK-DS30N1	AE3JK-DS50N1	AE3JK-R4N1	AE3JK-5DN1-5L
			NC	AE3JK-DS30N2	AE3JK-DS50N2	AE3JK-R4N2	AE3JK-5DN2-5L
			NO+NC	AE3JK-DS30N3	AE3JK-DS50N3	AE3JK-R4N3	AE3JK-5DN3-5L
		PNP	NO	AE3JK-DS30P1	AE3JK-DS50P1	AE3JK-R4P1	AE3JK-5DP1-5L
			NC	AE3JK-DS30P2	AE3JK-DS50P2	AE3JK-R4P2	AE3JK-5DP2-5L
			NO+NC	AE3JK-DS30P3	AE3JK-DS50P3	AE3JK-R4P3	AE3JK-5DP3-5L
	AC type	two-wire	NO	AE3JK-DS30A1	AE3JK-DS50A1	AE3JK-R4A1	AE3JK-5DA1-5L
	AC type	two-wire	NC	AE3JK-DS30A2	AE3JK-DS50A2	AE3JK-R4A2	AE3JK-5DA2-5L
	Relay output	DC illuminate		AE3JK-DS30M1-D	AE3JK-DS50M1-D	AE3JK-R4M1-D	AE3JK-5DM1-5L-D
		AC illuminate		AE3JK-DS30M1-A	AE3JK-DS50M1-A	AE3JK-R4M1-A	AE3JK-5DM1-5L-A
		DC non-illuminate		AE3JK-DS30M2-D	AE3JK-DS50M2-D	AE3JK-R4M2-D	AE3JK-5DM2-5L-D
		AC non-illuminate		AE3JK-DS30M2-A	AE3JK-DS50M2-A	AE3JK-R4M2-A	AE3JK-5DM2-5L-A
Dectection range				30cm±10%	50cm±10%	4m±10%	5m±10%
Set target				transparent/Opaque object	transparent/Opaque object	Opaque object	Opaque object
Detection range regulation				Sensitivity adjuster	Sensitivity adjuster	Sensitivity adjuster	Fixed
Response frequency				1ms 30ms	1ms 30ms	1ms 30ms	1ms 30ms
