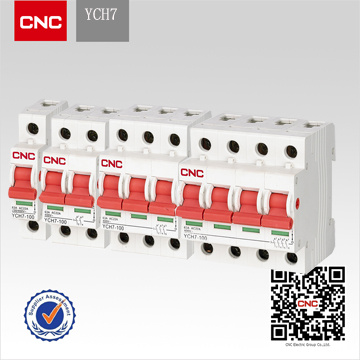

New Product Ych7 Isolating Switch

Name: New Product Ych7 Isolating Switch
Brand: all-electronics-online.com
SKU: 703046505
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	US $ 2.5-2.8/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCH7-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole:	1,2,3,4
Rated Continuous Current:	32, 40, 50, 63, 80, 100
Function:	Isolating Switch
Type:	Low-voltage
Structure:	Three-column Disconnector
Operation:	Electric
Grounding:	Un Grounded
Series:	Two
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	CE
Installation:	DIN Rail
Number Of Poles:	1.2.3.4
Common Model:	Ych
Brand:	CNC

Product Description

General
1. Making and breaking under load condition
2. Providing safety isolation for terminal distribution system
3. Used in residential building, non-residential building

Electrical features	Rated current In	A	32, 40, 50, 63, 80, 100
	Poles	P	1,2,3,4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated short-time withstand current Icw		12Ie, 1s
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2.5
	Rated making and breaking capacity		3Ie, 1.05Ue, cosφ =0.65
	Rated short circuit making capacity		20Ie, 0.1s
	Pollution degree		2
Mechanical features	Electrical life	t	1500
	Mechanical life	t	8500
	Protection degree		IP20
	Ambient temperature (with daily average≤ 35° C)	° C	-5~+40
Installation	Terminal size top/bottom for cable	mm 2	50
Installation	Terminal size top/bottom for cable	AWG	18-1/0AWG

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
