| Prod Model: |
HJS16E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Moedl: |
Hjs16e |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
Product Description

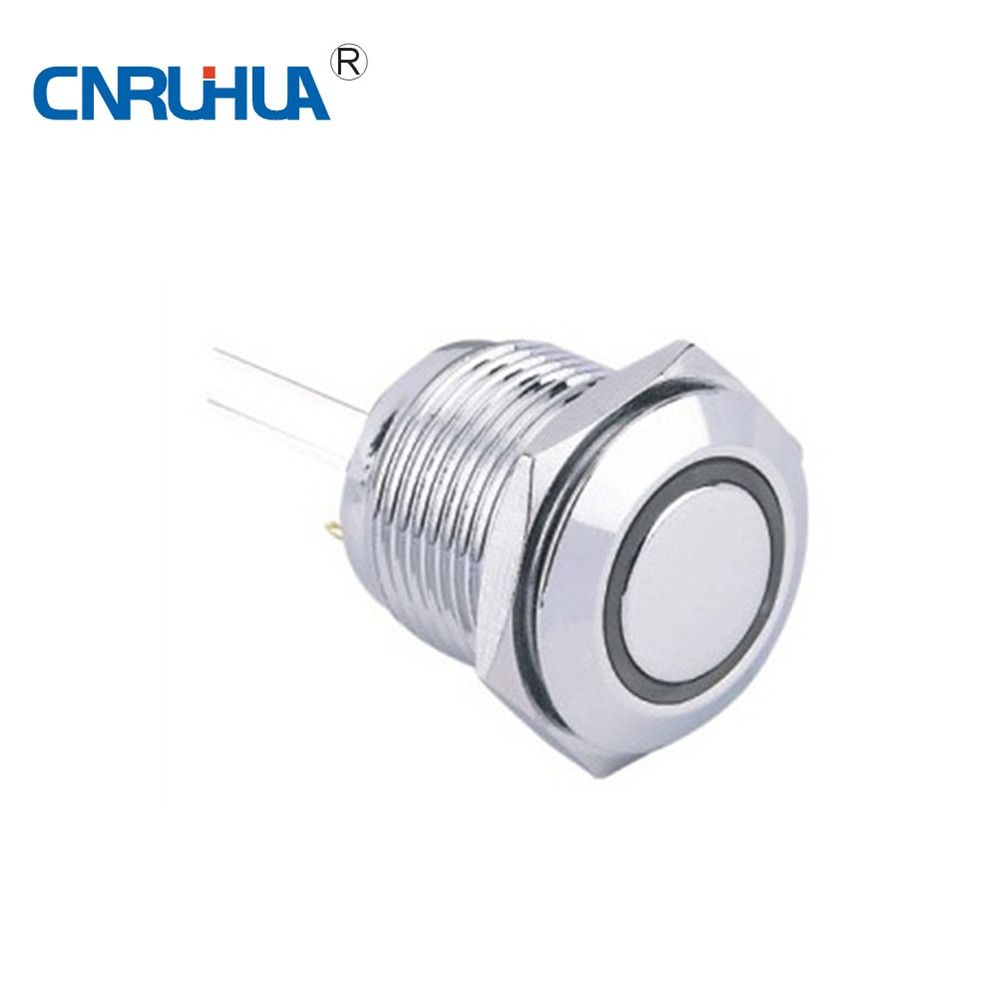

New Style Metal Dome Momentary Waterproof Push Button Switch
HJS16E
Overview
Specification: HJS16E-10P
Mounting hole dimension: Φ 16mm
Switch rating: 3A/36VDC
Switch combination 1NO
Operating type: Self-settable
Bead type: LED
Shell material: Stainless steel/brass(Chrome Plated)/ Aluminum (oxidation)
IP grade: IP65
Bead color: Red orange yellow green blue white black
Technical parameters
| Specification | HJS16E-10P | Life time | >1,000,000 |
| head shape | facet | electric life time | >200,000 |
| The tail configuration | Wiring Insert(2*0.5mm) | Panel thickness | 1~10mm |
| Switch specification | 2A/36VDC | nut torque | 5~14Nm |
| contact resistance | ≤50mΩ | Operating force | ≈4N |
| insulation resistance | ≥1000mΩ | operating distance | ≈1.5mm |
| insulating strength | 2000VAC | IP Grade | IP65 |
| Working temperature | -20~+55 °C |
| material | contact | Silver alloy | Bead specification | type LED | ring light bead(LED)
|
| key | stainless steel/
Chrome Plated brass | rated current le | 20mA |
| shell | stainless steel/
Chrome Plated brass | rated voltage le | AC/DC1.7V AC/
DC2.8V |
| Pedestal | PBT | Bead color | Red orange yellow
green
blue white |
| RoHS | Customized | bead life time | 40,000 hours |
Current limiting resistor
configuration
(recommended value ) | voltage U | 6V | 12V | 24V | 36V | calculation formula
R=(U-Ue)/Ie |
| current-limiting resistance | Red orange yellow | 210Ω
1/4W | 510Ω
1/2W | 1.2KΩ
3/4 | 2.2KΩ
1W |
| Green blue white | 160Ω
1/4W | 460Ω
1/2W | 1.2KΩ
3/4 | 2.2KΩ
1W |
