| Prod Model: |
HJS12C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Moedl: |
Hjs12c |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
Product Description

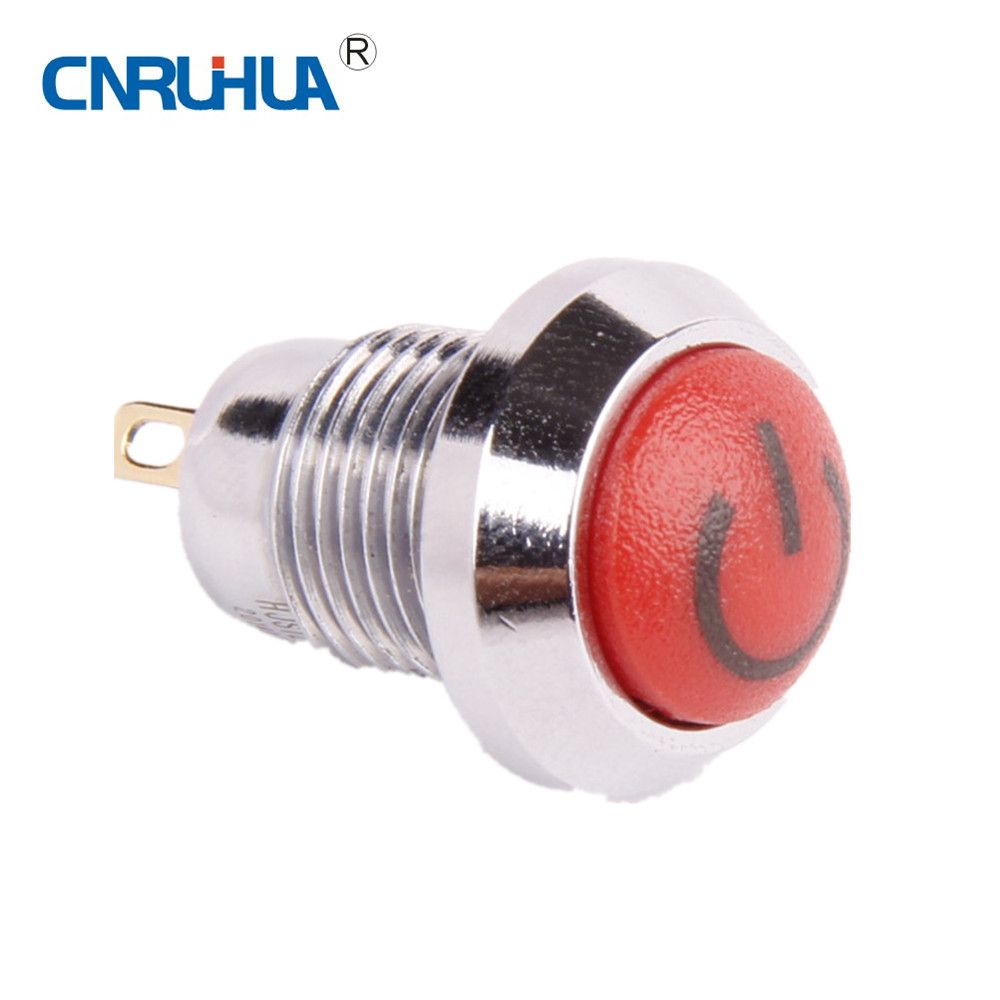

New Style Stainless Tactile Push Button Switch
HJS12C
Overview
Mounting hole dimension: Φ 12mm
Switch rating: 1A/250V
Switch combination 1NO
Operating type: Self-settable/Self-locking
Bead type: LED/Single light bead
IP grade: IP65
Bead color: Red orange yellow green blue white
Shell material: Chrome plated brass
| Specification | HJS12C | Life time | >1,000,000 |
| head shape | High ball | electric life time | >200,000 |
| The tail configuration | Wiring Insert(2*0.5mm) | Panel thickness | 1~5mm |
| Switch specification | 1A/250V | nut torque | 5~14Nm |
| contact resistance | ≤50mΩ | Operating force | ≈4N |
| insulation resistance | ≥1000mΩ | operating distance | ≈1.5mm |
| insulating strength | 2000VAC | IP Grade | IP65 |
| Working temperature | -20~+55 °C |
| material | key | PC | Bead specification | type LED | Single light bead(LED)
|
| shell | PC | rated current le | 20mA |
| Pedestal | PBT | rated voltage le | AC/DC1.7V AC/DC2.8V |
| Bead color | Red orange yellow
green blue white |
| RoHS | Customized | bead life time | 40,000 hours |
Current limiting resistor
configuration
(recommended value ) | voltage U | 6V | 12V | 24V | 36V | calculation
formula
R=(U-Ue)/Ie |
| current-limiting resistance | Red orange yellow | 210Ω
1/4W | 510Ω
1/2W | 1.2KΩ
3/4W | 2.2KΩ
1W |
| Green blue white | 160Ω
1/4W | 460Ω
1/2W | 1.2KΩ
3/4W | 2.2KΩ
1W |
