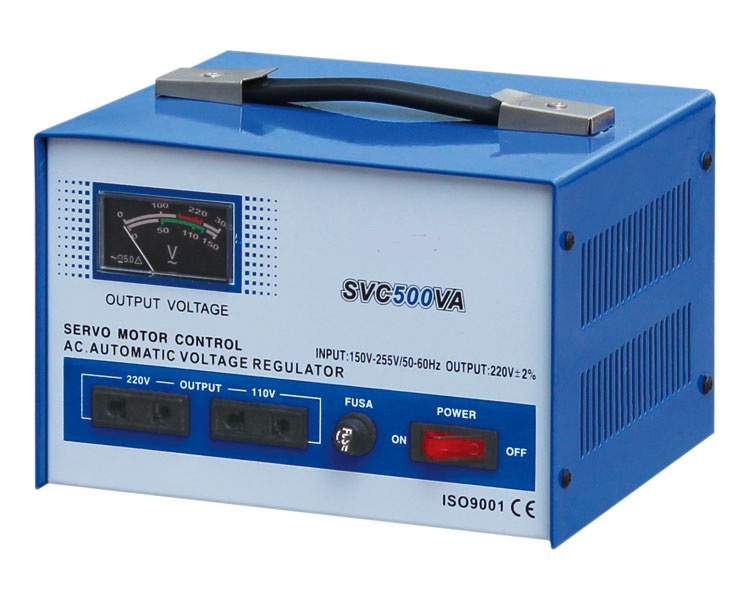

New SVC 500va 60Hz Automatic AC 220V Voltage Stabilizer

Name: New SVC 500va 60Hz Automatic AC 220V Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 727687812
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-500VA
Current Type:	AC
Phase:	Single Phase
Usage:	JIW
Frequency:	Industrial Frequency

Product Description

Technical Parameter

1. Input Voltage Range: AC150~260V

2. Output Voltage Range: 220V&110V (0.5kva~3kva) ; 220v(above 5kva)

3. Regulation Accuracy: 220V±3%

4. Frequency: 50Hz~60Hz

Advanced Features

1. No-lack dissortion in waveform

2. Reliable performence

3. Support long-term operation

4. Long time no break working

5. Customized function: Time-delay, Under-voltage, Over-voltage

6. Support every single phase equipment

Input voltage	150V-260V
Output voltage	220V&110V(0.5kVA-3kVA) 220V(5kVA-30kVA)
Regulation accuracy	Phase voltage 220v±3% 110v±6%
Frequency	50Hz/60Hz
Overvoltage protection	246v±4v
Response time	Within 1 sec. against 10% input voltage deviation
Environment temperature	-10ºC~+40ºC
Increased temparature	<60ºC
Waveform disortion	Nolack distortion in waveform
Overload power factor	0.8
Intensity of electricity resustance	1500V/1min
Insulation resistance	>5MΩ

Model	Outline(mm)	Measurement(cm)	Qty of Package(Pcs)	Weight(kg)
SVC/TND-500VA	191713.5	4424.535	4	15
SVCTND-1000VA	2220.216	4928.540	4	20
SVC/TND-1500VA	2220.216	4928.540	4	26
SVC/TND-2000VA	24.525.819.5	60.53525.5	2	17
SVC/TND-3000VA	23.52923	61.538.529	1	23
SVC/TND-5000VA	2331.527.5	39.53235	1	13
SVC/TND-10K (Ultra low voltage)	3134.553.5	4542.562	1	33
SVC/TND-10K	3134.553.5	4542.562	1	36
SVC/TND-15K	283877	494086.5	1	52
SVC/TND-20K	32.53877.5	4944.588.5	1	59
SVC/TND-30K	37.541.578.5	534988.5	1	72

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
