Shenzhen Baanool Electronics Co., Ltd. >> New Tk102 Mini Global Car GPS Real Time Tracker 4 Bands GSM/GPRS/GPS Tracking Device Tk102

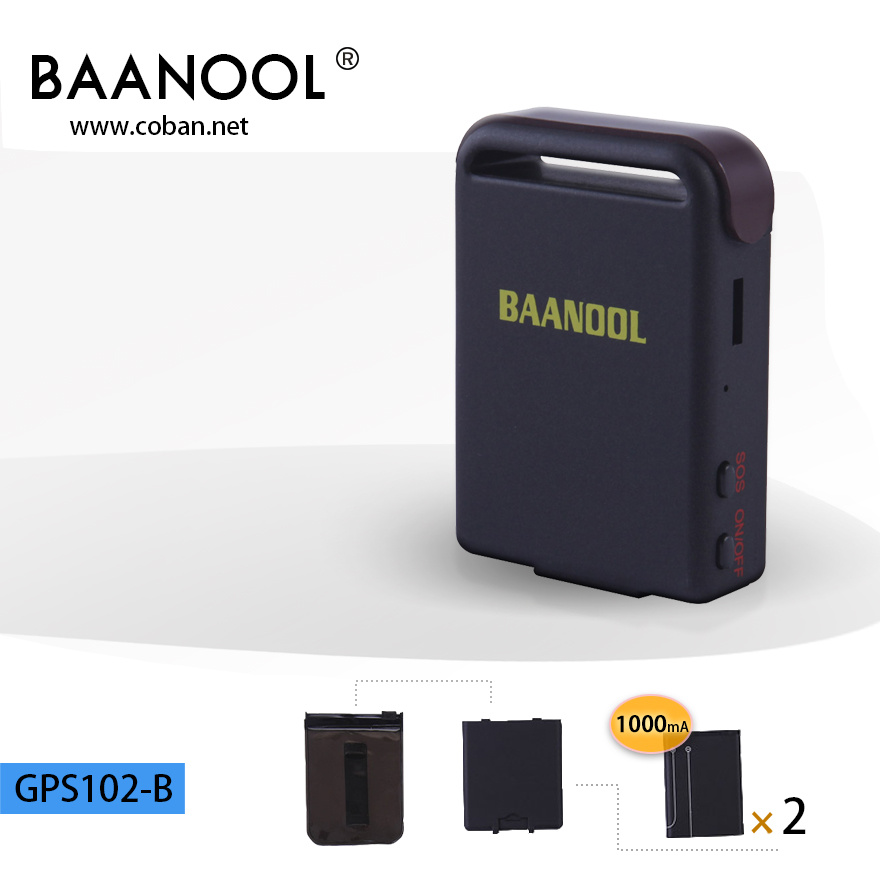

New Tk102 Mini Global Car GPS Real Time Tracker 4 Bands GSM/GPRS/GPS Tracking Device Tk102

New Tk102 Mini Global Car GPS Real Time Tracker 4 Bands GSM/GPRS/GPS Tracking Device Tk102
Price: US $ 16.97-25.45/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union
Prod Model: GPS Vehicle tracker 102b
Location: GPS GPRS Lbs Location
GPS Sensitivity: -159dBm
GPS Accuracy: <5m
Car Voltage: 12V, 24V
Special Features: Real Time Tracking, Digital Compass
Tracking System: Web Server Platform
Certificate: Ce RoHS FCC
Warranty: 1 Year
Function: Hidden Install, Waterproof, Sos
APP: iPhone Android ISO APP
Type: GPS Tracker
Use: Automotive
Operating Principle: GSM/GPS
Model: GPS Tracker Bn102
Screen Size: No
Carrier Frequency: 850/900/1800/1900MHz
Chip: CB900
Brand: Baanool
Certification: ISO9001

Product Description

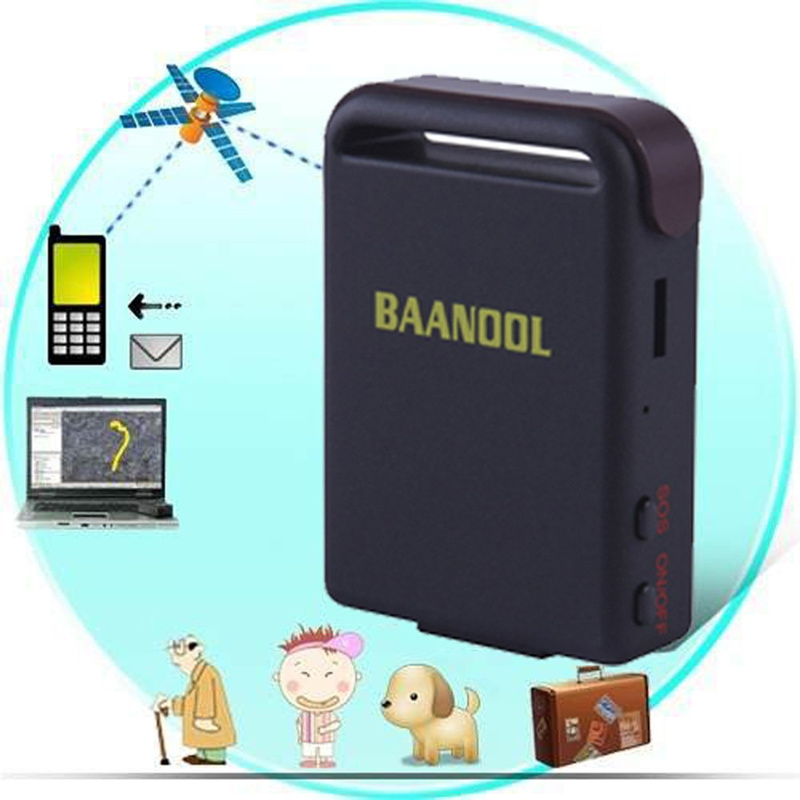

This product can locate accurately and be used in guarding Vehicle against theft, Protecting child / Elderly / disabled / pet, Managing personnel and Tracking criminals secretly.
Details:
Working Based on existing GSM/GPRS(850/900/1800/1900MHZ)network and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA.




Main Functions
*With internal memory,support SD memory
*Quiver/sensor alarm (adjustable)
*Powerful magnet+water proof,adsorbing in the hidden place of car.
*Get location in real street/address name
*Location based service function.
*Sleep mode
*Multiple tracking ways;Provide monitor software with the global map free,
real-time track by your computer or PDA cell phone or google earth.
*Standby 80hours.
*Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 40g
Integration design(antenna and battery inside);easy to hide and take along with you
*Can support platform www.baanool.net for real time track on map or inquire the target's position by mobile phone.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence.
*Move alarm
*Over speed alarm.
*Low battery and SOS alarm function
*TCP/UDP switch
*Forward the third parties'message
*Configure parameters by USB


Package



GPS unit
 magnetic battery cover         batteries |  battery dock
AC adapter | USB cable
water proof bag
user manual




Attention:


Optional accessories

Optional accessories:
Hardwired car charger
Cigarette lighter car charger
Microsd memory card



Specifications


ContentSpecifications
Dim.64mm x 46mm x 17mm(1.8" *2.5" *0.65" )
Weight50g
NetworkGSM/GPRS
Band850/900/1800/1900Mhz
GPS sensitivity-159dBm
GPS accuracy5m
Time To First FixCold status  45s
Warm status  35s
 Hot status  1s
Car charger12-24V  input
      5V   output
Wall charger110-220V  input
       5V   output
BatteryChargeable changeable 3.7V 1000mAh Li-ion battery
Standby80hours
Storage Temp.-40°C to +85°C
Operation Temp.-20°C to +55°C
Humidity5%--95% non-condensing

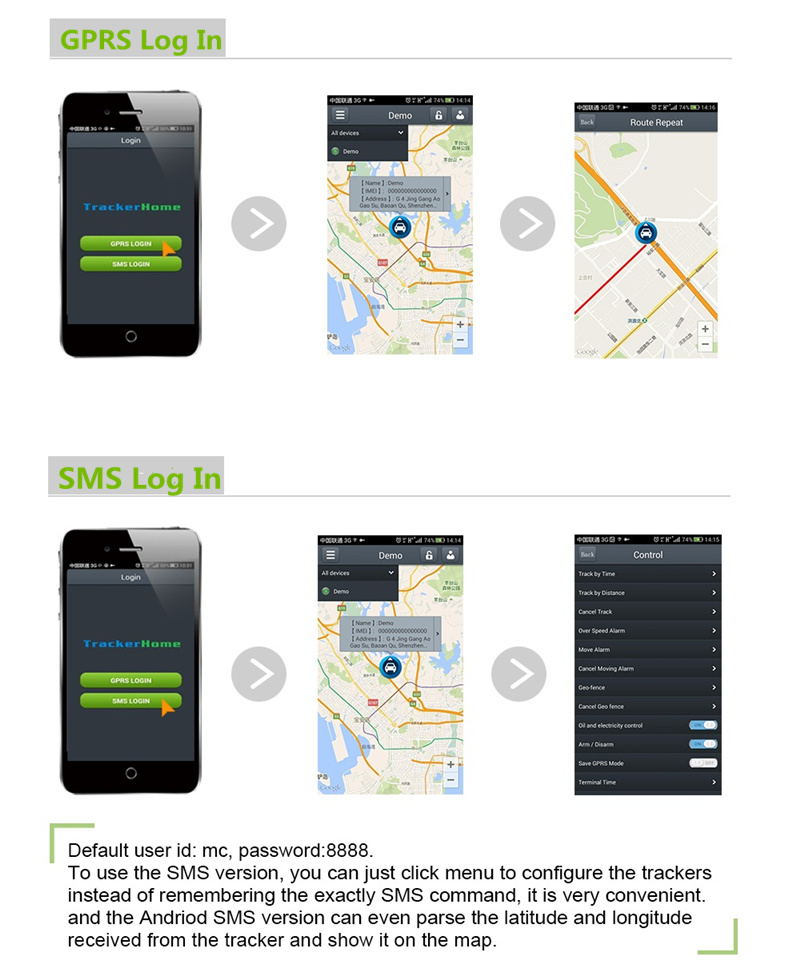

Online Tracking System

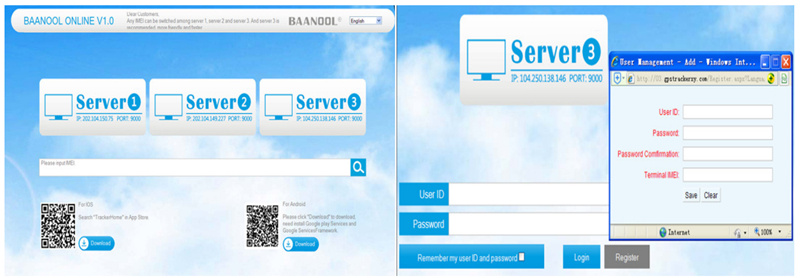

Users need to register an account on www.baanool.net before use web or APP platform, account  name and password is the same on web/APP platform.

Multiple Tracking Ways:

*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Web based online tracking on PC at our server
*Real time track on cell phone by APP

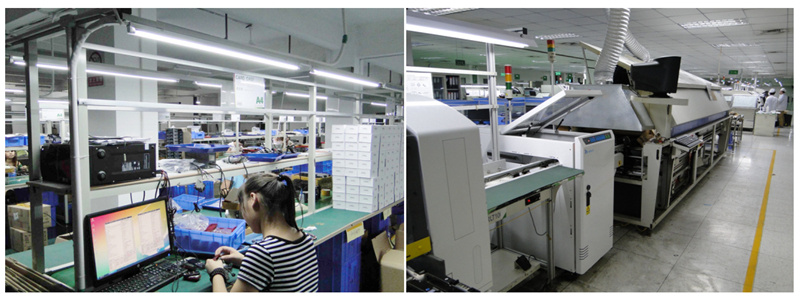

OUR FACTORY








Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.





Shipment and delivery

We will send the good out in 2-3 working days once received your payment with real time tracking No.
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
 Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.

FAQ

Q1. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q2. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery



Q5. How to use the GPS Tracker ?

A:Prepare an common GSM card can make device to work.



Q6: Does the GPS can work anywhere ?

A: Yes, if places has GSM GPS signal, our device is quad band 850/900/1800/1900MHz.



Q7: Can I use my own tracking system and server ?

A: Yes, we can share the device protocol for free.



Q8:  Can I make my own company LOGO and design on device case or color box ?

A: Yes, if for customize box: MOQ 500pcs; if for customize device case : MOQ 200-300pcs depends on model.


Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.








Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
