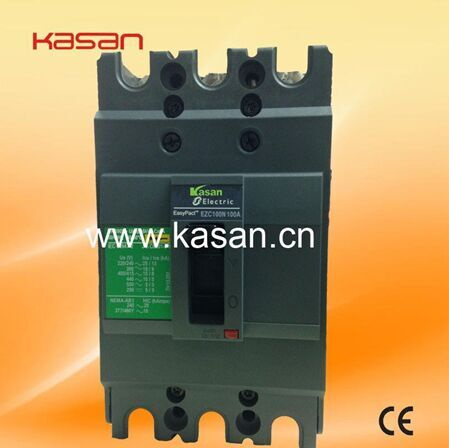

New Type Ezc Series Moulded Case Circuit Breaker

Name: New Type Ezc Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 697041712
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EZC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type.:	MCCB
Model Number:	Zec

Product Description

EZC Series Moulded Case Circuit Breaker

Application:

EZC series moulded case circuit breaker is one of breakers which adopts international advanced design,manufacture technology
to develop. The rated insulating voltage is 500V,suitable for AC 50Hz(60Hz),rated working voltage 500V or below,rated working
current is 15A TO 250A of circuit and use in distributiong electric energy.The product conforms to OEC60947-2 standard

Product performance characteristic description :

1, 15~630A, 5 plants the shell electric current rank
2, Compact NSD and EasyPact NSD are 3 extremely stationary types
3, Compact NSD biggest 36kA? K/The F two kind of minutes break ability
4, EasyPact NSD biggest 50kA? E/The M two kind of minutes break ability
5, Below 250A is thermomagnetism trip, the 400/630A distributor rotor trip, provides the overload
6, VigiCompact the NSD highest electric current specification to the 250A, 3/4 stationary type,
7, The trip with reports to the police does not trip two kind of functions
8, Leakage protection movement threshold value 100, 300, 500 mA 33 adjustable, operating time 200mS fixed not adjustable.

Type		EZC 60E	EZC60B	EZC100D	EZC160D
Poles number		3	3	3	3
Rated current ln(A)		15,20,25, 30 40,50,60	15,20,25, 30,40,50, 60,75,80,100	15,20,25, 30,40 ,50, 60,75,80,100	125,160
Rated operating voltage Ue(V) (50/60Hz)		500	500	500	500
Rated insulation voltage Ui(V)		500	500	500	500
Rated impuse voltage Uimp(KV)		6	6	6	6
Utilisation category		A	A	A	A
Rated limite breaking capacity lcu(KA)	220V/240V	7.5	25	25	85
	380V	7.5	10	18	18
	400V	7.5	10	15	15
Rated used breaking capacity lcs(%lcu)		25	50	50	50

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
