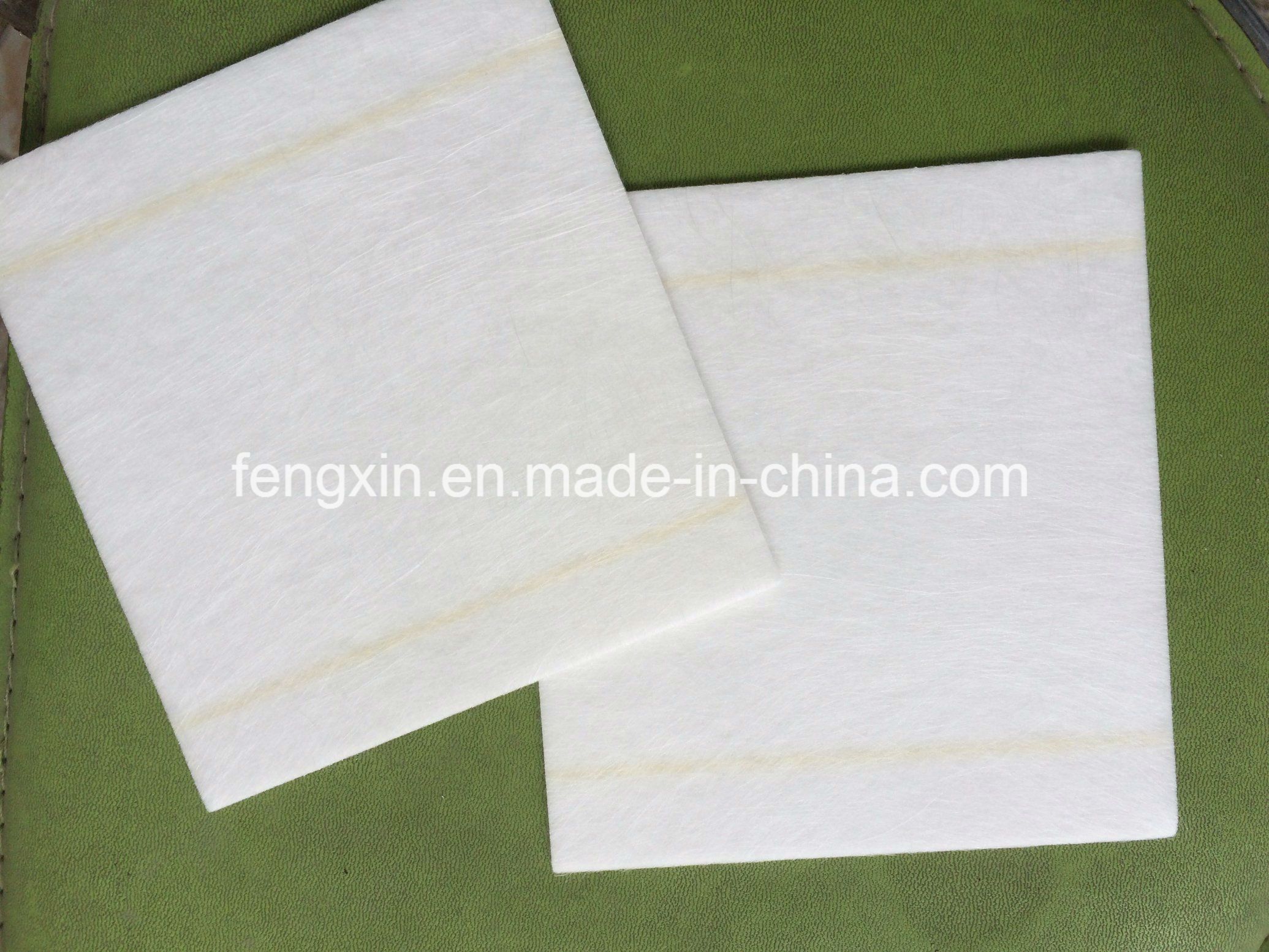

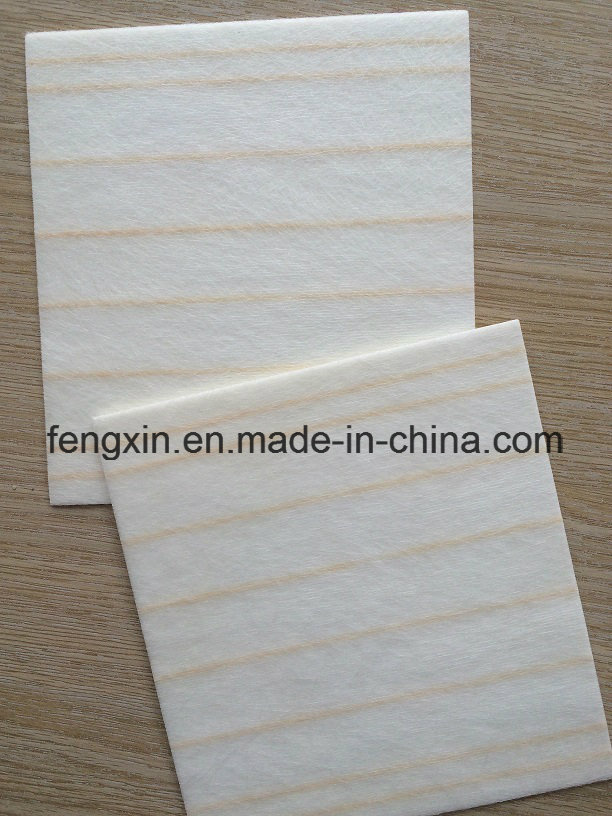

New Type Fiberglass 8lines Battery Insulation Separator Paper Sheet

Name: New Type Fiberglass 8lines Battery Insulation Separator Paper Sheet
Brand: all-electronics-online.com
SKU: 800957345
Availability: InStock
Rating: 5 (70 reviews)

Price:	US $ 1.1-1.12/Box
Min Order:	1/Box
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FX0001
Product Name:	New Type Fiberglass 8lines Battery Separator
Material:	Separator Paper with Glass Mat
Color:	White
Use:	in Batteries
Sample:	Avaliable
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Medium Discharge Rate
Shape:	Flat Battery
Rechargeable:	Chargeable

Product Description

New Type Fiberglass 8lines Battery Separator, Fiberglass Separator, Fiberglass Battery Separator, AGM Battery Separator, Lithium Battery Separator, Auto/Motorcycle Battery Separator, Li-ion Battery, VRLA Battery Separator, Glass Mat Separator

Product Specifications / Features
AGM Battery separator/Fiberglass separator for lithium
cells, are made from fiberglass and binder. These sheets
have advantages of high liquid absorptivity, low specific
resistance, excellent chemical stability and high
mechanical strength, etc. They can absorb all electrolyte
uniformly onto themselves and stablize the discharge
performance of cells:

Specification
Appearance neat, uniform and pinhole-free
Thickness (mm) 0.100+/-0.01; 0.180+/-0.02; 0.200+/-0.02
Type For button cell(LGM-K); for column cell(LGM-Z)
Tensile strength (N/15mm)
(0.10)>=5;(0.18,0.20)>=8
Porosity (%) >=70
Liquid absorptivity (%) >=500
Specific resistance(W-cm) <10

Thickness	mm	±5%d
Electrical Resistance	Ω.dm2	≤0.00050d
Tensile Strength	kN/m	≤2.0mm ≥2.0mm
Basic Weight	g/m2.mm	20Kpa
Max Pore Diameter	µm	≤20µm

Special specifications are available upon request.

Application:
Used as separator sheets between anodes and
cathodes in lithium-thionyl chloride (Li-SOCl2) cells or
lithium-manganesia (Li-MnO2 ) cells.

Samples test be welcome!
Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Small Order Acceptable

FX Group, as a high-tech enterprise which gathering the design creation, and production service in the fields of Fiberglass products like AGM Separator, Battery Separator, Composite Separator and the accessories of trucks like Roll Up Door, Aluminum Roller Shutter for Fire-fighting trucks, the ladders and some other accessories which was established in 2005 year and waslocated in Chuzhou city.

We had two plants with the total area of 40 thousand square meters, one plant was located in Chuzhou city and one plant was located in Changzhou city. The plant in Changzhou city major involved in the fiberglass products, the production capacity of our AGM battery separator which used in the VRLA battery arrive to 5000tons/year, we have total three production lines which imported from Japan, now our year exporting annual is about 5million USD per year, and the AGM battery separator was accepted and popular in India, Vietnam, Pakistan, Middle East and some other countries also. Our another plant which located in Chuzhou city major involved in the truck accessories, all the goods quality was making according to Europe standard, till now on we had been exported our truck roll up doors to Brazil, America, Iran, Dubai UAE, India and so on

FX has a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.

We inherit our persistent in service strategy of quality at the first priority and clients at the uppermost.

We will prvide more relaable products and offer the better, safety. And efficientcy services for you.

We are sincerely looking forward to cooperating and communicating with you.

Choose FX, Choose The Best!
