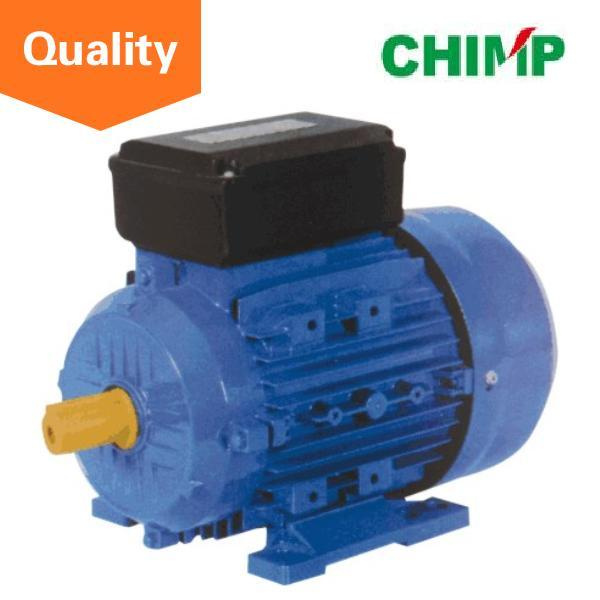

New Type My 0.37kw Aluminum Casing Single-Phase Capacitor Start Induction Motor (MY711-2)

Name: New Type My 0.37kw Aluminum Casing Single-Phase Capacitor Start Induction Motor (MY711-2)
Brand: all-electronics-online.com
SKU: 785229865
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 50PCS
Trade Terms:	FOB,CFR,CIF
Min Order:	100PCS
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY711-2
Markets:	Africa,Mid East,Eastern Asia
Base Center Height:	63-315mm
Rated Voltage:	220V/110V/240V
Power Range:	0.06kw-2.2kw
Nsulation Class:	B/F/H
Protection Class:	IP54 (or IP55)
Work System:	S1
Number Of Stator:	Single-Phase
Certification:	Ce
Brand:	Chimp / OEM

Product Description

Feature
MY series motor is Single-phase asynchronous aluminum capacitor-start electric motor. It is using the latest design from high quality material relevant IEC standard,developed in good performance,reliable operation,safety,aesthetic apperance,low noise,small vibration,light weight ,simple structure with easy maintenance.MY motors are suitable for air compressors,pumps,retrigeration,medical instruments,equipment and other needs fully loaded starter machine.

Rated Parameters
Base Center Height:63-315mm Power Range: 0.06-2.2 kW
Nsulation Class: B or F Protection Class: IP54 (or IP55)
Work System: S1 Voltage:110V/220V240V

Mounting Structure
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange

Type	Output	Rated current	Rated speed	η	Power factor	Locked-rotor current Rated current	Locked-rotor torque Rated troque	Pull-out torque Rated torque
	KW	IN(A)	nN(rmp)	(%)	(cos Φ)	Tst/TN	Ist/TN
MY561-4	0.09	0.57	2800	77	0.95	0.35	5.0	1.7
MY562-4	0.12	1.01	1330	53	0.90	0.55	5.0	1.7
MY631-4	0.18	1.47	1350	60	0.90	0.50	4.5	1.7
MY632-4	0.25	1.93	1360	62	0.90	0.50	4.5	1.7
MY711-4	0.37	2.77	1370	64	0.92	0.45	4.5	1.7
MY712-4	0.55	4.00	1370	66	0.92	0.45	4.5	1.7
MY801-4	0.75	5.29	1380	68	0.92	0.40	4.5	1.7
MY802-4	1.1	7.21	1380	70	0.92	0.40	4.5	1.7
MY90S-4	1.5	9.57	1390	73	0.95	0.35	5.0	1.7
MY90L-4	2.2	13.70	1400	77	0.95	0.35	5.0	1.7

FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container. However, we accept the small qty for trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Yes, sure. OEM is also our service scope.

Q: What are your payment terms?
A: 30% T/T as deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
