New Type of Magnetci Starter Contactor (NLE1)

Name: New Type of Magnetci Starter Contactor (NLE1)
Brand: all-electronics-online.com
SKU: 792665145
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NLE1-09/12/18
Material:	PA66 Nylon
Silver:	50%, 85% Silver
Voltage:	AC220V
Contact:	Welding
Certificate:	Ce

Product Description

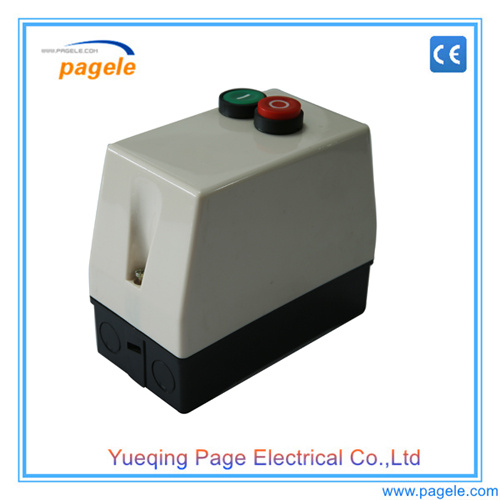

New type of Magnetci Starter contactor (NLE1)

First, introduce our Magnetic Starter special advantage is:

* Silver: 50%, 85% silver (no shortage);
* Contact: Welding;
* Material: PA66 Nylon, (not like others re-cycle)
* Smell: no bad smell, good material show

Second, is the Magnetic Starter technical data:

NLE1 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.

NLE1 Magnetic Starter Technical Data

Type	Rated	Maximum Power AC3 duty (KW)						SuitableThermal Relay(A)
	Current(A)	220V	380V	415V	440V	500V	660V
		230V	400V				690V
NLE1-9	9	2.2	4	4	4	5.5	5.5	LR2 D1312
								LR2 D1314
NLE1-12	12	3	5.5	5.5	5.5	7.5	7.5	LR2 D1316
NLE1-18	18	4	7.5	9	9	10	10	LR2 D1321
NLE1-25	25	5.5	11	11	11	15	15	LR2 D1322
								LR2 D2353
NLE1-32	32	7.5	15	15	15	18.5	18.5	LR2 D2355
NLE1-40	40	11	18.5	22	22	22	30	LR2 D3353
								LR2 D3355
NLE1-50	50	15	22	25	30	30	33	LR2 D3357
								LR2 D3359
NLE1-65	65	18.5	30	37	37	37	37	LR2 D3361
NLE1-80	80	22	37	45	45	55	45	LR2 D3363
								LR2 D3365
NLE1-95	95	25	45	45	45	55	45	LR2 D3365

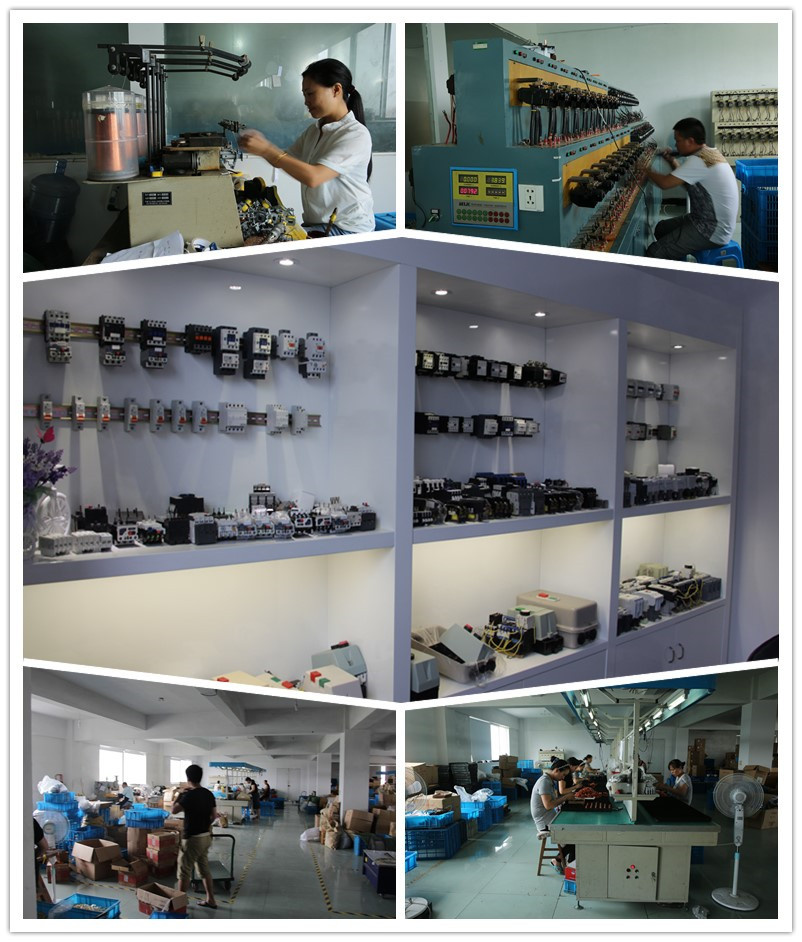

The under is our workshop, all contactors are good assembled and tested before ship.

Welcome to PAGE. We located in wenzhou city, where manufacture all of electrical goods for the distribution system.

With many years of the development, the company has its more focus on energy saving technologies and products.

Our vision is to become the best supplier who can assist customers with the maintenance products to get the market.

We believe that the values of integrity, honesty, good customer service and innovation will make us to be your best

Partner in the years to come, and we also believe in selecting partners that have the same values that we have.

"Quality is not an option, it is an obligation", forever to insist in our business attitude.
