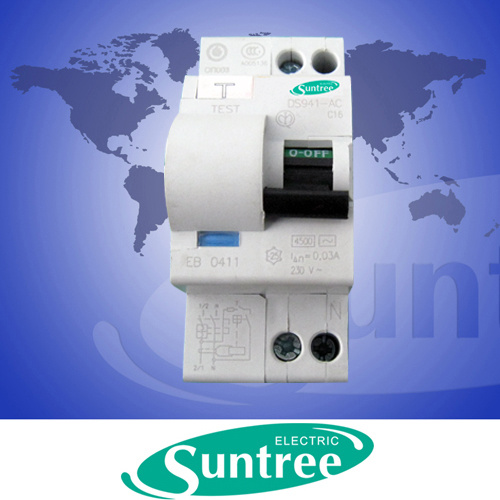

New Type Residual Current Circuit Breaker (RCCB)

Name: New Type Residual Current Circuit Breaker (RCCB)
Brand: all-electronics-online.com
SKU: 702303085
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Leakage Current:	30mA, 50mA, 100mA, 300mA
Pole:	2p, 4p/Dp Tp Fp
Brand:	Suntree/OEM/ODM
Current:	16~63A
Voltage:	230V/400V
Quality Assurance:	2 Years
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Oil-immersed
Structure:	Moulded Case Circuit Breaker
Certification:	CE, ISO9001

Product Description

Residual Current Circuit Breaker(RCCB)

Application scope
Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits. And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.

Standard
IEC61008
Normal operation and mounting requirement
Circumstance temperature -25° C ~ +40° C, average temperature not exceeding 35° C.
Altitude above sea level less than 2000 m.
Humidity not exceeding 50% at 40° C and not exceeding 90% at 25°

Installation class II or III.
Pollution class 2.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.

Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position

Main technical parameters.

Type	Rated current(A)	Leakage acting Current(mA)	Range of break-off	Rated voltage(V)
SSL1(F360) AC-2P	16A, 25A, 32A 40A, 63A	30mA, 100mA 300mA	0.5~1.0× IN	230V
SSL1(F360) AC-4P	16A, 25A, 32A 40A, 63A	30mA, 100mA 300mA	0.5~1.0× IN	400V
