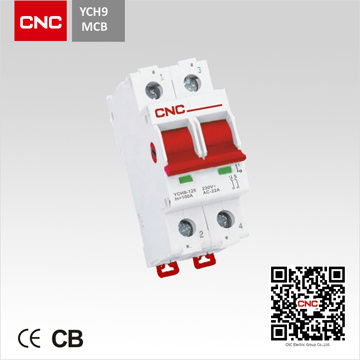

New Type Ych9 Disconnector (Isolating Switch)

Name: New Type Ych9 Disconnector (Isolating Switch)
Brand: all-electronics-online.com
SKU: 729457995
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 5.5-6.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCH9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole:	1,2,3,4
Function:	Isolating Switch
Rated Votage:	230/400V
Rated Current:	125A
Type:	Low-voltage
Installation:	DIN Rail

Product Description

YCH9 Disconnector(Isolation Switch)

Product Overview
YCH9-125 series isolating switch is suitable in the resistive circuit of AC 50/60HZ, rated voltage 230/400V, rated current up to 125A. It's used primarily for circuit's turning on or off in non-load ed situation. And it functions on connection and isolation between lines and power, especially suitable to isolate power effectively and prevent circuit breaker from closing accidentally when maintain the circuit in order to ensure the safe operation of maintainer.
Product standard: IEC600947-3, GB14048.3

Normal Working Condition
1. Working temperature: -25° C~+60° C
2. Altitude: Not higher than 2000m
3. Pollution Degree: 3
4. Installation Category: II, III
5. Use Category: AC-22A
6. Installation Method: Embedded vertical standard rail mounting
7. Wiring Method: Clamp connection wire with screw, tightening torque 2.5N. m

Item	Data
Rated Voltage Ue	AC230V, AC400V
Poles	1P, 2P, 3P, 4P
Rated current Ie	32A, 63A, 80A, 100A, 125A
Rated short time withstand current Icw	12Ie (Energization time is 1s)
Rated short-circuit making capacity Icm	20Ie (Energization time is 0.1)
Rated impulse withstand voltage Uimp	(1.2/50us, 2000m) 4KV
Mechanical life	8500
Electrical life	1500
Selection of copper wire installation	(See table below)
Rated current In(A)	Copper wire cross-sectional area
32	6
63	16
80	25
100	35
125	50

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
