Product Description

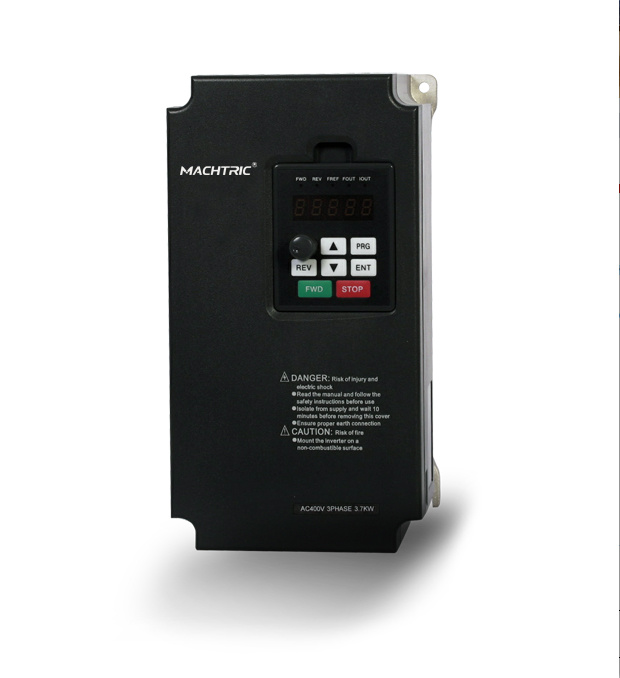

Product name: S3800E Series closed-loop vector control
S3800E series cloed-loop vetctor control --High performance: Control of asynchronous motor and synchronous motor are inplemented through the hign-performance current vector control technology.
Overload capacity 60s for 150% of the rated current, 3s for 180% (120%) of the rated current.
Ramp mode: Straight-line ramp; S-curve ramp; Four groups of acceleration / deceleration time with the range of 0.0~6500.0s
About Sanch Organization:
We are professional manufacturer under Sanch organization from Taiwan supplying with factory automation products like variable frequency inverter (AC drive),
Circular knitting machine controller, power controller and total solution for industrial electric control system as client's demands.
2000:
Sanch moved to China in 2000 and exported to more than 30 countries and areas
2005:
Since 2005 with our superior products quality and technical support service.
Sanch has been recognized as one of the "Top 10" Inverter manufacturer in China Taiwan and mainland in 2005.
2010:
From 2010 we start to make the FVR-Micro series inverter for Fuji Electric Japan. Also OEM for India Jeltron!
Why choose Sanch frequency inverter?
1. Easy operating system. --- easy but effective software, gentle touch achieve.
2. Stable performance--- best famous company ensure the quality all the time.
3. Excellent after sales service--- never leave you along.
4. Fast delivery --- safety delivery, we look after it all the time.
We looking forward to cooperate with you!
| Input voltage (V) | Power range (KW) |
| 220V | 0.4~3.7 |
| 380V | 0.4~1000 |
| 660V | 11~1000
|
Item |
S3800G |
Control mode | V/F control |
| Sensorless flux vector control (VC) |
| Cloed-loop vector control(CVC) |
Maximum frequency | Vextor control :0~320Hz |
| V/F control :0~3200Hz |
Input frequency esolution | Dgital setting :0.01Hz |
| Analog setting :0.025% of maximum frequency |
Startup torque | G type :0.5Hz/150%; 0 Hz/ 180%(CVC)
P type :0.5Hz/100% |
Speed range | 1:100(VC)
1:1000(CVC) |
| Speed stability accuracy | ±0.2%(VC)
± 0.02%(CVC)
|
| Torque control accuracy | ±5%(CVC) | |
| Overload capacity | G type : 60s for 150% of the rated current, 3s for 180% of the rated current
P type : 60s for 120% of the rated current, 3s for 150% of the rated curren |
| Torque boost | Auto boost
Customized boost 0.1%-30.0% |
| V/F curve | Multi-point curve
N-power V/F curve (1.2 power ,1.4 power,1.6 power,1.8power,square ) |
| V/F separation |
Two types :complete separation ; half separation |
| Ramp mode | Straight-line ramp
S-curve ramp
Four groups of acceleration /deceleration time with the range of 0.0.-6500s |
| DC braking | DC braking frequency :0.00HZ to maximun frequency
Braking time :0.0~100.0s
Braking action current value :0.0%- 100.0% |
| JOG control | JOG frequency range :0.00~ 50.00HZ
JOG acceleration /deceleration time :0.0~ 6500.0s |
| Onboard multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of terminal states |
| Onboard PID | It realizes process-controlled closed loop control system easily |
Auto voltage
Regulation (AVR) |
It can keep constant output voltage automatically when the mains voltage changes. |
| Overvoltage /Overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequenct tripping due to overvoltage /over current |
| Torque limit and control | It can limit torque automatically and prevent frequent over current tripping during the running process .Torque control can be implemented in the CVC mode |
| Support for the multiple PG card | Support for rotating transformer PD card , differential input PG card, resolver PG card and OC input PG card |
| Power dip ride through | Reduction so that the AC drive can continue to run for a short time |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive |
| High performance | Control of asynchronous motor and synchronous motor are implemented through the high -performance current vector control technology . |
| Timing control | Time range : 0.0~ 6500.0 mintes
|
| Communication Methods | MODBUS -RTU \ PROFIBUS -DP\ CAN |
| Protection mode | Motor short -circuit detection at power -on , input/output phase loss protection ,over current protection, overvoltage protection, under voltage protection , overheat protection and overload protection |
| Installtion Location | Indoor , free from direct sunlight , dust , corrosive gas, combustible gas, oil smol, vapour , drip or salt |
| Altitude | Lower than 1000m |
| Ambient temperature | -10-40de-rated if the ambient temperature is between 40 and 50 |
| Storage temperture | -20~60 |
