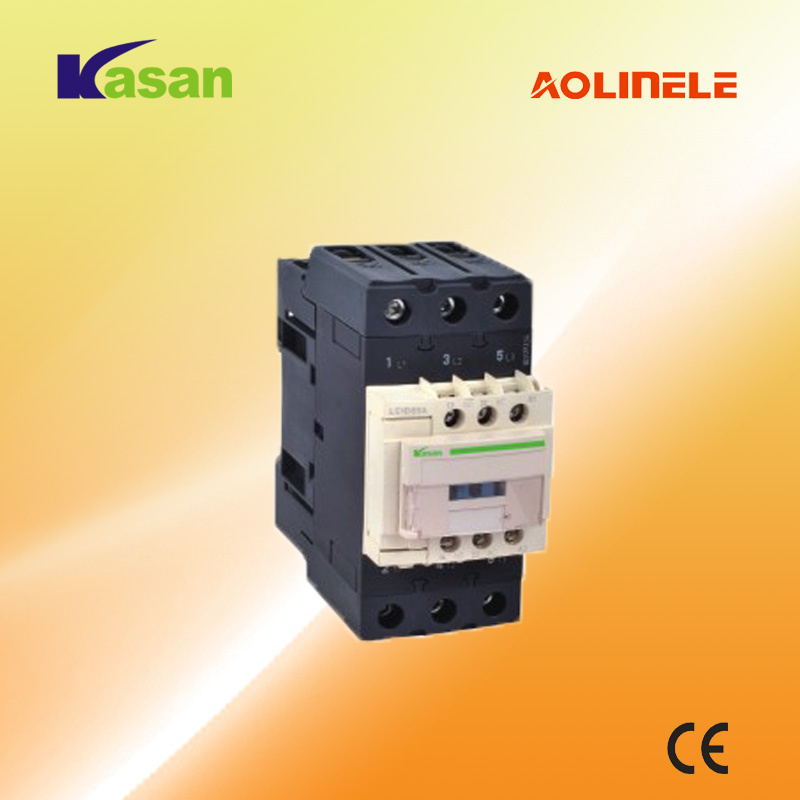

Newes Type Klc1-D40A/50A/65 AC Contactor

Name: Newes Type Klc1-D40A/50A/65 AC Contactor
Brand: all-electronics-online.com
SKU: 689982642
Availability: InStock
Rating: 4.9 (113 reviews)

Price:	US $ 2-10/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	3p
Type.:	Original, New
Voltage:	220V 380V
Size:	Miniature
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay

Product Description

Contactor LC1-D NEW series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V, rated operation current 9~330A under AC-3 duty. It is mainly used for making/ breaking electric circuits at a long distance & for frequent starting/ stopping & controlling AC motors. It is used in combination with thermal relay to compose a magnetic motor starter. The products according with the standards such as IEC60947-4-1 & GB14048.4.

Type	Rated	Conventional	Rated	Control power(kw)					No .of	Installation
	insulation	thermal	operation						contacts	Method
	voltage(V)	current(A)	current(A)
				220V	380V	415V	440V	660V

LC1-0910	660	20	9	2.2	4	4	4	5.5	3P+1NO	1with two
										screws
LC1-0901	660								3P+1NC	235mm din
										rail
LC1-1210	660	20	12	3	5.5	5.5	5.5	7.5	3P+1NO

LC1-1201	660								3P+1NC

LC1-1810	660	32	18	4	7.5	9	9	9	3P+1NO

LC1-1801	660								3P+1NC

LC1-2510	660	40	25	5.5	11	11	11	15	3P+1NO

LC1-2501	660								3P+1NC

LC1-3210	660	50	32	7.5	15	15	15	18.5	3P+1NO

LC1-3201	660								3P+1NC

LC1-4011	660	60	40	11	18.5	22	22	30	3P+NO+NC	1with three
										screws
										275mm
LC1-5011	660	80	50	15	22	25	30	33		0r
										35mm din
LC1-6511	660	80	65	18.5	30	37	37	37		rail

LC1-8011	660	125	80	22	37	45	45	45

LC1-9511	660	125	95	25	45	45	45	45
