Newest Design 2 Row Tpn D4 D6 D8 Three Phase MCB Distribution Board

Prod Model:	MDA-2 TPN
Phase:	Three
Busbar Material:	Copper
Earth Bar Material:	Copper
Netural Bar Material:	Copper
Mounting Type:	DIN-Rail
Front Window:	Customized
Finish:	Plastic Powder Coated
Delivery Time:	1X40hq in 25 Days
Body Color:	White or Customized
Type:	Distribution Metering Box
Structure:	Fixed Board
Application Range:	Household
Brand:	Sieben Electric

Product Description

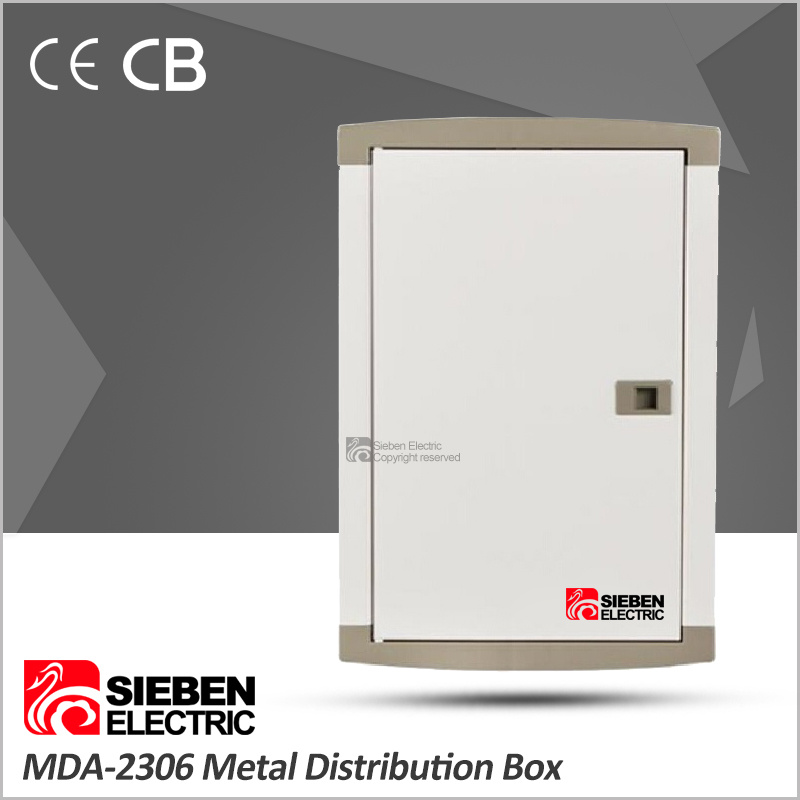

MDA-2 Series Three Phase Metal Distribution Box



Application

MDA-2 series three phase distribution box has been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Din-rail designs for indoor applications.


Features

Made out of high quality steel sheet of up to 0.8 - 1.0 mm thickness
Matt-finish polyester powder coated painting
Knockouts provided on top and bottom of the enclosure
Accept all Din-rail type miniature circuit breakers
Suitable for AC 50/60Hz, rated voltage 230/415V, rated current up to 100A
Wider enclosure offers the easy wiring and the excellent heat dissipation
Flush and surface mounted designs


Specifications


Way No.	Model Code	Breaker Pole No.	Main Switch	Spare Parts
4	MDA-2304	12	1 Piece 3/4 Pole 100A	Earth Bar Natural bar Bus Bars
6	MDA-2306	18
8	MDA-2308	24

Detailed Pictures

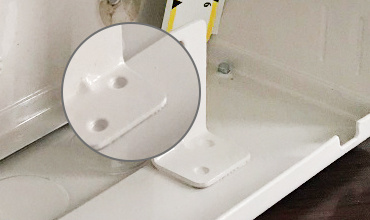

	Hard hinges provide thousands times of ON-OFF opperations

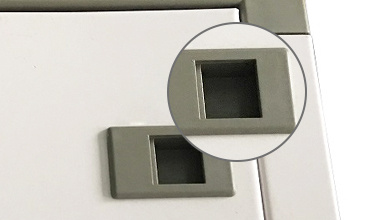

Pure new nylon material plastic parts and lock

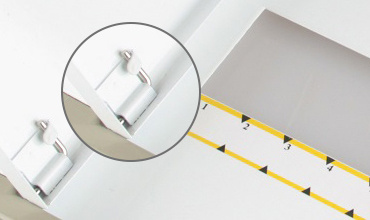

	Accurate welding and plastic powder painting technology

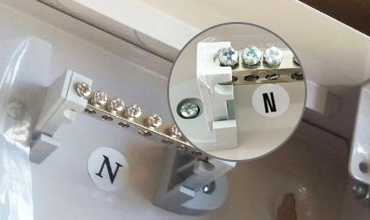

Pure copper earth bar and netural bar

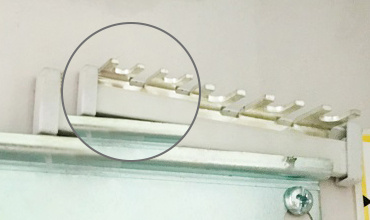

	Pure copper fork/pin type busbar with insulated plastic cover

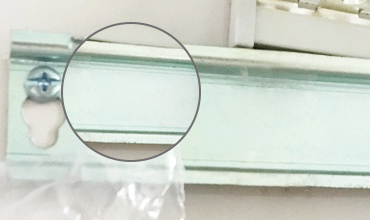

35mm standard metal din-rail suitable for all din-rail type MCBs

FAQ

1. Package & Shipping
1 pc in 1 box and 2 boxes in 1 carton. Single box can be designed according customers' requirements.
Nearest ports for shipping are Wenzhou, Ningbo & Shanghai

2. Delivery Time
20 days for 1X20ft container, 25 days for 1X40HQ container

3. Payment Terms
30% as deposit, and the balance against delivery. (T/T, L/C in EXW, FOB, CNF, CIF...)

4. Sample Policy
After the prices confirmed, we can send you a sample for your checking quality.
Our sample is for free but the express cost should be affored by your side.

5. R&D, Customization & Design
We have the professional team to make R&D, Customization & Design according to customers' requirements or ideas.
We can also produce the goods according to customers' drawings.

6. About After-sales Services
All of our goods undergoes a comprehensive control of hydraulic tests in order to guarantee the quality.
If some goods that you received has any problem, please contact the sales persons who will give you solution in 24 hours.
