| Prod Model: |
MT100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
RFID Car Alarm/Engine Idle Alert |
| Support Ota Function: |
Yes |
| Harsh Acceleration Alert/Braking Alert: |
Yes |
| Oil Leaking/Refuel Alarm: |
Yes |
| Fuel Management: |
Yes |
| Remote Engine Cut: |
Yes |
| Support RFID Alarm: |
Yes |
| GSM Module: |
M35 |
| GPS Module: |
Ublox 7 |
| Data Logger: |
4MB |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Model: |
Mt100 |
| Screen Size: |
No Screen |
| Chip: |
GPS Chip: Ublox 7 GSM Chip: M35 |
| Brand: |
Topshine/Neutral |
| Certification: |
Ce/RoHS/SGS |
Product Description

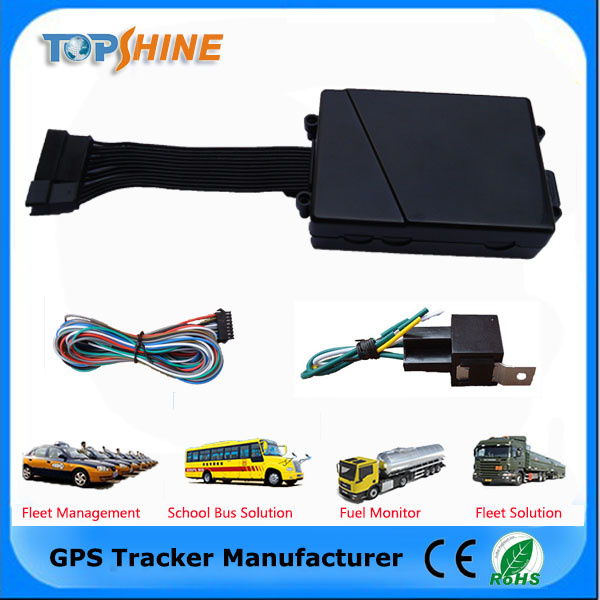

Mini Waterproof Motorcycles Car GPS Tracker Free Tracking Platform 3G-MT100
(2 years warranty, Free Tracking Platfrom (PC base & Android),CE & RoHS & SGS certification)
Product Overview
MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, builtin antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles.
Applications
* Vehicle Tracking & Security
* Fleet Management
* Equipment Security
* Asset
* RFID alarm(optional)
Specification
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 92g |
| Input voltage | DC 9V~36V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~75°C |
| Humidity | 5%~95% |
| Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 4M Byte |
| Sensor | Motion sensor |
| GSM Frequency | Module E:
UMTS/HSDPA 900/2100MHz
GSM 900/1800MHz
Module A:
UMTS/HSDPA 850/1900MHz
GSM 850/900/1800/1900MHz Module T: 850/2100MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input 3 Output
1 Analog Input 1 RS232 Port 1 USB Port |
| Packing Measures: |
|
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x550 | 0.26 | 1 set |
| Carton | 470x340x310 | 5.2 | 20 sets |
Features & Functions
| Support 3G network | Fuel stolen alarm |
| GPS tracker + RFID car alarm | Harsh braking / acceleration alarm |
| GSM jamming detection, anti jamming | With 650mAh inbuilt rechargeable battery |
| Ublox7 GPS industrial high sensitive module | Two way tracking, GPS/intelligent GSM positioning |
| OTA (Update software over the air firmware by SMS) | Powerful and multifunctional tracker for comprehensive Fleet management |
| Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area | Get real time vehicle position address street name /Google map link by SMS |
| cut off engine remotely ,unlock lock vehicle door | Crash sensor for accident alarm (Optional) |
| Support fuel sensors, monitor petrol level (Optional) | OBD2 connector to read DTC data from ECU car computer (Optional) |
| Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc | Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function (Optional) |
Package & Standard Accessories
MT100 unit: 1 unit
8P wire : 1 piece
Relay: 1 piece
Optional Accessoires:
* Fuel Sensor
* Smart Phone Reader
* Crash Sensor
* Temperature Sensor
* Active RFID Kit
* Passive RFID Kit
* USB configure Cable
* OBDII : $16
* Alcohol sensor
Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
