| Prod Model: |
TA680 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Newest Hot Built-in Camera LCD Screen GPS Taxi Tracker TA680
About Topshine
Topshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions. We are real GPS tracker manufacturer who have
worked at gps tracker and car electron since 2005 year, we have our own engineer team,they are good at customize for our clients.

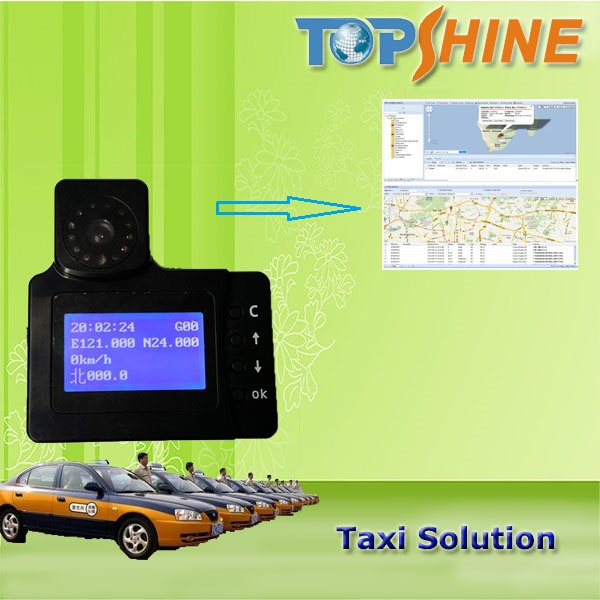

TA680 is a newly developed GPS taxi tracker, Built-in Camera& Microphone & Speaker &SD card slot& Control Button & LCD Screen, can be used for tracking and management of automobile and taxi etc .
it is equipped with ARM9 high speedy microprocessor. Its functions also very powerful, It supports OTA function, supports edit and send notification message from the platform server, supports 4MB flash memory & 4GB data logger for GSM blind area , It is preferred that you manage car rental and taxi
Applications
Taxi Real Time Tracking
Taxi Security/Anti-Hijack
Fleet Management
Functions
*. Real time tracking by SMS or by GPRS (TCP/UDP)
*. Locate by SMS with Google map's link
*. ARM9 high speed microcontroller

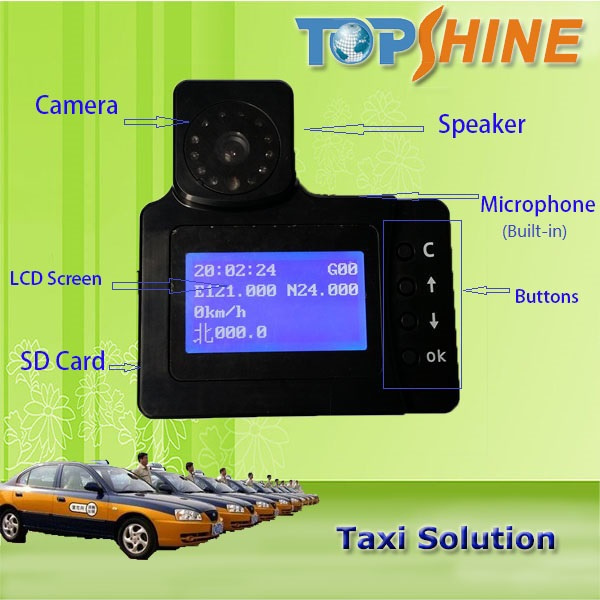

*. All in one designed: GPS tracker + camera + Microphone + Speaker + LCD Screen + SD card slot + Control Button.
*. Internal backup battery
*. Harsh acceleration/braking alert
*. OTA (update firmware from over the air upgrading) function
*. Edit and send notification message from the platform server
*. User can check the car's physical address (city,street,etc) by SMS (optional, need center's support)
* Over speed alert / Geo-fence alert
*. 4MB flash memory + 4GB data logger for GSM blind area
*. RS-232 serial port reserved.
Specifications
Items | Specifications |
Dimension | 130*90*32mm |
Screen size | 3.1 inches |
Weight | 283g |
Input voltage | +9V - +35V / 1.5A |
Back-up Battery | 850mAh |
Velocity | 515 meters/second (1000 knots) max |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% Non-condensing |
Altitude Limit | 18,000 meters (60,000 feet) max |
Microphone | built-in |
Cold start | 42sec., average |
Hot Start | 1 sec., average |
GSM Frequency | Quad Band (GSM 850/900/1800/1900MHz) |
GPS Module | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |
GPS Frequency | L1, 1575.42 MHz |
Velocity Accuracy | 0.1m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
Channels | 20 channel all-in-view tracking |
C/A Code | 1.023 MHz chip rate |
LED | 2 LED lights to show GPS/GSM working status. |
Flash Memory | 4 MB |
Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
Our Service
Our price comes with high quality products, free tracking software in our server, lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.

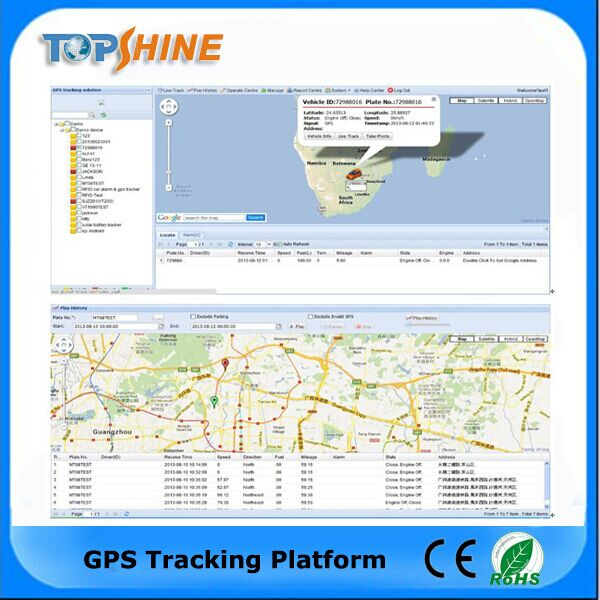

Lifetime free tracking software
Shipping
We usaually use DHL, FeDex, EMS express for small orders. You can also assign your special couriers.
Unix box: color box or neutral white box / yellow box.
Shipment: 3 to 5 days after payment.
Our factory
Our factory
Our factory has experienced continuous expansion since it opened in 2009. The factory is now over 1,000 square meters in size and is filled with professional equipment, such as SMT and machines alike, to better sever our customer base.
Why choose us
1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.
2.Provide two free tracking platform, one is for PC ,other is for moblie
phone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:
PC : www.global-track.net
Mobile : www.global-track.net/login.jsp
user name: demo
Password: 1
3. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.
4. We are good at customization job, if you have any good idea in gps tracker, we will
try to achieve for you.
