Prod Model: |
VT1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Is Customized: |
Yes |
Dimension: |
130*80*28mm |
Weihgt: |
197g |
Input Voltage: |
9 ~ 36 VDC |
Backup Battery: |
850 mAh |
Free GPS Tracking Platform: |
Yes |
Warranty: |
Yes |
GPS Chip: |
Ublox 7 |
GSM Chip: |
Quectel M35 |
Product Description
Multifunctional Car GPS Tracker VT1000 with Camera/SD Card Store Photos
VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Comprehensive fleet management
Features
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function

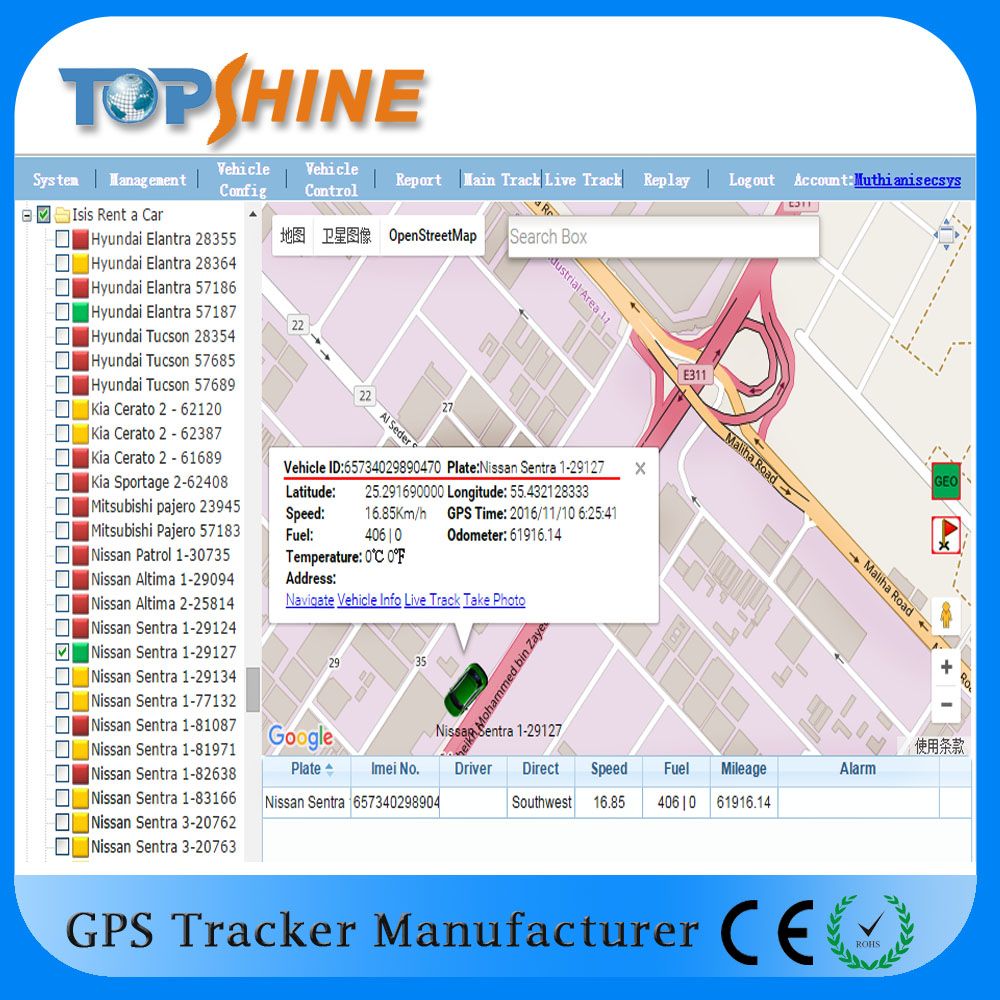

* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Wiretapping/remote listening
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 4 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
* Accident Alarm (optional)
* Two way communication (Listen & Speak, need speaker support) (optional)
* Oil leaking/Refuel Alarm (need fuel sensor support) (optional)
* Accident alarm (need crash sensor support) (optional)
* Support max 64G SD card store (optional)
* Photo with location & driving information log function (need camera support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, support max 4 fuel sensor manage (optional)
Package and Accessories
Optional Accessories
Camera
Fuel sensor
Temperature sensor
Active RFID kit
Passive RFID kit
SD card
Crash sensor
Why Choose TOPSHINE
>> Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trade company.
>> 13 year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control and rigorous tests before shipment, ensure our superior and proven reliable quality. Tests include high and low temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.
Inquiry Now!!
Technical Parameters: |
Power Supply | +9V - +35V / 1.5A |
Backup Battery | 850mAh |
Dimension | 104mm x 62mm x 24mm |
Installation Dimension | 104mm x 83mm x 24mm |
Weight | 150g |
Operating temperature | -20° to 65° C |
Humidity | 5% to 95% Non-condensing |
Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
GPS Module | latest GPS SIRF-Star III chipset |
GPS Sensitivity | -158Db |
GPS Frequency | L1, 1575.42 MHz |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Position Accuracy | 10 meters, 2D RMS |
Velocity Accuracy | 0.1 m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
Hot start | 1 sec., average |
Warm start | 38 sec., average |
Cold start | 42 sec., average |
Altitude Limit | 18,000 meters (60,000 feet) max. |
Velocity Limit | 515 meters/second (1000 knots) max. |
LED | 2 LED lights to show GPS/GSM working status. |
Flash Memory | 4MB |
Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
Packing Measures: | |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 225x160x55 | 0.65 | 1 set |
Carton | 470x340x310 | 14 | 20 sets |
