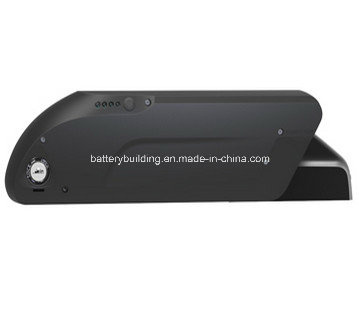

Newest Style E-Bike Battery Pack with Matching Controller
| Price: |
US $ 100/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
BBG-36V |
| Voltage: |
36V |
| Capacity: |
11.6ah |
| Battery Cell: |
Panasonic NCR18650PF 2900mAh Power Cell |
| Configuration: |
10s4p |
| Continuous Discharging Current: |
15-25A |
| Max Discharging Current: |
80A |
| Battery Charger: |
42V-2.5A Aluminum Charger |
| Certification: |
Ce RoHS |
| Warranty: |
2 Years Warranty |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium Rechargeable Power Battery |
| Rated Capacity: |
11.6ah |
| Standard Voltage: |
36V |
| Usage: |
Lithium Battery for E-Bike, E-Scooter |
Product Description
2016 newest downtube lithium battery 48V battery pack for electric bicycleSpecification:Cell: Panasonic NCR18650PF 2900mah power cells
Configuration:10S4P

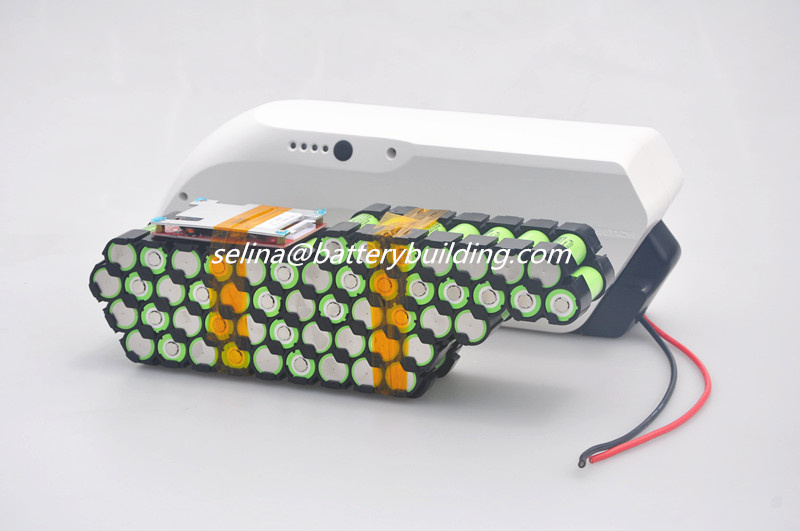

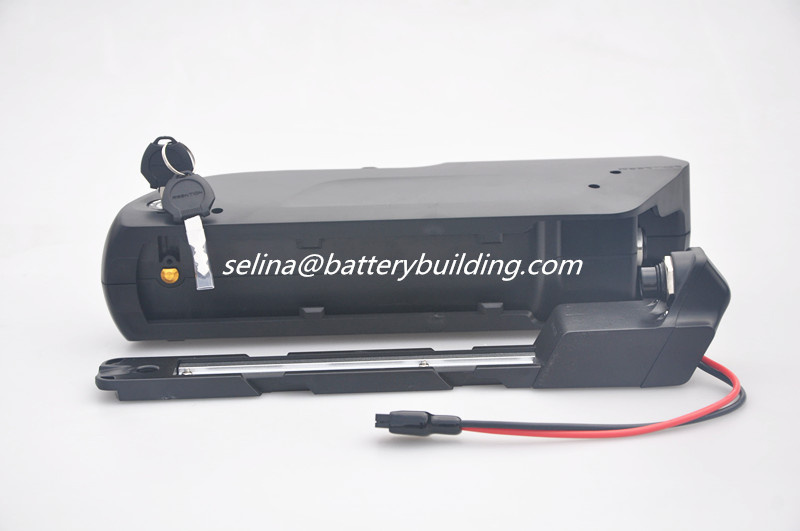

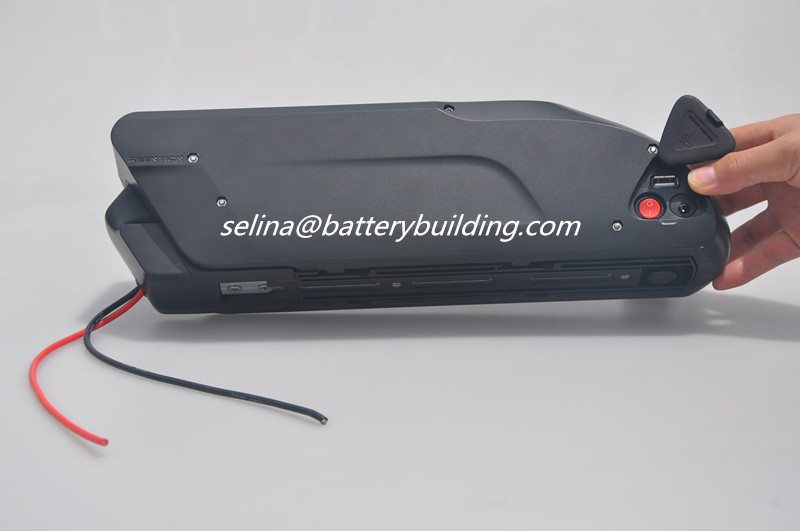

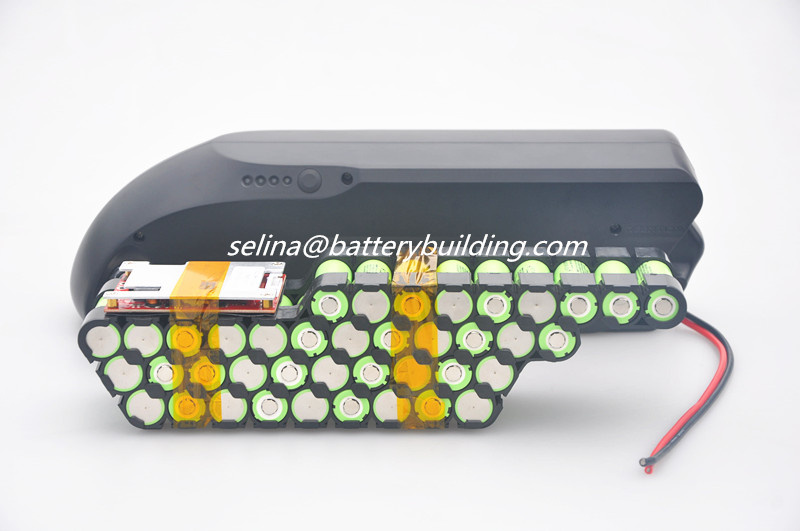

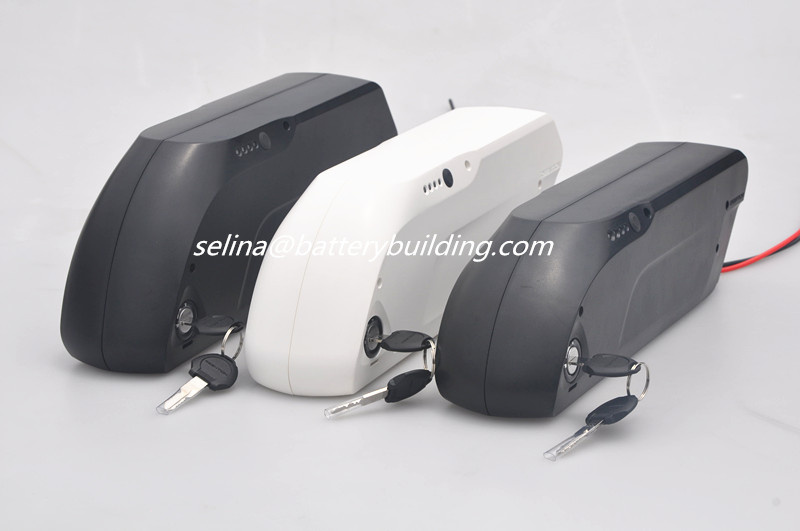

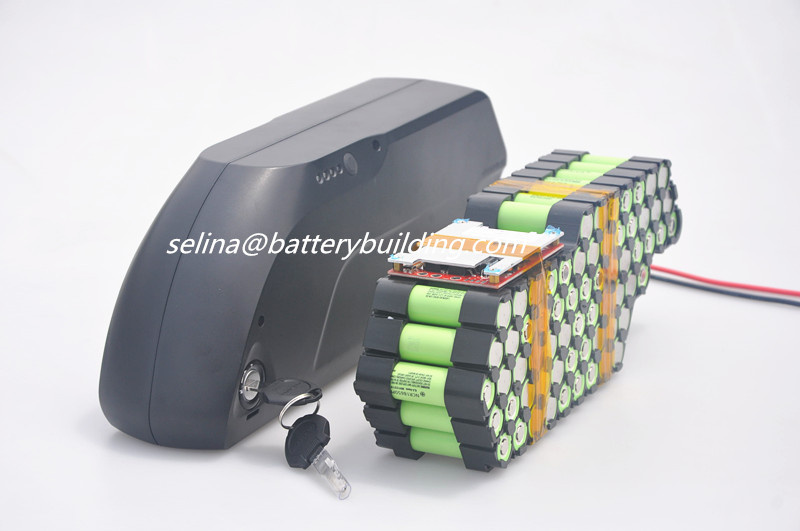

Voltage:36VCapacity:11.6AhColor: Black/whiteOptional Cells:Samsung:22P,26F,29E,32E,33G Panasonic:18650PF,32BD,18650B LG:B4,C2,D1,E1,MG1,MJ1. Feature:DC2.1 charging Port (optional 5Pin high current charging Plug)Four levers LED capacity indicator Standard USB PortMatching with 9 mosfets high-power controller25A continuous and 80A peak discharging current.2-5Pins discharging plug Photos for reference:
Application:Motor home, stored energy, power supply, electric lights, golf bus, electric bicycle, electric tricycle, e-scooter, e-skateboard, all kinds of car etc.Advantage:1.800 times cycle life and good shock resistance.2.Low self-discharge and good discharge performance at low temperature.3.Strong charging acceptance and quick-charging capability.4. Strong over-discharge resistance and charge retention.5. Maintenance-free.6. Excellent performance of large discharging current, obvious advantages in startup and climbing.7. High temperature performance.8. Environmental friendly.9. Lighter weight and smaller size.10. Most safe no explosion no fire.11. The voltage and capacity can be customized. 12. All battery we provide will be strictly tested before shipping and have 2 years warranty, also the testing report can be provided.13. We offer OEM & OEM service.Term of trade1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.2. EXW, FOB and CIF all are available.3. Production lead time:7-10 working days.4. Sample can be delivered in 3-5 working days.5. Discounts are offered based on large quantities.6. Loading port: Shenzhen or HK. Company Information:Shenzhen Battery Building Industry Co., Limited is a professional battery manufacturer in Shenzhen, China, including lithium, LiFePO4, LiMn2O4 and LiCoO2 batteries. Products are widely applicable to E-bikes, E-motorcycles, EVs, golf carts, lawn mowers, electric tools and toys, portable power supply, safe mining equipment, UPS, telecommunication backup power, photovoltaic, wind power storage etc. Contact:
You are always welcome to visit our factory, please contact us freely call us at +86-13267068372. Selina always here to help you.
SHENZHEN BATTERYBUILDING INDUSTRY Co., Limited is a profestional hi-tech industry company. We are specialized in different kinds of lithium batteries and engaged in the related products, include Lithium batteries, LiFePO4 batteries, BMS/PCM/CMB, RC/Lipo Batteries, and related battery chargers.
Various lithium battery cells models are provided, and can be customized the battery packs according to customers' Detailed requirements and applications. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in E-bikes, backup power, laptop, electrical toys, helicopter models, electrical cars, power tools and so on.
Our products are exported to all over the world, like Europe, USA, Canada etc. Our company focuses on the development of battery quality with our own research centre and technical team in battery developing, quality controlling and producing. Our aim is "to keep improving new product technology, to take Environment Protection as our responsibility; To provide customers with excellent service and technical support; To make our products much more environment-friendly and safer. "
If you hany any inquiry and question, please just contact us.
We are looking forward to establishing relationships with you in the near future.
