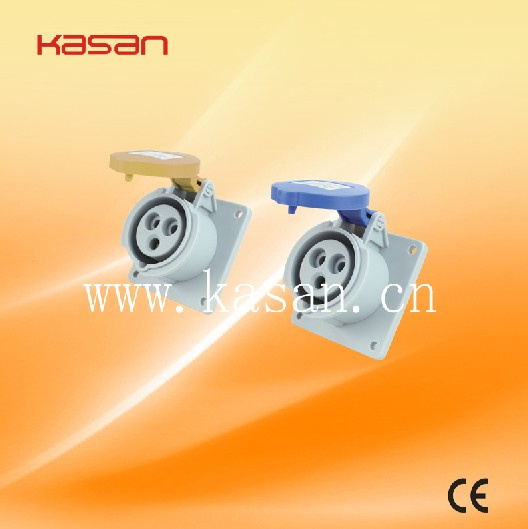

Newest Type IP55 Industrial Socket 3p+N+E

Name: Newest Type IP55 Industrial Socket 3p+N+E
Brand: all-electronics-online.com
SKU: 694520692
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 1-20/Piece
Trade Terms:	FOB
Min Order:	60/Piece
Pay Type:	L/C,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IP55
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue,Red
Protection Degree:	IP55
Type:	Without Switch
IP Rating:	IP55
Application:	Residential/General-Purpose

Product Description

The introduction of our products:
Industrial plug and socket is compliance with the GB11918~11919-20014 national standard, and it's equivalent with IEC60309-1, -2 and EN60309-1, -2, UL 1682, BS4343 standards and joint the international standard.
The new generation industrial plug and socket and connector suit for industrial three phase and single phase power connector equipment, the design of the shape has the unique features, the material is different, but the basic dimension can satisfy the national and international standard, according the difference in useful and installation method and water-proof class can be classified in the socket which is used in the power supplying line, and apparatus socket which used in the equipment, which receives the electric power. Inlay type, wall-installation type, common type splash proof water-proof type.

E-013	PLUG	16A	220-250V~	2P+E	IP44	BLUE	100pcs	53.52628	0.039m³	12.8	11.8
E-213	COUPLER	16A	220-250V~	2P+E	IP44	BLUE	100pcs	662829	0.054m³	14.4	13.4
E-113	WALL SOCKET	16A	220-250V~	2P+E	IP44	BLUE	60pcs	453734	0.057m³	14.4	13.4
E-313	S. PANEL SOCKET	16A	220-250V~	2P+E	IP44	BLUE	120pcs	46.538.541	0.073m³	17	16
E-014	PLUG	16A	380-415V~	3P+E	IP44	RED	100pcs	53.52628	0.039m³	14	13
E-214	COUPLER	16A	380-415V~	3P+E	IP44	RED	100pcs	662829	0.054m³	14.5	13.5
E-114	WALL SOCKET	16A	380-415V~	3P+E	IP44	RED	60pcs	453734	0.057m³	15	14
E-314	S. PANEL SOCKET	16A	380-415V~	3P+E	IP44	RED	120pcs	46.538.541	0.073m³	17.4	16.4
E-015	PLUG	16A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	463226.5	0.039m³	11	10
E-215	COUPLER	16A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	483231	0.048m³	13	12
E-115	WALL SOCKET	16A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	453734	0.057m³	16	15
E-315	S. PANEL SOCKET	16A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	120pcs	46.538.541	0.073m³	17.6	16.6
E-023	PLUG	32A	220-250V~	2P+E	IP44	BLUE	60pcs	463226.5	0.039m³	12.6	11.6
E-223	COUPLER	32A	220-250V~	2P+E	IP44	BLUE	60pcs	493231.5	0.049m³	14	13
E-123	WALL SOCKET	32A	220-250V~	2P+E	IP44	BLUE	60pcs	4837.535	0.063m³	16.8	15.8
E-323	S. PANEL SOCKET	32A	220-250V~	2P+E	IP44	BLUE	120pcs	46.54347	0.094m³	19	18
E-024	PLUG	32A	380-415V~	3P+E	IP44	RED	60pcs	463226.5	0.039m³	13.6	12.6
E-224	COUPLER	32A	380-415V~	3P+E	IP44	RED	60pcs	493231.5	0.049m³	15	14
E-124	WALL SOCKET	32A	380-415V~	3P+E	IP44	RED	60pcs	4837.535	0.063m³	17.8	16.8
E-324	S. PANEL SOCKET	32A	380-415V~	3P+E	IP44	RED	120pcs	46.54347	0.094m³	19.5	18.5
E-025	PLUG	32A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	4934.529	0.049m³	15.4	14.4

E-225	COUPLER	32A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	45.535.736.5	0.059m³	17.4	16.4
E-125	WALL SOCKET	32A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	60pcs	4837.535	0.063m³	19.8	18.8
E-325	S. PANEL SOCKET	32A	220-380V~/ (240-415V~)	3P+N+E	IP44	RED	120pcs	46.54347	0.094m³	20	19

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
