Newly Developed Fashionable Mini Portable GPS Tracker (A18)
| Price: |
US $ 19-20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A18 |
| Battery: |
450mAh |
| Working Time: |
2-3days |
| Button: |
One Button |
| GPS Antenna: |
Built-in High Sensitivity Ceramic Antenna |
| Size: |
40X38X15mm |
| Net Weight: |
21.5g |
| GSM Antenna: |
FPC |
| SIM Card Slot: |
Micro SIM Card Slot |
| Color: |
White, Black |
| Giftbox Size: |
12cml*8.3cmw*5.5cm H |
Product Description

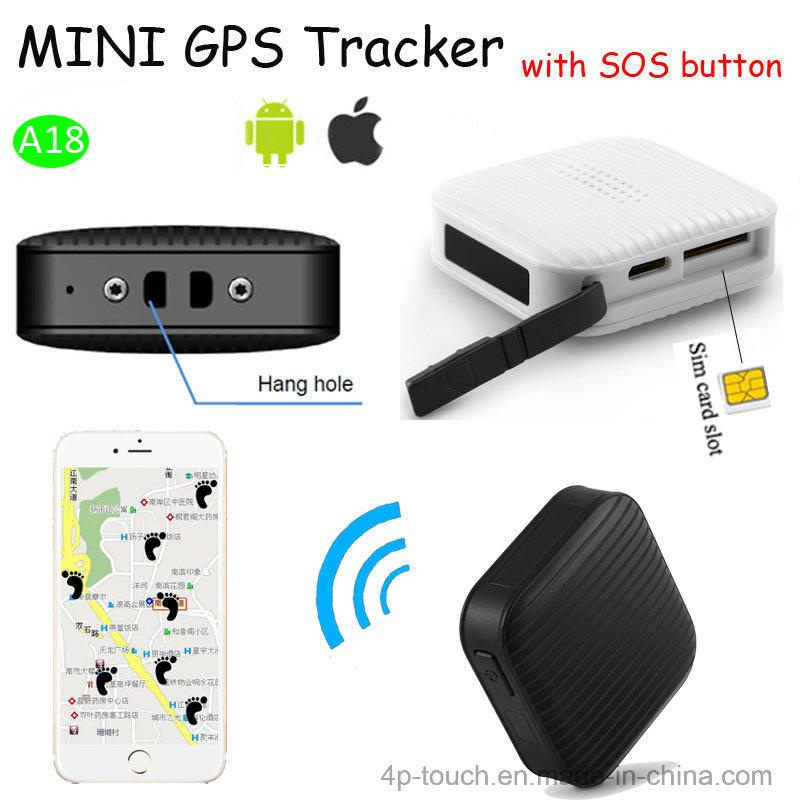

Mini GPS Tracker is a new generation of personal GPS tracking gadget for kids/elderly/pets/personal asset. It is compact, accurate, discreet and reliable. With Quad-Band GSM connectivity, the GPS Tracker works anywhere in the world.
Specifications:| Structure parts | type | Specification |
| ID design | Fashion |

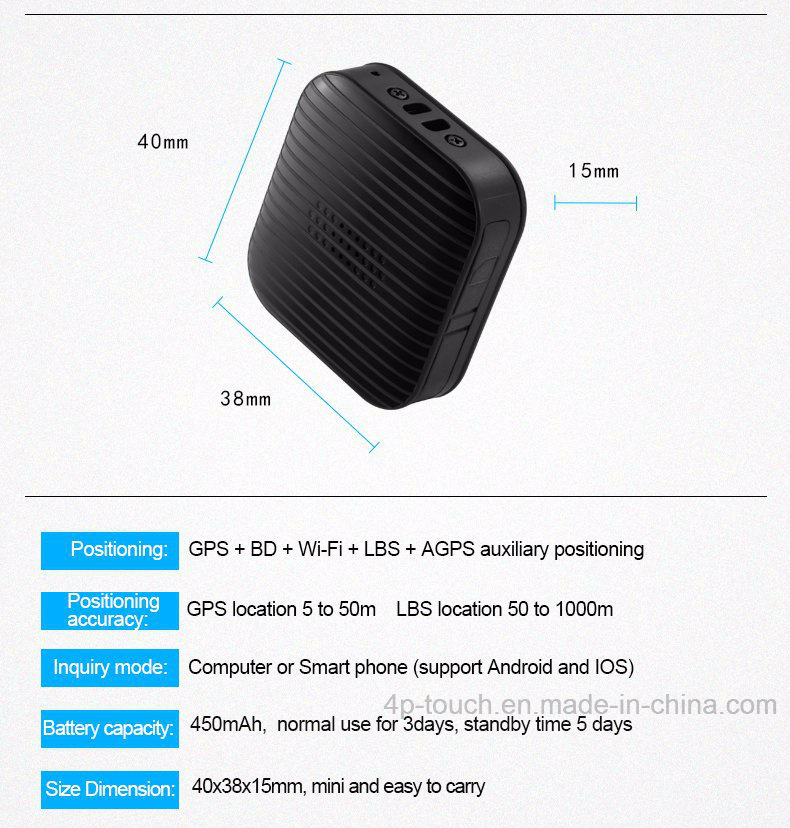

| Whole machine size | 40x38x15mm |
| Weight | 25g |
| Color | white/ black |

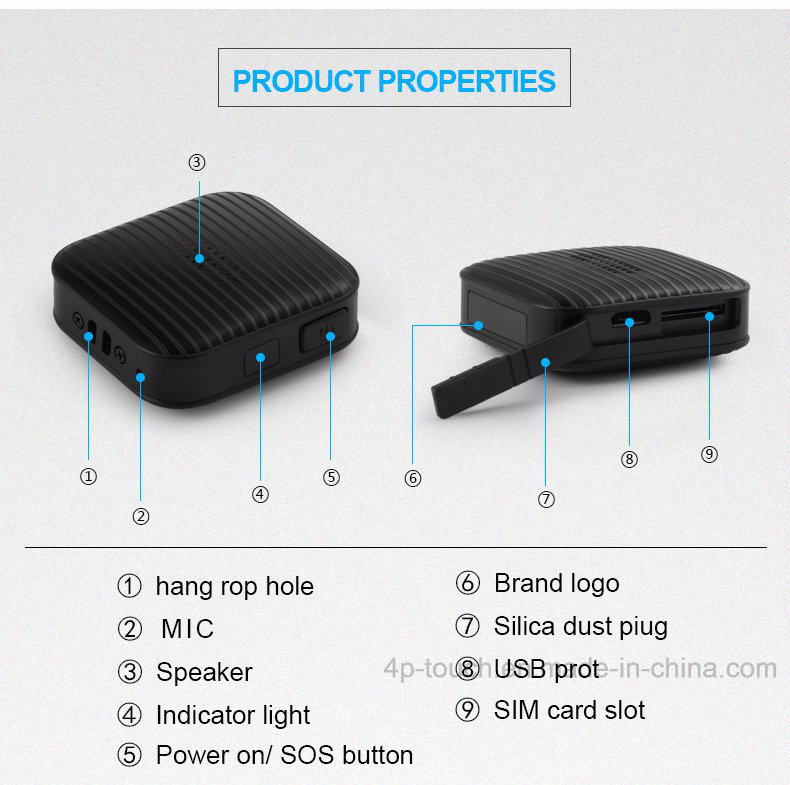

| Button | Power button/SOS button |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Battery | 450mAh |
| SIM card type | Micro SIM |
| G-senser | Support |
| I/O port | USB charge |
| Hardware parts | Chip | MTK MT2503 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15m |
| LBS location accuracy | 100~1000m |
| Minimum standby current | Less than 0.5 mA |
| Average standby current | Less than 2.5 mA |
| Average working current | About 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | Can pass 3C and CE certification |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Bluetooth | no |
| G-senser | Supported |
| MIC | Supported |
| Software parts | Support operate system | Support 2.3 and above system, IOS5.0 and above |
| Call function | Two way talk/remote voice monitor |
| Language support | Simplified Chinese, English |
| Positioning | GPS+LBS positioning |
| Support AGPS | Cool start 26 seconds positioning |
| Call function | SOS call ,voice monitoring,whitelist do not disturb mode |
| Power management | Ultra-low consumption of power managment, intelligent dormancy |
| One key emergency | SOS one button emergency call ,auto-dailing |
| Smart Geo-fence | Can automatic alarm when out of range |
| Historicial route | Can check three months' historical route |
| Wireless upgrading | Software remote upgrading, remote debugging maintence , remote setting parameters |
How to use it?
1,Install the SIM card
2 ,Setup apn for access of network
SIM card in some countries need to setup apn before access to GPRS network, please contact the SIM card operator or check the website of the SIM card for the apn information.
Setup APN
Command: Example Reply SMS pw,123456,apn,apn name,user name,password,MCCMNC#apnname=wap.tmobil.cl,
user name=wap, password=wap, MCC=730, MNC=02,
then the SMS will be: pw,123456,apn,wap.tmobil.cl,wap,wap,73002# apn:wap.tmobil.cl;user:wap;passwork:wap;userdata:73002.
3, Install the app
User can check GPS tracker remotely via android/iOS app or PC,
For Android,
You can download the app from "play store" by searching "AIBEILE"
For iPhone,
You can download the app from "app store" by searching "ABEILE"
For PC:
http://202.105.131.199:8010/login.aspx
4 ,Login the app
Click the icon "AIBEILE" on desktop and then login the ID and the password of the device (the default password is 123456). User can login by ID or by username, user need to contact reseller to register an username if need to login by username.
Our Service
1.All of our products can be offered at OEM, such as custom logo, packaging, etc.
2.All our product will be strictly tested before we delivered to you.
3. we will try our best to provide the lowest shipping cost for you.
Warranty
1.Our product warranty is one year since the date of purchase.
2.We have the after-sale service. If any comments or questions after received our item, please e-mail us immediately, we will answer you as soon as possible.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
