| Prod Model: |
hta cis 12/20kv 3x240mm cable |
| Rated Voltage: |
12/20kv |
| Test Voltage: |
45 Kv/50 Hz |
| Standard: |
NF C 33-226 |
| Bending Radius (Min.): |
18 X D of Cable |
| Application: |
Public Power Distribution Network 12/20 Kv |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SGS |
| Sheath Material: |
PE, HDPE, LDPE, LLDPE |
| Wire Core Material: |
Aluminum |
| Model: |
Al/XLPE/HDPE |
| Brand: |
Hongda |
Product Description

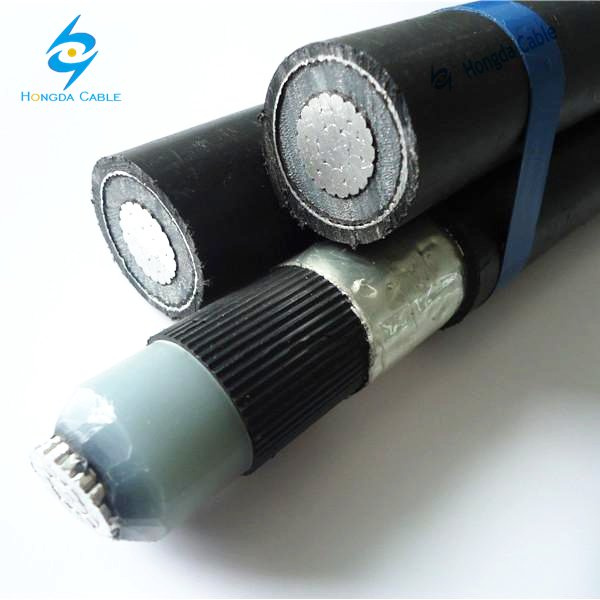

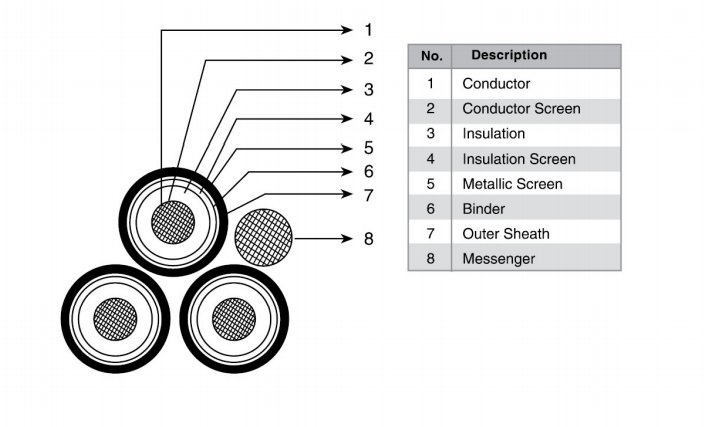

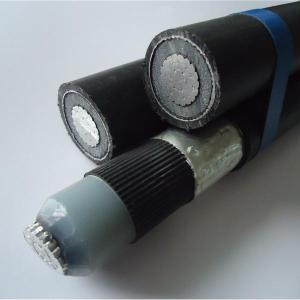

NF C 33-226 hta cis 12/20kv 3x240mm MV cableNF C 33-226 hta cis 12/20kv 3x240mm MV cable STRUCTURE:
|
| Phase Conductor | Aluminium |
| Conductor Screen | Extruded semi-conductive layer. |
| Insulation | XLPE. |
| Insulation Screen | Extruded semi-conductive layer. |
| Outer Sheath | PE, HDPE, LDPE, LLDPE. |
| Color | Black |

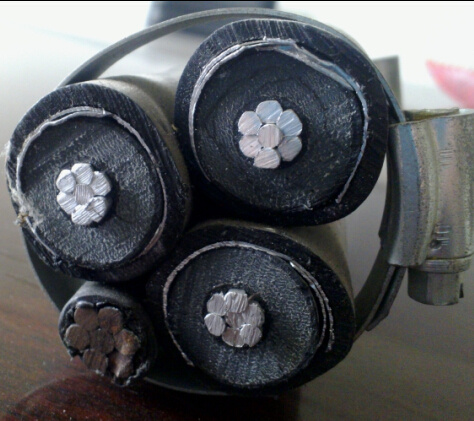

| Assembly | Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay. |
Application:NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV.
The cable can be used for overhead power transmission . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , etc.
Standard
NF C 33 226
hta cis 12/20kv 3x240mm cable Specifications:Dimensions
| Product Name | Conductor material |
| 1x50 | Aluminum |
| 3x1x50 | Aluminum |
| 1x95 | Aluminum |
| 3x1x95 | Aluminum |
| 1x150 | Aluminum |
| 3x1x150 | Aluminum |
| 1x240 | Aluminum |
| 3x1x240 | Aluminum |
| 1x630 | Aluminum |
| 1x240/0.15 | Copper |
| 3x1x240/0.15 | Copper |
OPTIONS
NF C 33-226 cables can be manufactured with the following options:
- Copper conductor
- Other voltage
- Other section
- Grounding conductor
- Thicker aluminium screen
- Bunch
- Re-enforced burying resistance (EDR) is ensured with an extruded polyethylene protection.

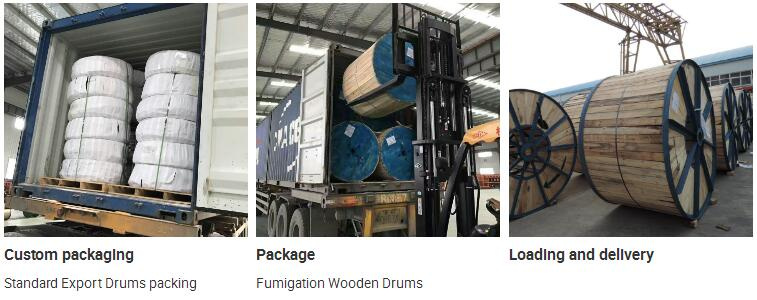

Packing shipping
PackingSteel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:FOB/C&F/CIF/DAP quotation are all available.
