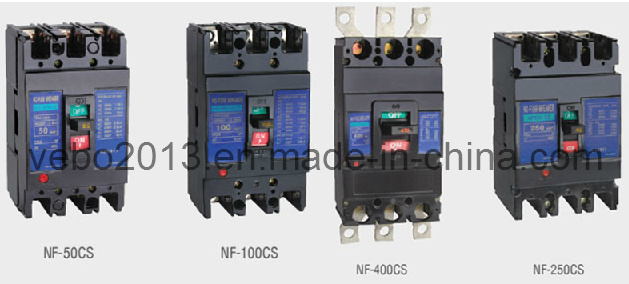

Nf-CS Series MCCB Circuit Breaker

Name: Nf-CS Series MCCB Circuit Breaker
Brand: all-electronics-online.com
SKU: 688312682
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 4.51/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	NF-CS
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Low Price:	Good Quality
Type:	Nf-Cw
Function:	MCCB
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Energy-storage Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breakers

Product Description

NF-CS Series circuit breaker features reliable and steady performance, reasonable structure. Beautiful appearance and small volume ect. It can be used in the circuit of 50Hz or 60Hz, rated voltage up to 600V. It is used to distribute electric energy
indistrbution network and overload or short circuit protection power equipment, and also can be used in transformation of circuit in frequency under the normal conditions.

Basic Info

Model NO.: NF-CS 50,100,250,400
Arc-extinguishing Medium: Air
Structure: Moulded Case Circuit Breaker
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Energy-storage Type
Installation: Fixed
Speed: High-Speed Circuit Breaker
Export Markets: Global

Additional Info

Trademark: VIBBA or as require
Packing: Standard Export Package or as Require
Production Capacity: 5000PCS/Month
Origin:Wenzhou, China

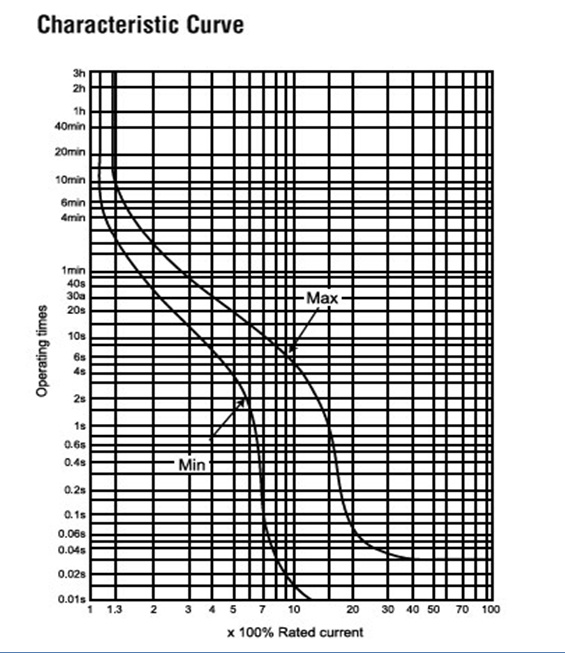

Characteristic Curve

Type	Rated current of trip(In A)	Rated insulation voltage(V)	Mode of connection	On & Off capacity
NF-30CS	3,5,10,15,20,30	500	Mode after board insertion mode	AC380V/1.5kA
NF-50CS	10,15,20,30,40,50	600		AC380V/5kA 415V/2.5kA
NF-60CS	10,15,20,30,40,50,60	600		AC380V/5kA 415V/2.5kA
NF-100CS	60,75,100	600		AC380V/18kA 415V/10kA
NF-250CS	125,150,175,200,225,250	600		AC380V/18kA 415V/10kA
NF-400CS	250,300,350,400	600		AC380V/25kA 415V/25kA
NF-630CS	500,600,630	600		AC380V/35kA 415V/35kA
NF-800CS	600,700,800	600		AC380V/35kA 415V/35kA
NF-1250CS	630,700,800,1000,1250	600		AC380V/50kA 415V/35kA

You are warmly welcome into Yueqing Vebo International Co., Ltd.

Your presence is honoured & your any comments/enquiries/suggestions would be appreciated. Established in 2011, We are one younger company with new management and thinking. We are not a big company and never exaggerate, but we have enough conditions to do your works as well as you hope.

1. )never change the raw material or main parts once we agreed,

2. )full order 100% tested exactly according to standard,

3. )finish your order within the lead time,

4. )no any mistake happened on printing, packing, boxes, labels and cartons,

5. )we have regular skilled workers and can finish large quantity order easily.

6. )English communications is available in twenty-four hours.

We heartily hope to establish good relations with you in the coming days!
