NGT and NGTC fast acting fuses

Performance standard: IEC60269;GB13539.1;GB/T13539.4
Rated voltage: 380V-1000V
Rated current: 10A-630A
Breaking capacity: 100KA
Protection type:aR
Installation mode: NGT bolted; NGTC plug-in
Features: High breaking capacity, good current limiting characteristics, stable characteristics, low I²t value and power consumption, external blown fuse indicator or microswitch.
It applies to the protection for frequency control, reactive power compensation, excitation power, semiconductor equipment and SCR rectifier.
Model description:

Specification parameters of NGT fast acting fuse

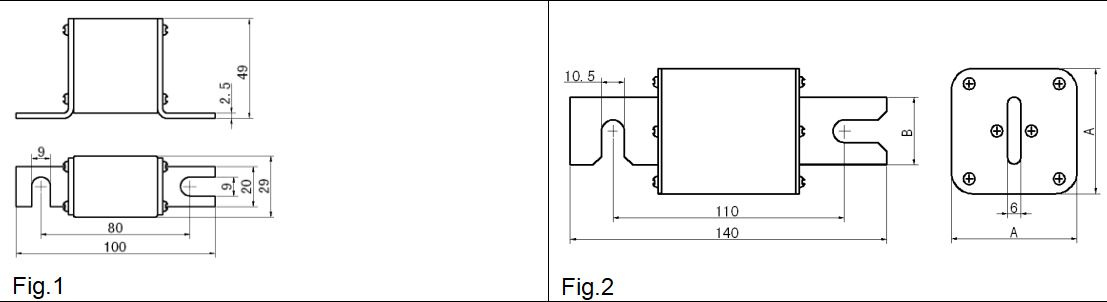

Model	Rated Voltage (V)	Rated Current(A)	Dimension (mm)		Breaking capacityKA	Outline Drawing No.
Model	Rated Voltage (V)	Rated Current(A)	A	B	Breaking capacityKA	Outline Drawing No.
NGT00	380, 690, 800	10, 25, 32, 40, 50, 63, 80, 100, 125, 150			100	Fig.1
NGT1	380, 690, 800, 1000	25, 32, 40, 50, 63, 80, 100, 125, 150	48	26		Fig.2
NGT2	380, 690, 800, 1000	100, 125, 160, 200, 250, 300, 355, 400	58	32
NGT3	380, 690, 800, 1000	350, 400, 450, 500, 560, 630	67	38

Specification parameters of NGTC fast acting fuse

Model	Rated Voltage (V)	Rated Current(A)	Dimension (mm)				Outline Drawing No.
Model	Rated Voltage (V)	Rated Current(A)	A	B	C	D	Outline Drawing No.
NGTC00	380, 690, 800	25, 32, 40, 50, 63, 80, 100, 125, 150	29	78	57	15	Fig.3
NGTC1	380, 690, 800, 1000	100, 125, 160, 200, 250	48	135	62	20
NGTC2	380, 690, 800, 1000	200, 250, 280, 315, 355, 400	58	150	72	25
NGTC3	380, 690, 800, 1000	355, 400, 450, 500, 560, 630	67	150	82	32

Square tube bus hook fuse base

Performance standard: IEC60269
Maximum voltage: see table
Maximum load current: see table
Features: compact structure, easy installation and reliable insulation; for NGT fuses and hook type (Z type) fast acting fuse
Specification parameters of square tube bus hook fuse base
Table 1

Model	Maximum voltage(V)	maximum load current(A)	Dimension (mm)							Outline Drawing No.
Model	Maximum voltage(V)	maximum load current(A)	A	B	C	D	E	F	H	Outline Drawing No.

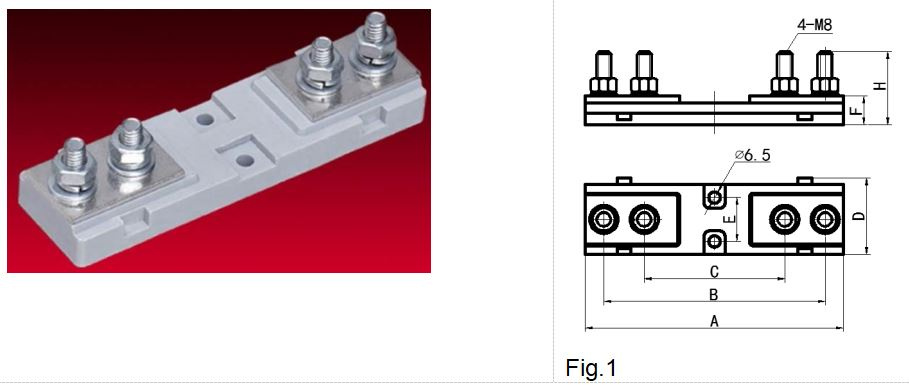

RDZ-00	1000	200A	147	126	80	43	25	16	38	Fig.1

Table 2

Model	Maximum voltage(V)	maximum load current(A)	Dimension (mm)									Outline Drawing No.
Model	Maximum voltage(V)	maximum load current(A)	A	B	C	D	E	F	G	H	K	Outline Drawing No.

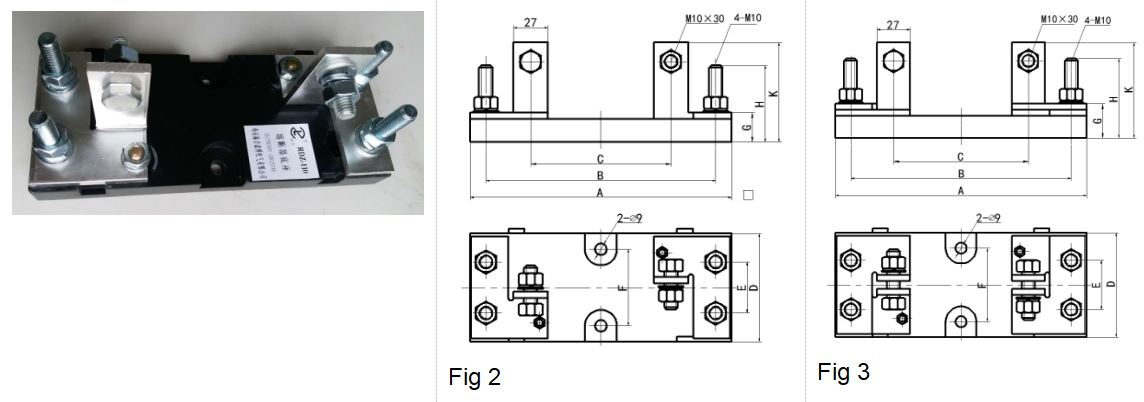

RDZ-80	1000	800	205	150	80	85	40	60	23	63	78	Fig.2
RDZ-80S	1000	1800	205	150	80	85	40	60	28	63	78	Fig.3
RDZ-110	1400	800	205	180	110	85	40	60	23	63	78	Fig.2
RDZ-110S	1400	1800	205	180	110	85	40	60	28	63	78	Fig.3
