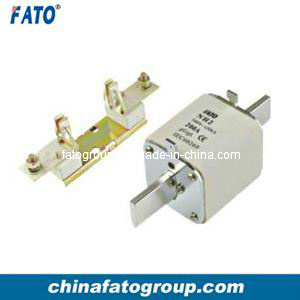

NH Low Voltage Fuse and Base

Name: NH Low Voltage Fuse and Base
Brand: all-electronics-online.com
SKU: 669929505
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Overcurrent Protection
Breaking Capacity:	Low Voltage Circuit Breakers
Type:	Circuit Breaker

Product Description

Product Description:

Application:
It is applicable indusrtial electrial distributing installation of AC50Hz(or60Hz)rated voltage 500/690V and 400V, rated current 1250A and below. It is provided with the fenction of the protection against overload or short eircuit.
The Product conforms to IEC269 and VDE0636 standards with all of the rating at the world advanced level.
Specifications:

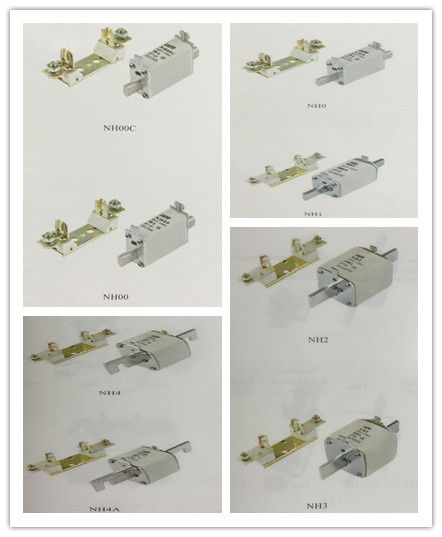

Type	Fuse link rated current(A)	Rated Voltage(V)	Weight(kg)	Fuse base type	Rated current(A)	Weight(kg)
NH00C	2 4 6 10 16 20 25 32 35 40 50 63 80 100	500 690	0.16	sist101	160	0.16
NH00	10 16 20 25 32 35 40 50 63 80 100 125 160	500 690	0.16	sist101	160	0.16
NH1	20 25 32 35 40 50 63 80 100 125 160 200 224 250	500 690	0.64	sist201	250	0.64
NH2	35 40 50 63 80 100 125 160 200 224 250 315 350 400	500 690	0.96	sist401	400	0.96
NH3	315 350 400 425 500 630	500 690	1.2	sist601	630	1.2
NH4	630 800 1000 1250	400	2.8	sist1001	1250	2.8

Why do you choose us?

FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
FATO group has more than 2800 staff, more than 18000 M² production area.
Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..

Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.

Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
