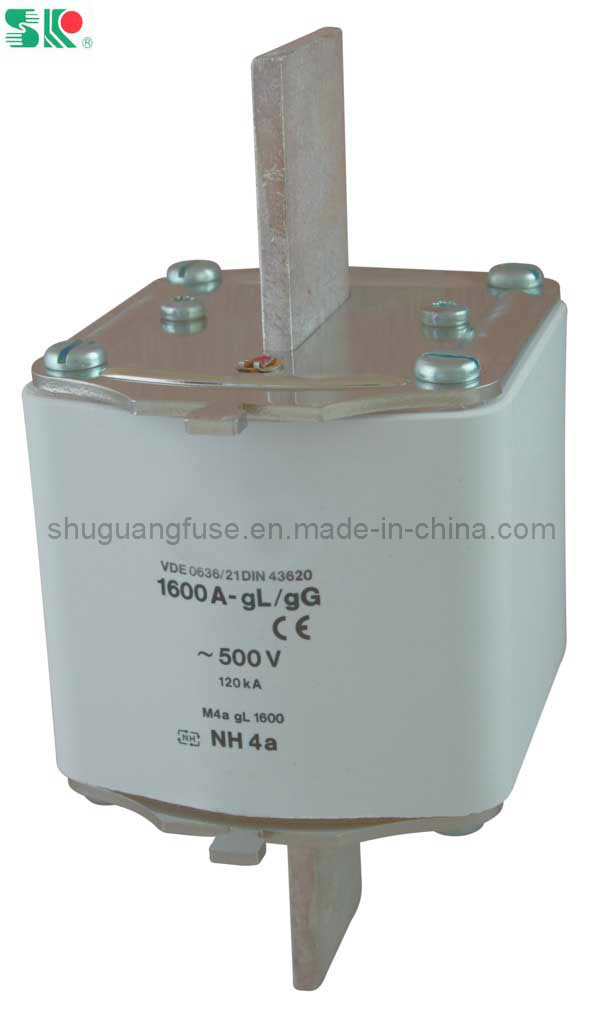

Nh4 Series Ceramic HRC Low Voltage Fuses

Name: Nh4 Series Ceramic HRC Low Voltage Fuses
Brand: all-electronics-online.com
SKU: 670353731
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 12-13.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NH4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Ceramic
Color:	White
Weight:	2200g
Rated Voltage:	500V
Rated Current:	1600A
Operation:	Electric Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-extinguishing Medium:	Quartz Sand
Breaking Capacity:	Low Voltage Circuit Breakers
Type:	Fuse

Product Description

NT Low Voltage Fuse and Base

Application
NT low voltage H. R. C. Fuse is light in weight, small in size, low in power, loss and high in breaking capacity. This product has been widely used in overload and short circuit protection of electric installations.
This product conforms to IEC 269 and VDE0636 standards with all of the rating at the world advanced level.

NH4 series ceramic LV fuse:

NH4 gL/gG type:

Rated Voltage: 500V

Rated Current: 1600A

Weight: 2200g

Size	Rated voltage (V)	Rated current (A)	Weight (g)
NH00C	AC500/690V DC 440V	2,4,6,10,16,20,25,32,35,40,50,63,80,100	145
NH00	AC500/690V DC 440V	2,4,6,10,16,20,25,32,40,50,63,80,100,125,160	180
NH0	AC500/690V DC 440V	4,6,10,16,20,25,32,40,50,63,80,100,125,160	250
NH1	AC500/690V DC 440V	63,80,100,125,160,200,224,250	460
NH2	AC500/690V DC 440V	80,100,125,160,200,224,250,300,315,355,400	680
NH3	AC500/690V DC 440V	300,315,355,400,425,500,630	900
NH4	AC500/690V DC 440V	630,800,1000,1250	2200
