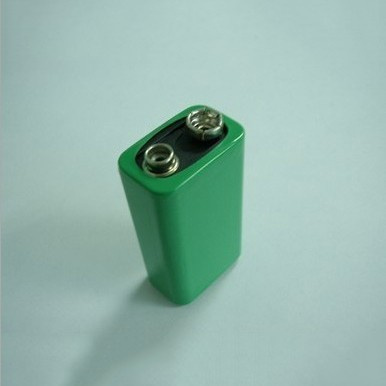

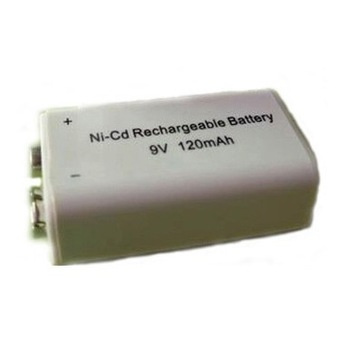

Ni-CD 9V 120mAh Recharge Battery

Name: Ni-CD 9V 120mAh Recharge Battery
Brand: all-electronics-online.com
SKU: 733179422
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	9V 120mAh
Capacity:	120mAh
Type:	Ni-CD Battery
Usage:	Lighting
Discharge Rate:	Medium Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Nominal Voltage:	9V

Product Description

Quick Details

Place of Origin: Guangdong, China (Mainland)
Model Number: Ni-CD 9V 120mAh
Type: NI-CD
Nominal Voltage: 9V
Size: 17.5*26.5mm*48.5mm, 17.5*26.5mm*48.5mm
Nominal Capacity: 120mAh
PCM: over-charge,over-discharge,short circuit and over-current protection
Temp. control: Thermo Switch, NTC and PTC
Wire: based on current and customize length
Connector: Customer's pointed, Melex, JST and so on
PVC: added by customer's enquirement
Charger: Available based on customer's
Application: digital products
Special functions: based on customer's enquirements
Catalogue: more than 8000 models

Packaging & Delivery

Packaging Details	Standard industrial packing, natural one
Delivery Time	20-30days

Ni-CD Battery with 9V 120mAh capacity

1. Product basic description:

Model: Ni-CD 9V 120mAh

Nominal voltage: 9V

Nominal capacity: 80--150mAh

Size: 17.5*26.5mm*48.5mm

Weigh: about 44g

Cycle lifespan: 500 times

Service lifespan: 3-5 years

Warranty: 1 year

2.Specifications form:

Model	9V 120mAh Ni-CD
Nominal Voltage	8.4V
Nominal Capacity	80-150mAh
Max Charge Voltage	10.5V
Discharge Cut-off Voltage	7.0V
Standard Charge Current	0.1C for 16 hrs
Fast Charge Current	0.5C for 2.4 hrs
Standard Discharge Current	0.2C
Max Discharge Current	3C
Cycle Life	500 Times
Self-discharge	15%/Month
Operating Temperature	-20 to 60 °C
Storage Temperature	-20 to 35 °C
Dimension	17.526.5mm48.5mm
Weight	44g

3.Advantage of NiMH Battery

1)Friendly to the environment:No Cadmium, Mercury effect, Lead

2)No memory effect

3)Low internal resistance

4)Long cycle life:more than 500 -1000 cycles under normal use

5)Low self-discharge character

6)UL,CE,ROHS,EN62133,IEC ,SGS certificated

3.Application

Cordless Phones,Camcorders, Digital Cameras,Emergency Backup Lightings,Mining Light ,LED Torch, Alarm System,Pocket Flashlights,

Power Tools, E-Toys, E-Tooth Brusher, Brushes Shaver,

Metal Detectors, Medical Device

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
