| Prod Model: |
Ni-MH D |
| Capacity: |
8000mAh |
| Type: |
Ni-MH Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
1.2V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
Product Description
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Model Number: Ni-MH D 8000mAh 1.2V
- Type: NI-MH
- Nominal Voltage: 1.2V
- Size: 32.5*59.5mm(dia*H), 32.5*59.5mm(dia*H) or customized
- Nominal Capacity: 8000mAh
- PCM: over-charge,over-discharge,short circuit and over-current protection
- Temp. control: Thermo Switch, NTC and PTC
- Wire: based on current and customize length
- Connector: Customer's pointed, Melex, JST and so on
- PVC: added by customer's enquirement
- Charger: Available based on customer's
- Application: digital products
- Special functions: based on customer's enquirements
- Catalogue: more than 8000 models
Packaging & Delivery
| Packaging Details | Standard industrial packing, natural one |
|---|
| Delivery Time | 20-30days |
|---|
Specifications

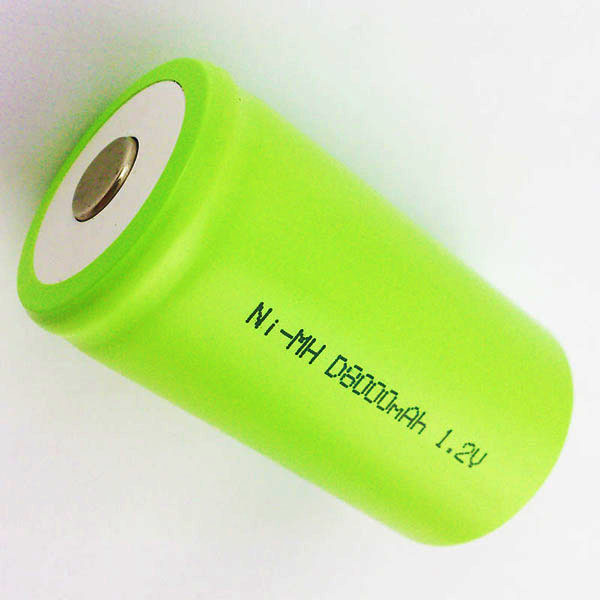

Ni-MH battery D8000mAh 1.2V
32.5*59.5mm(dia*H),143.5g weight
400 times life cycle
3-5years service lifespan
1 year warranty
Ni-MH D 8000mAh 1.2V Rechargeable battery
Product Description
1. Product basic description:
Model: Ni-MH D8000mAh 1.2V
Nominal voltage: 1.2V
Nominal capacity: 8000mAh
Size: 32.5*59.5mm(dia*H)
Weight: 143.5g
Cycle lifespan: 500 times
Service lifespan: 3-5 years
Warranty: 1 year
2.Specifiction form:
Type: | Ni-MH battery |
Model: | D 8000mAh |
Nominal Voltage: | 1.2V |
Nominal Capacity: | 8000 mAh |
Brand: | OEM&ODM |
Standard charge: | Current:800mAh |
Time:16H |
Rapid charge: | Current:8000mAh |
Time:1.2H |
Cycle life: | >500 Times |
Charge temperature: | -10 ~+50 degree |
Discharge temperature: | -20~+70 degree |
Charge Current: | 0.1C |
Discharge Current: | 0.2C |
Packing: | Industrial packing or as your requirement |
Certificate: | CE,RoHS,UL,ISO9001 |
Applications: | GPS, PDA,, Power Tools, lights, model aircraft, wireless meter reading, wireless ordering, radio, electronic toys, toy car ,KLD , shavers, solar lights, etc |
2. Feature:
Size: AA, AAA, C, D, F,SC and so on or customize
Capacity: customize
we can assemble battery as your requirement
1.High capacity, low inner resistance, long cycle life, low self-discharge.
2.Rapid charge-discharge cycle life up to more than 500 times.
3.Provide both single cells and battery packs.
4.Fast charge available.
5.All products are inspected strictly with the match of capacity.
6.Enough,stable capacity,steady discharge and high temperature discharge.
7.The batteries have benn approved by EC/ROHS, MSDS, CE, ISO9001, etc.
8.The batteries are applied to walkmans, solar lighting, electrical drills, shavers, emergency lighting and back-up power, etc
Model | Nominal Voltage(V) | Nominal Capacity (mAh) | Dimension with the Tube | Standard charger | Rapid charge | Weight Approx (g) |
Diameter (mm) | Height(mm) | Current (mA) | Time(h) | Current (mA) | Time (H) |
1/2AAAA | 1.2 | 60 | 8 | 21 | 16 | 15 | 160 | 1.2 | 5 |
AAA600 | 1.2 | 600 | 10.5 | 44.5 | 60 | 15 | 600 | 1.2 | 13 |
AAA800 | 1.2 | 800 | 10.5 | 44.5 | 80 | 15 | 800 | 1.2 | 13 |
AA1200 | 1.2 | 1200 | 14.5 | 50.5 | 120 | 15 | 1200 | 1.2 | 25 |
AA1500 | 1.2 | 1500 | 14.5 | 50.5 | 150 | 15 | 1500 | 1.2 | 26 |
AA1800 | 1.2 | 1800 | 14.5 | 50.5 | 180 | 15 | 1800 | 1.2 | 28 |
AA2000 | 1.2 | 2000 | 14.5 | 50.5 | 200 | 15 | 2000 | 2.4 | 29 |
SC3000 | 1.2 | 3000 | 43.0 | 43.0 | 300 | 15 | 3000 | 2.4 | 60 |
C1800 | 1.2 | 1800 | 25.8 | 51.0 | 180 | 15 | 1800 | 1.2 | 42 |
C4000 | 1.2 | 4000 | 25.8 | 51.0 | 400 | 15 | 4000 | 2.4 | 42 |
C4500 | 1.2 | 4500 | 25.8 | 51.0 | 450 | 15 | 4500 | 2.4 | 77 |
D1800 | 1.2 | 1800 | 33.0 | 61.8 | 180 | 15 | 1800 | 1.2 | 77 |
D2200 | 1.2 | 2200 | 33.0 | 61.8 | 220 | 15 | 2200 | 1.2 | 76 |
D7000 | 1.2 | 7000 | 33.0 | 61.8 | 700 | 15 | 7000 | 3.6 | 76 |
D8000 | 1.2 | 8000 | 33.0 | 61.8 | 800 | 15 | 8000 | 3.6 | 165 |
D9000 | 1.2 | 9000 | 33.0 | 61.8 | 900 | 15 | 9000 | 3.6 | 170 |
F12000 | 1.2 | 12000 | 33.0 | 90.5 | 1200 | 15 | 12000 | 3.6 | 210 |
Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.
We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.
We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
