Shanghai Tankii Alloy Material Co., Ltd. >> Ni30cr20, Used for Resistor Elements in High Temperature Applications

Ni30cr20, Used for Resistor Elements in High Temperature Applications

Ni30cr20, Used for Resistor Elements in High Temperature Applications
Price: Negotiablekg
Trade Terms: FOB,CFR,CIF
Min Order: 20kg
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Ni30Cr20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Type: Wire

Product Description

          Ni30cr20, Used for Resistor Elements in High Temperature Applications

Application:
Nichrome, a non-magnetic alloy of nickel and chromium, is commonly used to make resistance wire.

Because it has a high resistivity and resistance to oxidation at high temperatures. When used as a heating element, resistance wire is usually wound into coils.
Nichrome wire is commonly used in ceramics as an internal support structure to help some elements of clay sculptures hold their shape while they are still soft. Nichrome wire is used because of its ability to withstand the high temperatures that occur when a clay work is fired in a kiln.

NiCr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.

3.Product size:

Round wire dia.0.05-12mm;

flat strip thickness0.03-5mm,flat strip width0.2-500mm.


Chemical Content, %
CPSMnSiCrNiFeOther
Max
0.080.020.0151.01.0-3.018.0~21.030.0-34.0Bal.-

Mechanical Properties
Max Continuous Service Temperature:
Resisivity 20ºC:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:
1100ºC
1.04+/-0.05 ohm mm2/m
7.9 g/cm3
43.8 KJ/m·h·ºC
19×10-6/ºC (20ºC~1000ºC)
1390ºC
Min 20%
Austenite
nonmagnetic


Delivery conditions are:

  • Bright annealed
  • Oxidized
  • Pickled
  • Enameled

Nichrome wire sizes are:

Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm

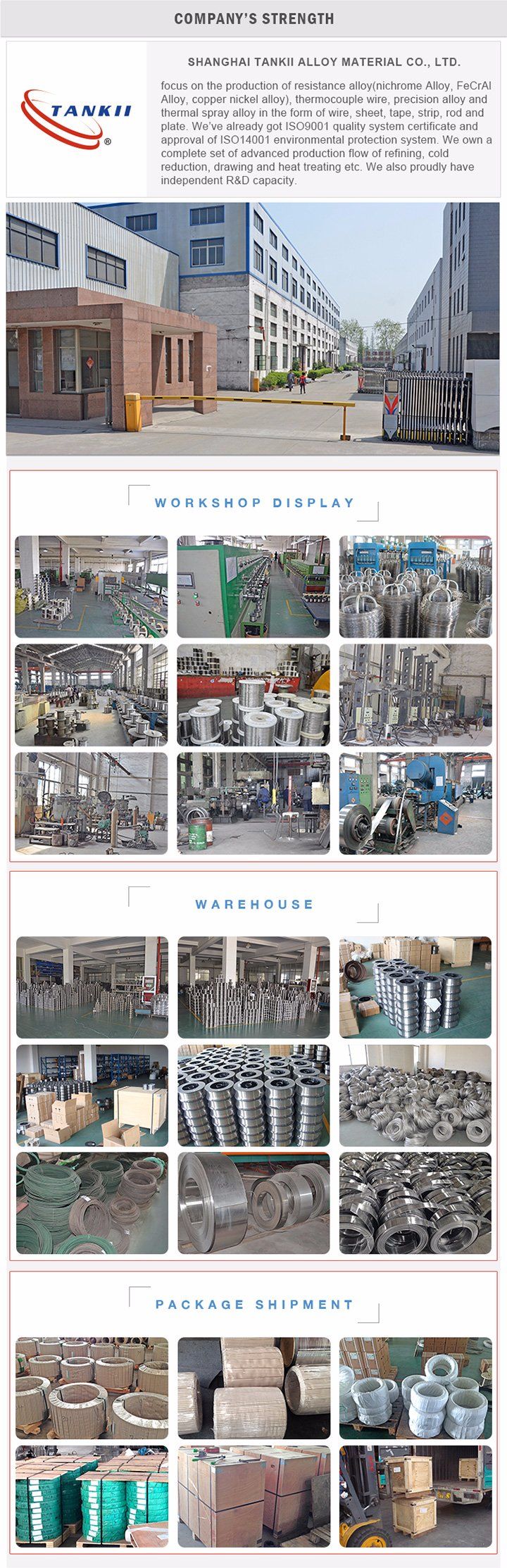

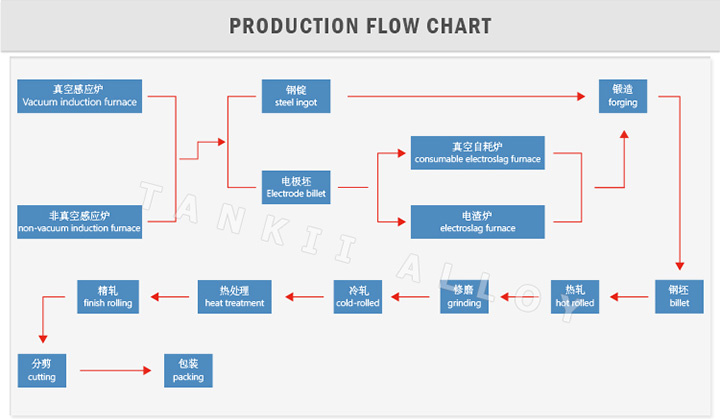

Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
