Nice Shape Good Quanlity Ycb6h 1p 32A MCB

Name: Nice Shape Good Quanlity Ycb6h 1p 32A MCB
Brand: all-electronics-online.com
SKU: 782697895
Availability: InStock
Rating: 4.9 (69 reviews)

Price:	US $ 0.58/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCB6H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Poles Number:	1
Certification:	CB
Structure:	Conventional Circuit Breaker

Product Description

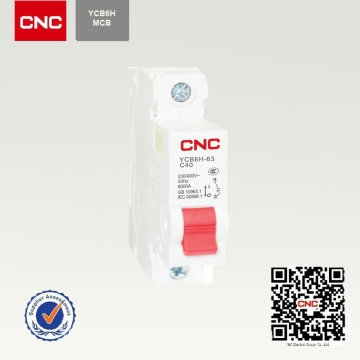

Nice Shape Good Quanlity YCB6H 1P 32A MCB

General

1. Overload protection
2. Short-circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
5. According to the type of instantaneous release classfied as follows: type B(3-5)In, type C(5-10)In, type D(10-16)In.

Release

Type	Test current	Tripping Time	Type	Test current	Tripping Time
B,C,D	1.13In	t≤1h(In≤63A) t≤2h(In>63A)	B	3In	t≤0.1s
			C	5In
B,C,D	1.45In	t63A)	D	10In
			B	5In	t<0.1s
B,C,D	2.55In	1s	C	10In
			D	20In

Specification

Electrical features	Rated current In	A	1, 2, 3,4,6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	1.2.3.4
	Rated voltage Ue	V	240/415
	Insulation voltage Ui	V	500
	Rated frequency	HZ	50/60
	Rated breaking capacity	A	6000A
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	6000
	Mechanical life	t	20000
	Protection degree		IP20
	Reference temperature for setting of thermal element	°C	30
	Ambient temperature (with daily average≤35°C)	°C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	°C	-25~+70

WHY US?

      1. We Are Supplier of Three Gorges Project,China National Petroleum,Sinopec Group;
      2. China Famous Export Enterprise,  Our Products Sale in Over 100 Countries;
      3. Our Laboratory is China Key Industrial Electrical Laboratory;
      4. We have completely sales service system, ensure every detail is going smooth.
      5. We have new designed products each year by our R&D Dpartment.
      6. Perfect testing system ensure each product is qualified.
      7. Want know more of us? Waiting for your inquiry.

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
