Nicked Plated Rope Tension Measurement Load Cell

Name: Nicked Plated Rope Tension Measurement Load Cell
Brand: all-electronics-online.com
SKU: 772850855
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 55/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QDT-5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Aplication:	Rope Clamp Scale
Type:	Weigh Bridge
Capacity:	3ton, 5ton, 10ton
Types:	Tension Wire Ropes Load Cell
Feature:	Alloy Steel

Product Description

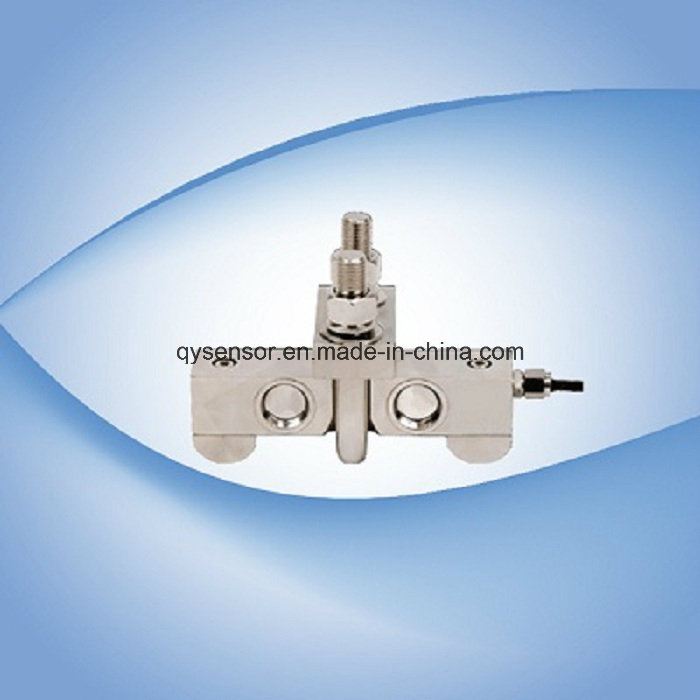

Nicked Plated Rope Tension Measurement Load Cell

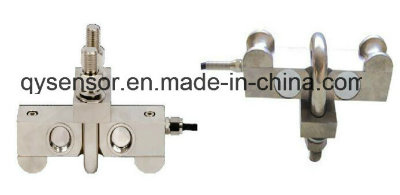

The range of rope clamp load cells are for measuring tension in wire ropes. These load cells have a double ended beam design and are available in 3T, 5T and 10T nominal capacities.

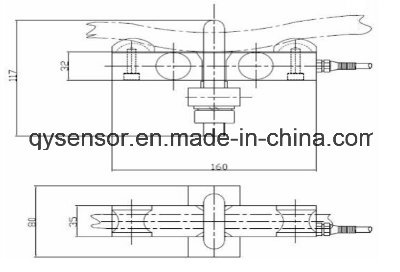

Electrical connection and Dimensions:

TECHNICAL PARAMETERS:

Rated Load:	1/2/3/5/10t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10°C
Tc Span:	±0.02% F.S/10°C
Input Resistance:	750±5Ω
Output Resistance:	702±3Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=L:12m(25~50klb),16m(60~75klb)

WIRING:

Red: +excitation

Black: -excitation

Green: +output

White: -output

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
