Nickel Iron Block Battery/Solar Battery/Ni-Fe Battery for Solar Power

Name: Nickel Iron Block Battery/Solar Battery/Ni-Fe Battery for Solar Power
Brand: all-electronics-online.com
SKU: 821005335
Availability: InStock
Rating: 4.8 (39 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TN350
Container:	White PP Container
Nominal Voltage:	1.2V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable
Type:	Solar Energy
Usage:	Solar Energy

Product Description

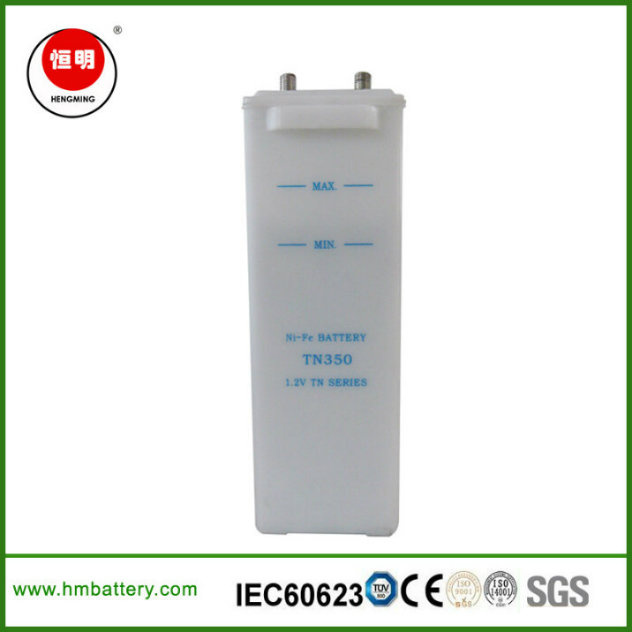

HengMing long service life high quality nickel iron, ni-fe battery TN350 for Solar Energy

The detials of TN350 as follow:
1.cell type:TN350,iron nickel,NiFe battery(rechargeable alkaline battery)
2.rated capacity:350AH
3.nominal voltage:1.2V
4.container :MBS,ABS,PP
5.dimensions:L=277mm,W=145mm,H=450mm.
6.delivery with battery connector, vent caps.

Advantage of Hengming NiFe battery
1.low cost price with high quality
2.wide operating temperature range from -25 °C to 45°C
3.long service life more than 20 years
4.excellent charging efficiency and smooth discharge voltage
5.high resistance to mechanical and electrical abuse
6.Low maintenance cost and replacement cost.
7.Excellent resistance performance of over-charge and over-discharge.
8.PP/ABS is produced by our own factory

Specifications

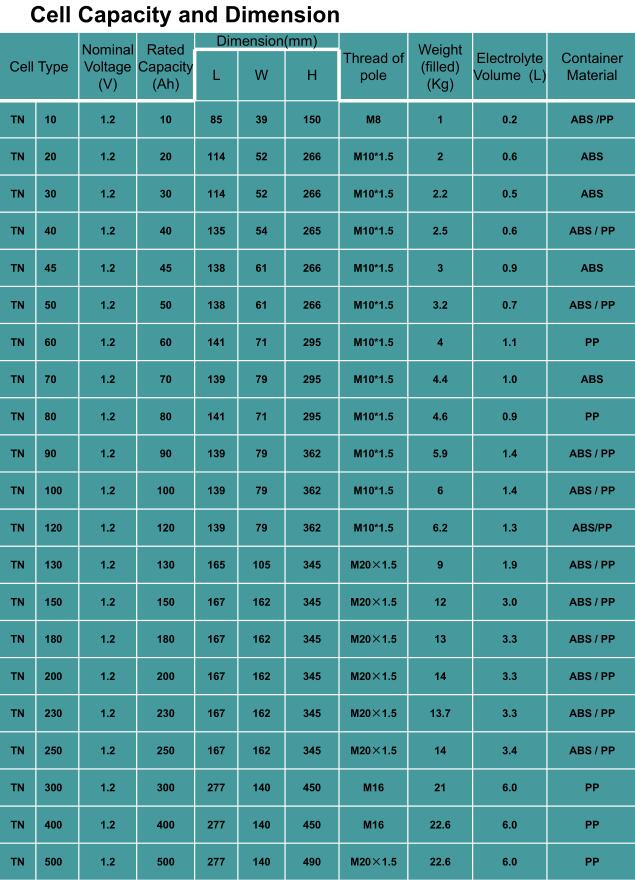

Specifications of nickel iron battery

Model	Nominal Voltage(V)	Rated Capacity (Ah)	Max. dimension(mm)			Pole	Weight (filled) (Kg)	Electrolyte (L)	Container
			Max. dimension(mm)
			L	W	H
TN10	1.2	10	85	39	156	M8	0.8	0.3	PP
TN 20	1.2	20	82	43	258	M10	1.3	0.3	ABS
TN 30	1.2	30	135	54	265	M10	2	0.5	PP
TN 40	1.2	40	135	54	265	M10	2.4	0.5	PP
TN 50	1.2	50	138	61	266	M10	3.2	0.7	PP
TN 60	1.2	60	143	76	275	M10	4	1.1	ABS
TN 70	1.2	70	139	79	295	M10	4.4	1	ABS
TN 80	1.2	80	139	79	295	M10	4.7	1	ABS
TN 90	1.2	90	139	79	362	M10	5.9	1.4	PP
TN 100	1.2	100	139	79	362	M10	6	1.4	PP
TN 150	1.2	150	165	105	345	M20×1.5	9.3	2	PP
TN 200	1.2	200	167	162	345	M20×1.5	14	3.3	PP
TN 250	1.2	250	167	162	345	M20×1.5	14	3.4	PP
TN300	1.2	300	282	170	348	M20×1.5	22.5	5	ABS
TN400	1.2	400	282	170	348	M20×1.5	24	4.5	ABS
TN 500	1.2	500	285	172	490	M20×1.5	33.6	7.8	ABS
TN 600	1.2	600	285	172	490	M20×1.5	34	7.5	ABS
TN700	1.2	700	285	172	490	M20×1.5	40	9.4	ABS
TN 800	1.2	800	395	185	560	M20×1.5	57.5	15.5	ABS
TN 1000	1.2	1000	395	185	560	M20×1.5			ABS
TN1200	1.2	1200	395	185	560	M20×1.5			ABS

Benefits of nickel iron battery

Excellent charging efficiency and smooth discharge voltage
High reliability without sudden death
Ability to withstand ultra-high and ultra-low environmental temperatures
Withstand physical and mechanical abuses
Exceptionally long & reliable service life
Pollution-free,total green energy
low Self-discharging
No emission of corrosive gases, Safe from flame & explosion
Pollution-free and excellent mechanical strength
Convenient for installation and low maintenance
Availability to design and manufacture other model according to user's requirements

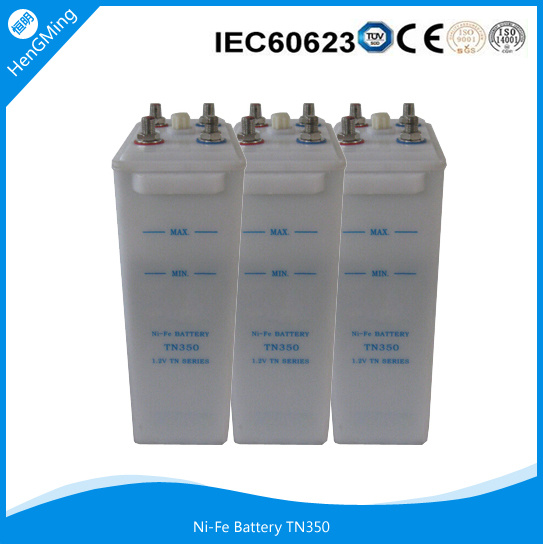

Photos:

Any inquiry for the battey ni-fe or ni-cd battery . Kindly contact with me !

Mobile: +86-13598625307

HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.

We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.

We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.

We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.

HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
