Nitrogen Generator for Semiconductor
| Price: |
US $ 8000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ZRN2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technology: |
Pressure Swing Adsorption(Psa) |
| Capacity: |
3~3000m3/Hr(Customized) |
| Purity: |
90~99.9995%(Customized) |
| Supply Voltage: |
220V/1pH/50Hz(Customized) |
| Delivery Detail: |
Within 30days After Receiving Payment or Deposit |
| Warranty: |
1year From Shipment Date |
| Service Life: |
≥8years with Proper Maintenance |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Usage: |
Nitrogen |
| Condition: |
New |
Product Description
WUXI ZHONGRUI

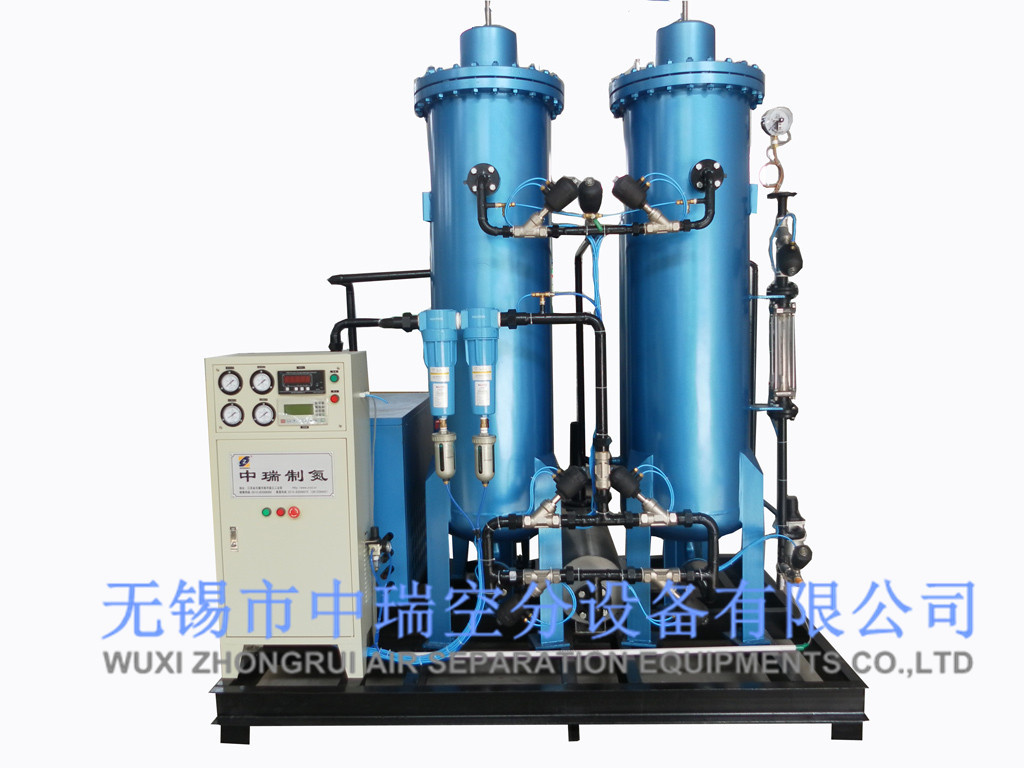

1. Product Name: PSA Nitrogen Generator
The Whole Nitrogen Generation System Includes :
Air Compressor
Air Receiver Tank
Air Dryer & Precision Filters
Nitrogen Generator (Includes control system, adsorption towers, buffer tanks, etc)
Nitrogen Receiver Tank
Nitrogen Booster/Compressor (Optional Parts)
Cylinder Manifold System (Optional Parts)
Nitrogen Cylinders (Optional Parts)
2. Main Technical Parameters :
Nitrogen Capacity/Flow rate: 3-3000Nm3/h (CUSTOMIZED)
Nitrogen Purity: 90%-99.9995% (CUSTOMIZED)
Nitrogen Pressure: 0.1-0.7Mpa (CUSTOMIZED)
| Model | N2 Capacity
(Nm³/h) | Power | N2 Purity(%) | Air souring
Pressure(Mpa) | N2Pressure
(Mpa) | L*W*H
(mm) |
| ZR-3 | 3 | 5W | ≥99.5 | 0.8-1.0 | 0.1-0.65 | 590×570×1020 |
| ZR-5 | 5 | 5W | ≥99.5 | 0.8-1.0 | 0.1-0.65 | 590×570×1230 |
| ZR-5A | 5 | 0.5KW | ≥99.5 | 0.8-1.0 | 0.1-0.65 | 1100×760×1250 |
| ZR-10 | 10 | 1KW | ≥99.5 | 0.8-1.0 | 0.1-0.7 | 1350×1170×1600 |
| ZR-15 | 15 | 1KW | ≥99.5 | 0.8-1.0 | 0.1-0.7 | 1400×1180×1670 |
| ZR-20 | 20 | 1.5KW | ≥99.5 | 0.8-1.0 | 0.1-0.7 | 1450×1200×1700 |
| ZR-30 | 30 | 1.5KW | ≥99.5 | 0.8-1.0 | 0.1-0.7 | 1480×1220×1800 |
| Model |
N2 Purity
(%)
|
N2 Capacity
(Nm³/h)
|
Consumed Air Capacity
(m³/min)
| L*W*H (mm) | ZR-40
| 99
| 40
| 1.8
| 1900×1400×1800
| 99.5
| 2.0
| 2000×1450×1900
| 99.9
| 2.8
| 2100×1500×2050
| 99.99
| 3.7
| 2200×1500×2350
| 99.999
| 6.0
| 2600×1800×2550
| ZR-50
| 99
| 50
| 2.1
| 2000×1500×1900
| 99.5
| 2.5
| 2050×1450×1850
| 99.9
| 3.3
| 2100×1500×2250
| 99.99
| 4.7
| 2500×1700×2500
| 99.999
| 7.5
| 2700×1800×2600
| ZR-60
| 99
| 60
| 2.8
| 2050×1450×1850
| 99.5
| 3.0
| 2050×1500×2100
| 99.9
| 4.2
| 2200×1500×2250
| 99.99
| 5.5
| 2550×1800×2600
| 99.999
| 9.0
| 2750×1850×2700
| ZR-80
| 99
| 80
| 3.7
| 2100×1500×2000
| 99.5
| 4.0
| 2100×1500×2150
| 99.9
| 5.5
| 2500×1700×2550
| 99.99
| 7.5
| 2700×1800×2600
| 99.999
| 12.0
| 3200×2200×2800
| ZR-100
| 99
| 100
| 4.6
| 2100×1500×2150
| 99.5
| 5.0
| 2200×1500×2350
| 99.9
| 7.0
| 2650×1800×2700
| 99.99
| 9.3
| 2750×1850×2750
| 99.999
| 15.0
| 3350×2500×2800
| ZR-150
| 99
| 150
| 7.0
| 2450×1470×2400
| 99.5
| 7.5
| 2550×1800×2600
| 99.9
| 10.5
| 2750×1850×2750
| 99.99
| 14.0
| 3300×2500×2750
| 99.999
| 22.5
| 3500×3000×2900
| ZR-200
| 99
| 200
| 9.3
| 2600×1800×2550
| 99.5
| 10.0
| 2700×1800×2600
| 99.9
| 14.0
| 3300×2500×2800
| 99.99
| 18.7
| 3500×2700×2900
| 99.999
| 30.0
| 3600×2900×2900
| ZR-300
| 99
| 300
| 14.0
| 2700×1850×2700
| 99.5
| 15.0
| 3150×2150×2750
| 99.9
| 21.0
| 3500×2700×2900
| ZR-400
| 99
| 400
| 18.6
| 3200×2200×2800
| 99.5
| 20.0
| 3350×2500×2800
| 99.9
| 28.0
| 3800×2900×2900
| ZR-500
| 99
| 500
| 23.3
| 3350×2500×2800
| 99.5
| 25.0
| 3500×2700×2900
| 99.9
| 35.0
| 3800×3000×3000
| ZR-600
| 99
| 600
| 28.0
| 3500×2700×2850
| 99.5
| 30.0
| 3500×3000×2900
| 99.9
| 42.0
| 4000×3000×2900
| ZR-800
| 99
| 800
| 37.5
| 3600×2900×2900
| 99.5
| 40.0
| 3600×3000×2900
| 99.9
| 56.0
| 4000×3500×3000
| ZR-1000
| 99
| 1000
| 47.0
| 3600×2900×2900
| 99.5
| 50.0
| 4000×3000×2900
| 99.9
| 70.0
| 4200×3550×3000
| ZR-1500
| 99
| 1500
| 70.0
| 4000×3500×2900
| 99.5
| 75.0
| 4200×3500×2950
| 99.9
| 105.0
| 4500×3800×3000
| ZR-2000
| 99
| 2000
| 94.0
| 4200×3500×3000
| 99.5
| 100.0
| 4300×3800×2950
| 99.9
| 140.0
| 5000×5000×3000
| ZR-3000
| 99
| 3000
| 140.0
| 4500×3800×2950
| 99.5
| 150.0
| 4800×4800×3000
| 99.9
| 210.0
| 6000×6000×3000
|
|
| |
3. PrincipleWhen the process adopts lifting air, oxygen and nitrogen have different diffusion rate and absorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is compressed to 0.8~1.0MPa, air source enters in pressure-swing absorption tower for separation after being purified through dry and oil-water separation process (filter). Oxygen molecules are diffused and absorbed in carbon molecular sieve under pressure. Nonabsorbed nitrogen is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged in adsorption tower under depressurization. Moreover, adsorbent can be recycled.4. Application:
1) Food preservation by filling in nitrogen, agitation of beverages.
2) Nitrogen protection and filling of injection solution,transfusion and oral liquid in pharmacy industry
3)Chemical and new material industries: chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate , etc.
4) Electronic industry: peak welding, circumfluence welding, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material , etc.
5).........
5. Excellent Features:
1) Advanced process flow directly reduces compressed air consumption.
2) World famous molecular sieve ensures maximum energy-saving.
3) Advanced load adaptation technology further saves energy.
4) The most reliable air cleaning process ensures adsorbing efficiency and lifetime of CMS.
5) National patent valve guarantees stable equipment operation.
6) Air tank ensures stable system air consumption.
7) Nitrogen buffer tank ensures stable system gas supply.
8) National patent compaction technology ensures long life of CMS.
9) Long-distance supervision and control.
10) Professional technologies ensure reliable gas supply.
11). Friendly human-machine interface...
6. Office Photos

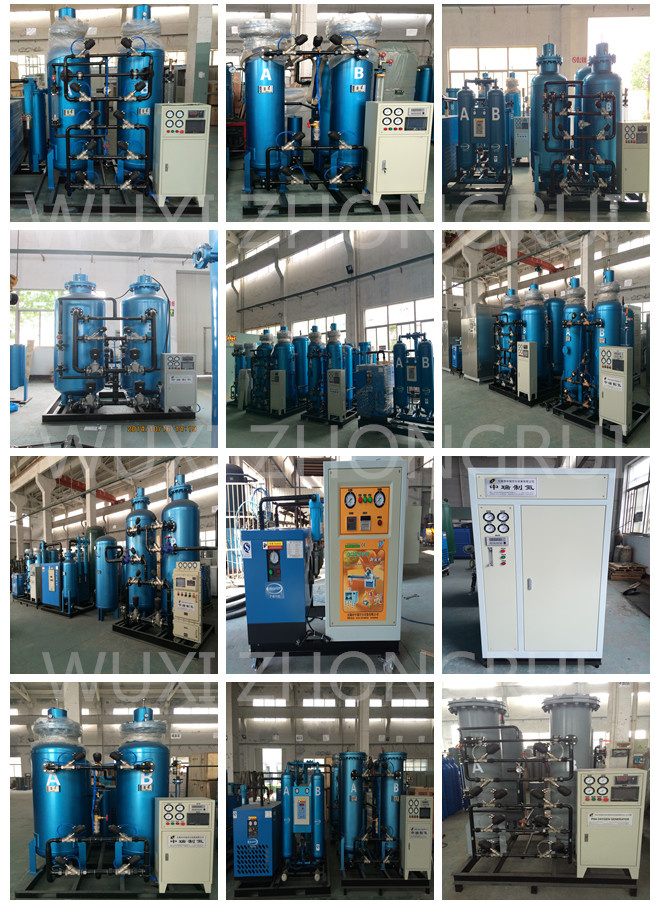

7. Factory Real Photos:
8. Packaging&Shipping Photos
9.Fairs/Shows' photos
10. Customers' Sites Photos:
11. FAQ:
Please kindly provide answers against below questions when sending us an inquiry!
Thanks a lot~
| Technical Parameters | Your Requirements |
| N2 Capacity | ______ Nm³/hr |
| N2 Purity | ______% |
| N2 Outlet Pressure | ____ Mpa or ___ Bar |
| Voltage | ___V ___Phase___HZ |
Provide OEM Service,
We can do more!
WUXI ZHONGRUI AIR SEPARATION EQUIPMENTS Co., Ltd is located in Luoshe Town, one of top ten civilized ancient towns of Wuxi, at the shore of Taihu Lake and The Grand Canal. Its northern part is close to Shanghai-Nanjing Expressway and Beijing-Shanghai Expressway. 312 National Highway and Wuxi-Yixing Expressway pass through it. In addition, it neighbors upon Wuxi Shuofang Airport and Changzhou Benniu Airport. The perfect sea-land-air transport network enables us to provide our friends both domestic and abroad with more convenient and perfect service.
Our company keeps humanistic spirit and technological innovation as main lines, working closely with state-level professional design institutes and colleges, giving full play to the advantages of high-tech products, carrying through technical innovations, improving product performance and quality constantly. We provides users a great variety of reliable and energy efficient products under the strong support of technology and talents by adhering to ''integrity, innovation, professional, highly efficiency''. The first-class brand ZHONGRUI comes into being!
Through many years' development, the Company has been mainly engaged in manufacturing of (PSA) nitrogen generators, nitrogen purifiers, (PSA) oxygen generators, (VPSA) oxygen generators, hydrogen generators, purification devices, nitrogen-hydrogen proportioning device, heatless purge desiccant air dryer, externally heated purge desiccant air dryer, air purification dryer, refrigerated air dryer, filters, etc. The equipments are featured in compact size, super automation, stable performance, low energy consumption, low noise and non-pollution etc.
ZHONGRUI producets are widely applied in petrochemistry, mechano-electronic, Metallurgy, Coal power, Synthetic rubber, silicon industry, CNG, paper-making industry, mine exploiting, aerospace industry, aquaculture, Bio-Environment, food & pharmacy, Medical & Health, etc. Fields.
In the face of severe competition of the market and constant innovation requirements on products of customers, we will always be devoted to constant innovation and develop efficiently at high starting point to provide customers much better products and service.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
