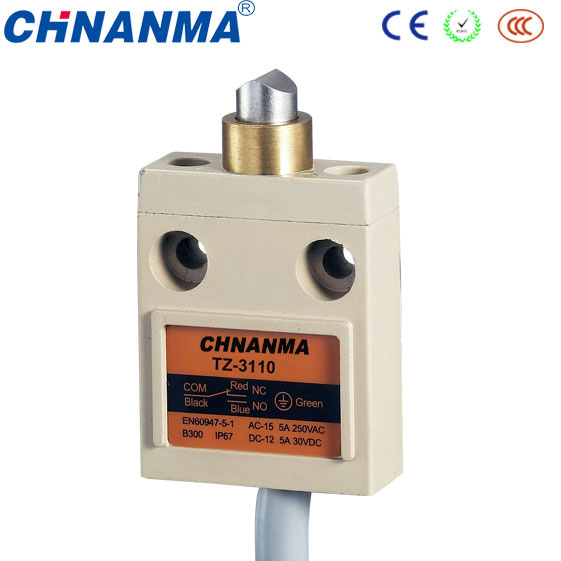

Nm-3110 Compact Prewired Aluminium Limit Switch with Ce

Nm-3110 Compact Prewired Aluminium Limit Switch with Ce
Price: US $ 1.1-1.2/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: NM-3110
Pressing Type: Push-Button
Protection: Waterproof
Size: Normal Size
Environment: ﹤250℃
Breaking Capacity: Micro-Current
Breaking Form: Single Type
Application: Electronic Equipment
Brand: Chnanma

Product Description

DPDS limit switch for multiple applications;
Rugged aluminium alloy diecast housing;
High mechanical strength;
Oil resistance,waterproof and dustproof sructure.

Specification
Rated voltage(4)Noninductive load(A)Lnductive load(A)
Resistive loadLamp loadInductive loadMotor load
NCNONCNONCNONCNO
125VAC5(0.1)1.50.7332.51.3
250VAC310.5221.530.8
8VDC5(0.1)225433
14VDC5(0.1)224433
30VDC4(0.1)223333
125VDC0.40.050.050.40.40.050.05
250VDC0.20.030.030.30.20.030.03

Characterstics
RatingIP67
LifeMechanical 10,000,000times
Electrical200,000times
Operation speed1mm-1m/s
Operation frequencyMechanical120times/min
Electrical30times/min
Insulation resistance<100MΩ min.500VDC
Contact resistance15mΩ min.(Intial)
Withatand voltageBetween terminals of the same polarity1,000VAC,50/60HZ for 1mintute
Between current-carrying and non-current- carrying metal parts1,500VAC,50/60HZ
Between charged metal parts each terminal1,500VAC50/60HZ
VibrationMisoperation10-55Hz double-amplitude 1.5mm
ImpactDurable:1000m/s2
misoperation:500m/s2

Ambient operating temperature-10-+70ºC
Humidity<95%RH

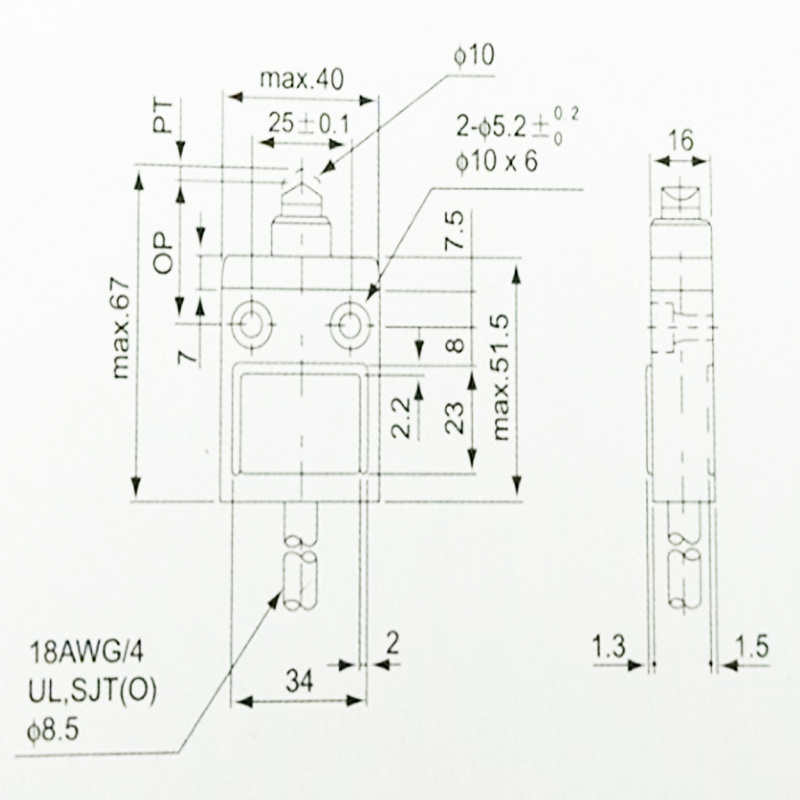

Dimensions/Operating Characteristics

Max1200gf(11.77N)
RF Min450gf(4.41N)
PT Max1.8mm
OT Min3mm
MD Max0.2mm
OP28.5±1mm
Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
