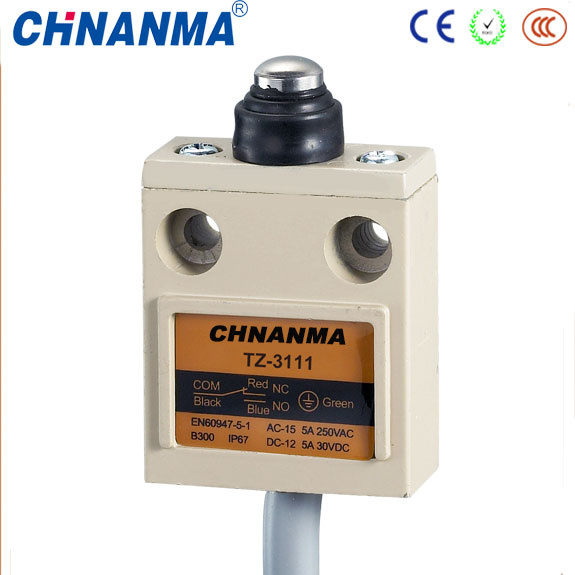

Nm-3111 Compact Prewired Aluminium Limit Switch with Ce

Name: Nm-3111 Compact Prewired Aluminium Limit Switch with Ce
Brand: all-electronics-online.com
SKU: 727837442
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	US $ 1.1-1.2/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NM-3111
Pressing Type:	Lever Roller
Protection:	Waterproof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

DPDS limit switch for multiple applications;
Rugged aluminium alloy diecast housing;

High mechanical strength;
Oil resistance,waterproof and dustproof sructure.

Specification

Rated voltage(4)	Noninductive load(A)				Lnductive load(A)
	Resistive load		Lamp load		Inductive load		Motor load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	5(0.1)		1.5	0.7	3	3	2.5	1.3
250VAC	3		1	0.5	2	2	1.53	0.8
8VDC	5(0.1)		2	2	5	4	3	3
14VDC	5(0.1)		2	2	4	4	3	3
30VDC	4(0.1)		2	2	3	3	3	3
125VDC	0.4		0.05	0.05	0.4	0.4	0.05	0.05
250VDC	0.2		0.03	0.03	0.3	0.2	0.03	0.03

Characterstics

Rating		IP67
Life	Mechanical	10,000,000times
Life	Electrical	200,000times
Operation speed	1mm-1m/s
Operation frequency	Mechanical	120times/min
Operation frequency	Electrical	30times/min
Insulation resistance		<100MΩ min.500VDC
Contact resistance		15mΩ min.(Intial)
Withatand voltage	Between terminals of the same polarity	1,000VAC,50/60HZ for 1mintute
	Between current-carrying and non-current- carrying metal parts	1,500VAC,50/60HZ
	Between charged metal parts each terminal	1,500VAC50/60HZ
Vibration	Misoperation	10-55Hz double-amplitude 1.5mm
Impact		Durable:1000m/s²
		misoperation:500m/s²

Ambient operating temperature		-10-+70ºC
Humidity		<95%RH

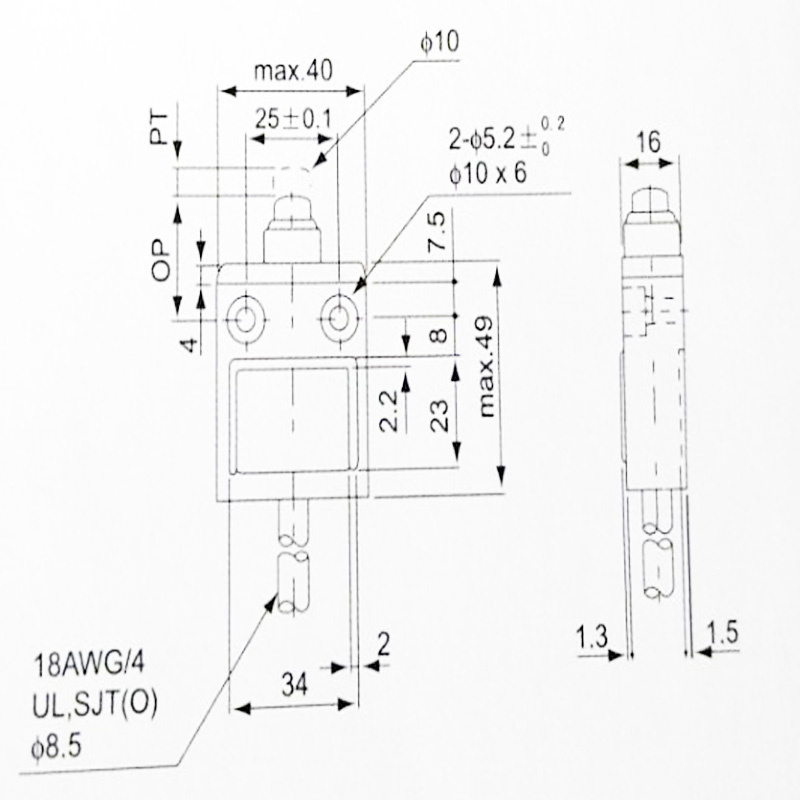

Dimensions/Operating Characteristics

Max	1800gf(17.65N)
RF Min	450gf(1.47N)
PT Max	1.8mm
OT Min	3mm
MD Max	0.2mm
OP	24.9±1mm

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
