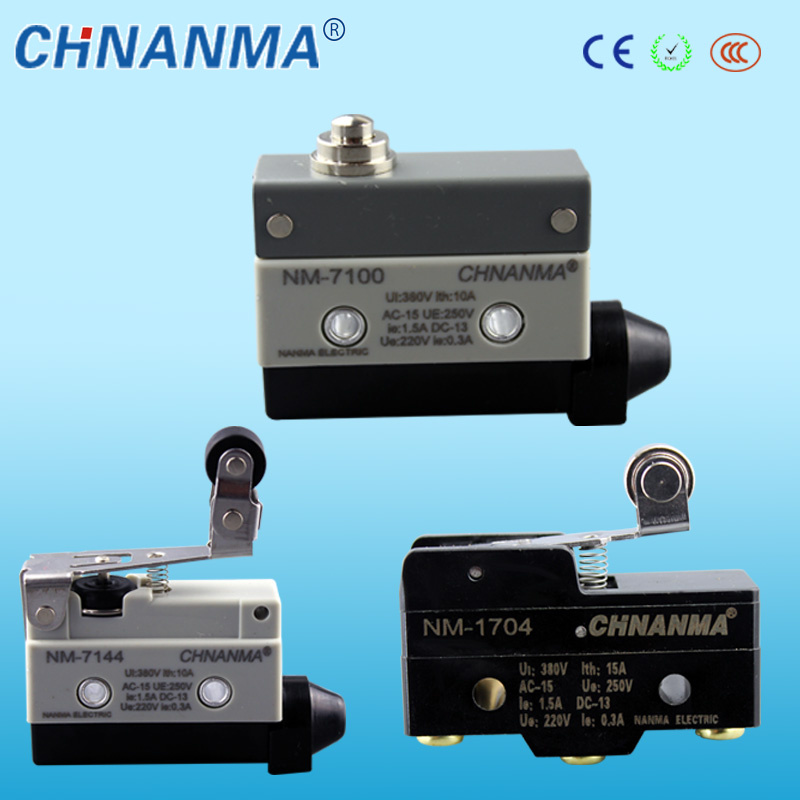

Nm-7100 Pin Plunger Type Micro Switch with Ce

Name: Nm-7100 Pin Plunger Type Micro Switch with Ce
Brand: all-electronics-online.com
SKU: 727810982
Availability: InStock
Rating: 4.8 (50 reviews)

Price:	US $ 1.1-1.2/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NM-7100
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electronic Equipment
Brand:	Chnanma

Product Description

Virous of actuators, the operation position is adjustable;
Outer shell covered with intensive plastic,water-proof and oil-proof; The mechanical strenth is better than TM type of micro switch ,bear hitting.

Specification

Rated voltage	Noninductive load				Lnductive load		Lnrush current
	Resistive load		Inductive		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC	10		3	1.5	10		5	2.5
250VAC	10		2.5	1.25	10		3	1.5
480VAC	3		1.5	0.75	2.5		1.5	0.75
8VDC	10		3	1.5	6		6	5
14VDC	10		3	1.5	6		6	5
30VDC	8		3	1.5	6		5	2.5
125VDC	0.5		0.4		0.05		0.05
250VDC	0.25		0.2		0.03		0.03

Characterstics

otection		IP67
Life	Mechanical	20,000,000times
Life	Electrical	500,000times
Operation speed	0.01mm-50m/swc
Operation frequency	Mechanical	120times/min
Operation frequency	Electrical	30times/min
Insulation resistance		<100MΩ500VDC
Contact resistance		25mΩ min.(Intial)
Withatand voltage	Between non-continous terminal	1,000VAC,50/60HZ for 1mintute
	Between current-carrying and carrying parts	2,000VAC,50/60HZ
	Between charged metal parts each terminal	2,000VAC50/60HZ
Vibration	Misoperation	10-55Hz double-amplitude 1.5mm
Impact		Durable:1000m/s²
		misoperation:300m/s²

Ambient operating temperature		-10-+70ºC
Humidity		<95%RH

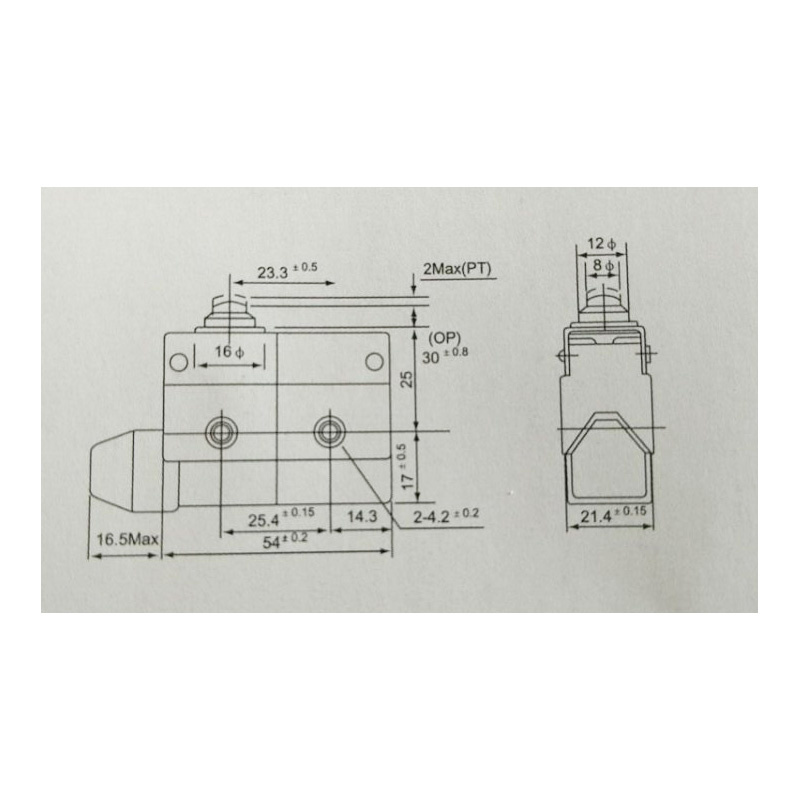

Dimensions/Operating Characteristics

Max	950g(9.31N)
RF Min	200g
PT Max	1.8mm
OT Min	0.5mm
MD Max	0.5mm
OP	30.8±0.6mm
