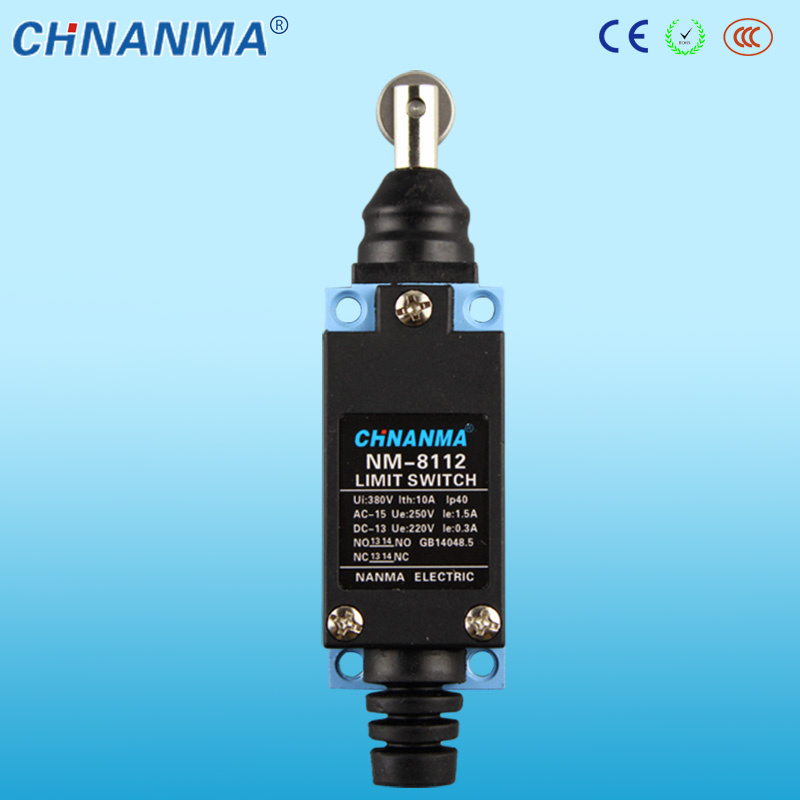

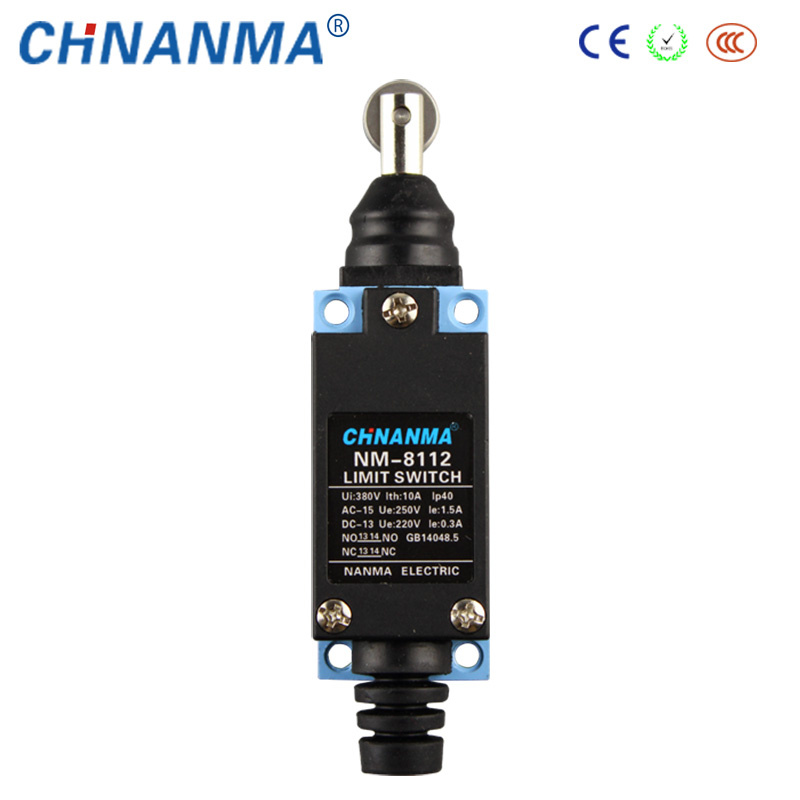

Nm-8112 Adjustable Metal Roller Arm Type Limit Switch with Ce

Name: Nm-8112 Adjustable Metal Roller Arm Type Limit Switch with Ce
Brand: all-electronics-online.com
SKU: 727778182
Availability: InStock
Rating: 4.5 (140 reviews)

Price:	US $ 2.5-2.8/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NM-8112

Product Description

Strong structure made of zinc metal alloy and plastic, easy to contact line;
Small size, water and oil resistant;
Double way switch, double spring inner switch;
Variety of levers;
Widely used in Mechanical equipment, automatic machine, and instrument, electro motion tool etc.

Specification

Item		Data
Rating load		5A/250VAC
Operating speed		5mm-50cm/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(intial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Pertection degree		IP65
Operating temperature		-20'C~60'C
Operating humidity		≤ 85%

Dimensions/Operating Characteristics

OF max.	1100g(10.78N)
RF min.	250g(2.45N))
PT max.	2mm
OT min.	0.6mm
MD max.	1mm
TT	37±0.8mm

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
