Nmea 2000 Micro T-Adapter M12 Connector Waterproof Connector IP67 Connector
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
N2K-MC05T-MFFSG3AP |
| Standard: |
Nmea 2000 |
| Key Coding: |
a-Coding |
| Number Of Pins: |
5 Pin |
| Connection Type: |
Splitter Adapter |
Product Description

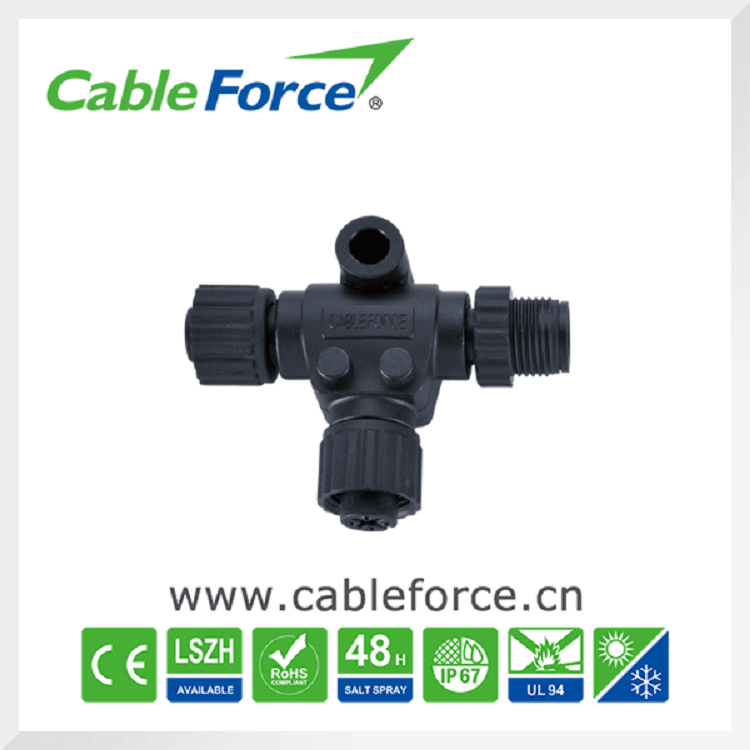

Nmea 2000 Micro T-adapter M12 Connector Waterproof Connector IP67 Connector1. DescriptionsThe T-Connectors are used to connect a NMEA 2000 device to the NMEA 2000 backbone, it is an adaptor or splitter between the Trunk line and Drop line. The T-Connector splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.
(1) 5 poles per connector
(2) Rated voltage 60V, current 4A
(3) Temperature range: -40°C ~ + 80°
(4) Protection degree IP67
Overmold/ Shell: TPU
Connector contacts:Phosphor bronze with gold plated
Coupling nut/screw:Plastic screw & housing | Orientation | Straight | Coding | A-code |
| Sealing | O-ring | IP rating | IP67 |
| Wire termination | Soldering | Rated current | 4 A |
| Shielding | Non-shielded | Rated voltage | 60 V |
3. ApplicationsConnecting between the trunk line and drop cable.
(1) CNC Brass Nickel Plated Screw available for option.
(2) Machined brass solid male contacts with gold plated, 48hrs salt spray tested
(3) Machined phosphor bronze solid female contacts with gold plated, 48hrs salt spray tested.
(4) Temperature Range: Dynamic -25 ~ 80°C, Static: -40~80°C.
(5) Ingress Protection: IP67 degree and IP68 solution based on customer's specific requirement
(6) RoHS compliant.

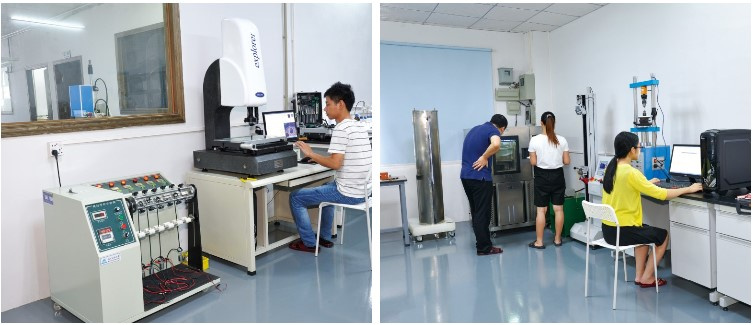

7.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

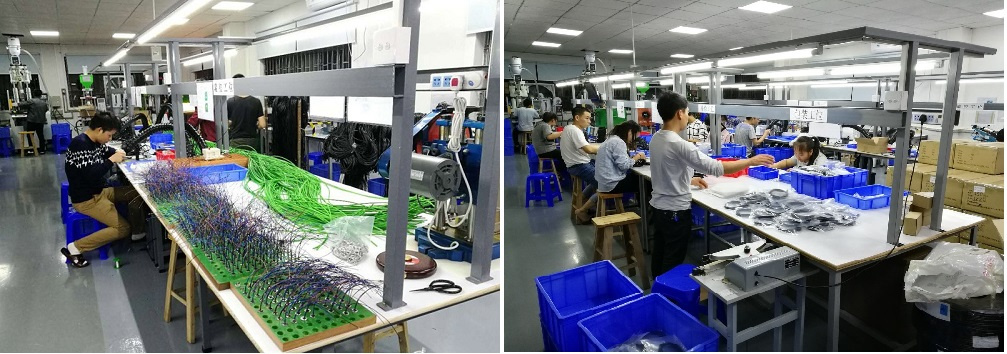

Workshop
8. Product packaging(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available(4) Delivery: 1~ 3 weeks
9.FAQ(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.
(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.
(5) Q:Sample lead time?
A:2-4 workdays
(6) Q: Volume order lead time?
A:3-10 workdays
(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

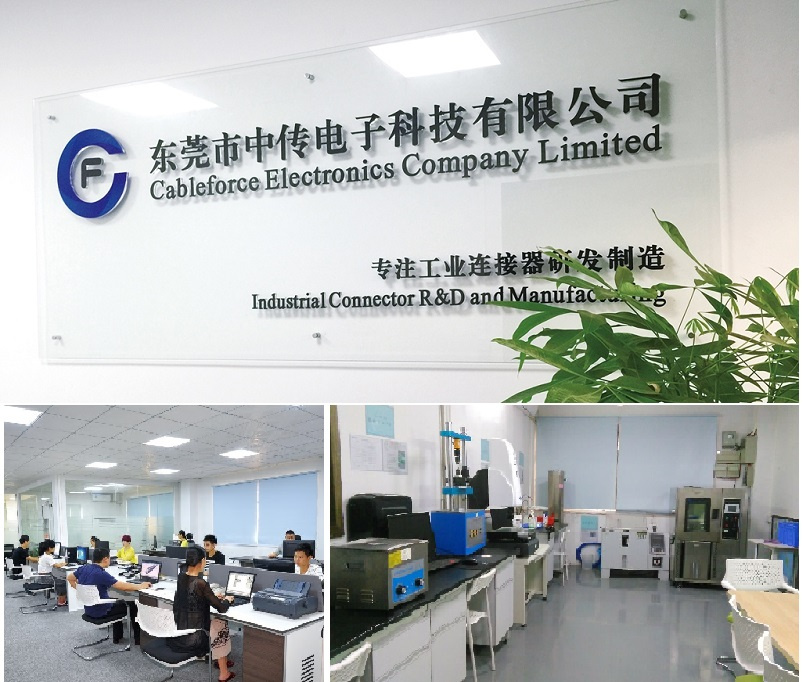

Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

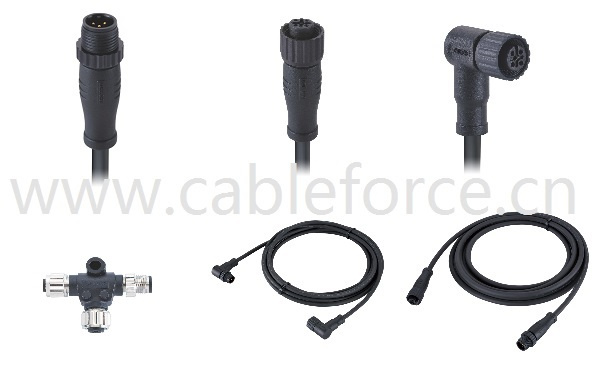

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
