| Prod Model: |
Green Star Series 1K-3Kva |
| Display: |
LED/LCD Indicators |
| UPS Type: |
Rack Mount Type |
| Warranty: |
12 Months |
| Frequency: |
50Hz/60Hz |
| Color: |
Black |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Brand: |
Upsen or OEM |
Product Description

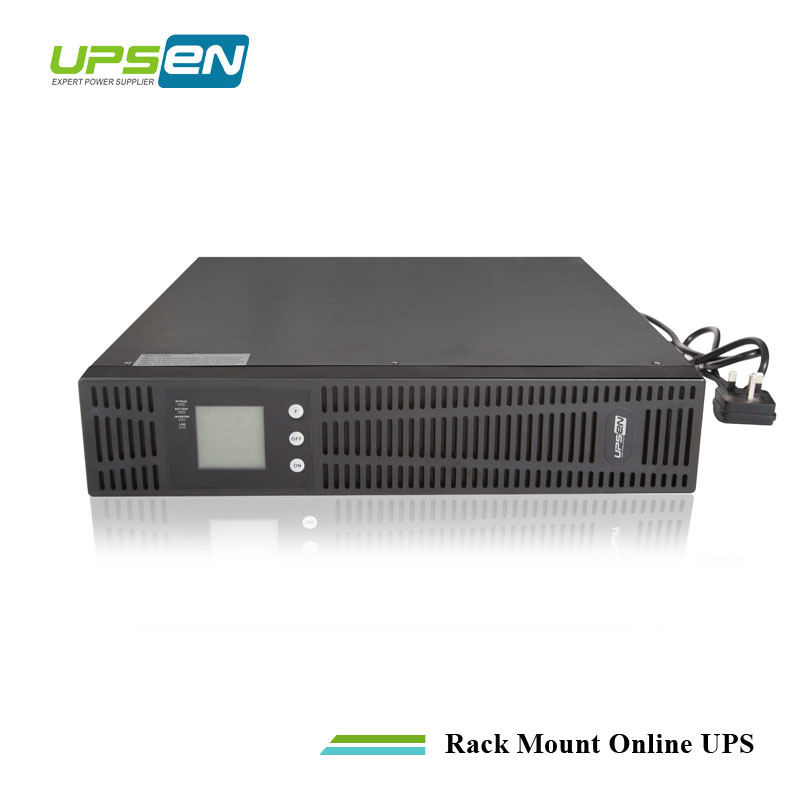

No break Double Conversion Single Phase Online UPS with Smart Snmp
Key Features:1:Full digital control (DSP)
2:Rack Mount - Tower Convertible
3:Automatic battery charging in UPS off mode
4:Input neutral and live wires reverse detection
5:Protection against all types of power problems
6:Adjustable charging current via LCD or software
7:Diverse options of accessories, intelligent management
8:High frequency and double conversion online technology
9:Automatic startup function, Long-term type power design
10:Allowable start UPS by cold start or direct current start
11:With ECO (economic operation mode) can be highly efficient energy-saving, reduce user costs
12:Active Input Power Factor Correction (PFC), UPS can correct the input power factor. Under full load, the input power factor can reach over 0.95 so that the electric environment of the users will not be polluted.
ApplicationsServers, Military,Medical Systems,Network sensitive electronic equipment,Electronic,Telecom
,communication,water pump,microwave oven,squeezer,air-condition,fridge,Wind Power System etc.
Technical Specification
MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W |
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac |
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) |
| Frequency | 40 ~ 60 Hz |
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) |
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) |
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A |
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz |
| Power Factor | 0.8 lag |
| Waveform | Sine Wave |
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) |
| Distortion | Linear ≤ 3% when RCD 100% loading (line) |
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to |
| 125%< <150% → 25s | transfer to bypass; >150%, |
| >150% → 300s | 100ms to transfer to bypass |
| Transfer Time | Oms |
| Type of Battery | Sealed lead acid maintenance-free |
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc |
| Working | Operating | 0-40ºC |
| Environment | Temperatures(ºC) |
| | Relative | 0-90(%) |
| | Temperature(ºC) |
| | Altitude | <1500m |
| Communication | 9pin D trpe comector (RS232) |
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 |
| Long Backup Type (2U): 482x450x88 |
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 |
Message Board A letter for youDear customer:
Before sending your preferred inquiry to us, it will be appreciated if you can inform us:
1. The loading power;
2. The input voltage(12v or 24v ......);
3. The output voltage(110v or 220v or 240v);
4. AC Plug style;
5. Order quantity;
Then we can reply you according to your requirements within 24 h
Company Information
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

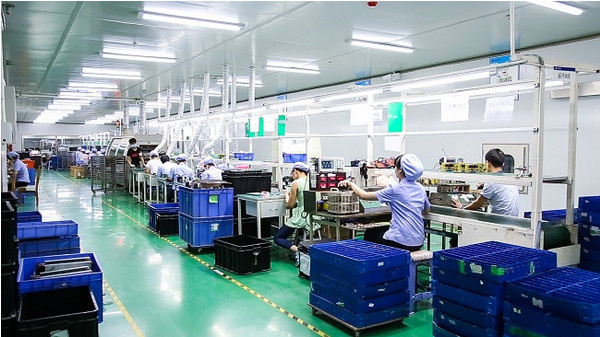

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
