| Prod Model: |
Queen Star Series 6-20Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage, Over Current, Short Circuit |
Product Description

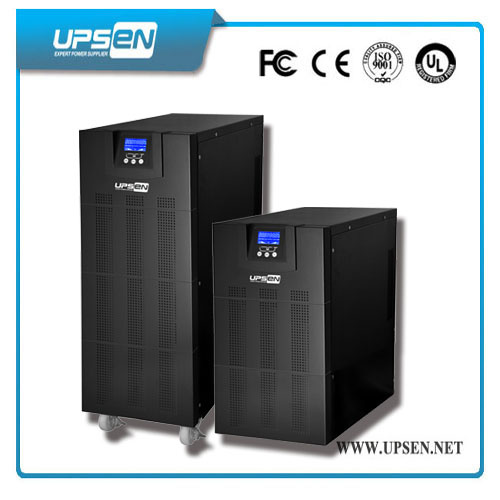

No Break Online UPS Power 6K-20Kva with PFC1: No Break UPS Power with zero transfer time
2: No Break UPS with pure sine wave output
3: No break UPS with digital LCD Screen
4: No break UPS, Online UPS, UPS Power, LCD UPS, Backup UPS, Standby UPS, China UPS
UPS Product Description
Introduction:Queen Star Series Online UPS 6K-20Kva, is of fully of advanced DSP Online HF UPS.
It has high adaptability, performance, compact design and less batteries to reduce your space and installation cost.
UPS Perfect Application
Network, data centre, servers and workstations, control system, communication system, Telecom system, power station, security system, hospital, school, home and office etc.
UPS Main Features
True online double conversion technology, Pure Sine Wave Output
0.8 Output Power Factor, Digital LCD Screen, Zero transfer time
DSP Technology, compact design
Active input power factor correction (PFC)
Protection against all types of power problems
Wide range of input voltage and frequency
Active Load Management, cold start function
Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD environmen monitoring
Equipped with maintenance bypass switch
Generator Supportable
Sealed lead acid, maintenance free battery
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥ 0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode) 50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load < 2% | Line load < 3% |
| Back-up Time | Full Load | ≥ 7 ′ | Depends on external batteries bank's Capacity | ≥ 5 ′ | Depends on external batteries bank's Capacity |
| Half Load | ≥ 20 ′ | ≥ 13 ′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | > 105% 1min, > 120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40 Centi Degree |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |
